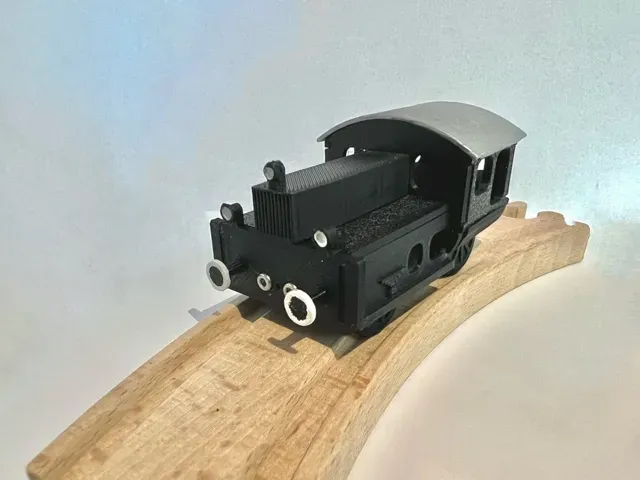

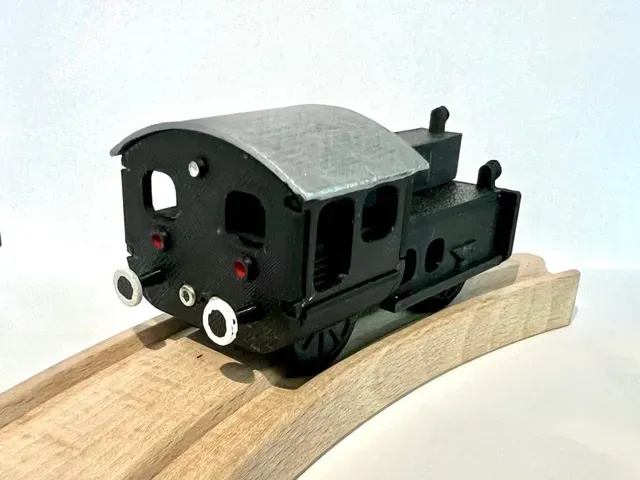

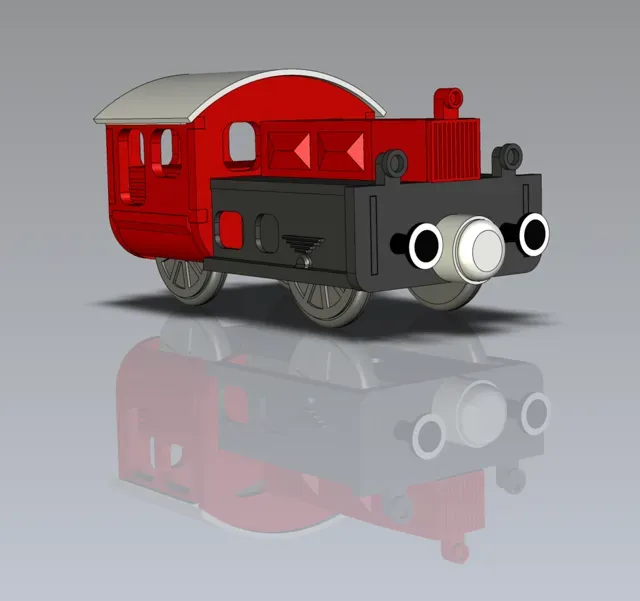

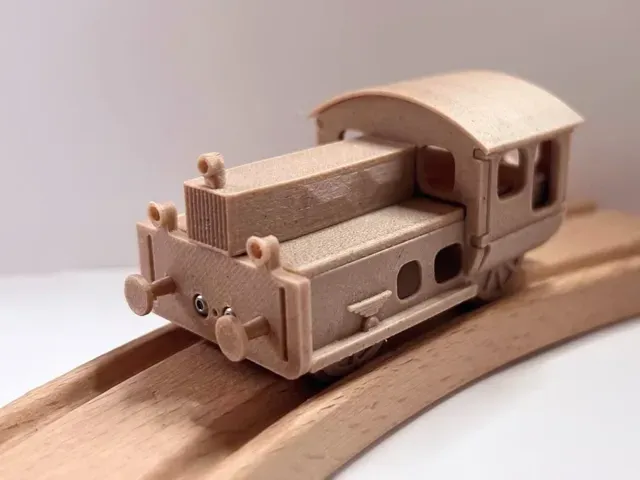

Köf II - Wooden Train - Holzeisenbahn - v2

Köf II version 2 compatible to IKEA, Lidl or Brio wooden train systems.

The whole model can be plugged together and will be fixed with 4 screws: 2x M2x5mm 2x M2x18mm

The wheels can be put in a metal 2mm shaft with a length of 30mm. The wheels wholes may need some drilling, so the shaft is not locking the wheels.

A complete guide how to assemble will follow soon!

Parts:

Operators cap:

- Back: 1x schreinerman-holzeisenbahn-köf2-v2-Führerhaus-Hinten.stl - Front: 1x schreinerman-holzeisenbahn-köf2-v2-Führerhaus-Vorne.stl - Side: 2x schreinerman-holzeisenbahn-köf2-v2-Führerhaus-Seite.stl - Bottom: 1x schreinerman-holzeisenbahn-köf2-v2-Führerhaus-Boden.stl - Top: 1x schreinerman-holzeisenbahn-köf2-v2-Dach.stl Chassis:

- Main: 1x schreinerman-holzeisenbahn-köf2-v2-Fahrgestell.stl - Left: 1x schreinerman-holzeisenbahn-köf2-v2-Trittbrett-links.stl - Right: 1x schreinerman-holzeisenbahn-köf2-v2-Trittbrett-rechts.stl - Fromt: 1x schreinerman-holzeisenbahn-köf2-v2-Front.stl Engine bonnet:

- 1x schreinerman-holzeisenbahn-köf2-v2-Motorhaube.stl Wheels:

- 4x schreinerman-holzeisenbahn-köf2-v2-Rad.stl Bumpers:

- 4x schreinerman-holzeisenbahn-köf2-v2-Puffer.stl

Building instructions: https://holzeisenbahn-schreinerman-de.translate.goog/koef-ii?_x_tr_sl=auto&_x_tr_tl=de&_x_tr_hl=de&_x_tr_pto=wapp

component list (not printed)

4x Zylinderkopfschraube M2 x 5mm

2x Zylinderkopfschraube M2 x 18mm

2x Linsenkopfschraube M2 x 8mm

2x Stahl-Stift / Welle Ø 2mm x 30mm

2x Magnet Ø 6mm x 3mm

component list (3D printed)

1x rear cab

1x front cab

2x cab side

2x cab floor

1x Roof

1x chassis

1x running board left

1x running board right

1x Front

1x hood

4x Rad

4x Puffer

2x Magnetkappe

assembly instructions

Step 1

Screw the front to the chassis with 2x countersunk screws M2 x 5mm

Step 2

Screw the hood to the chassis with 2x countersunk screws M2 x 18mm

Step 3

Insert a shaft Ø 2mm x 30mm through the chassis. One option for the shaft is 2 mm welding wire cut to 30 mm. 30 mm rods with Ø 2 mm are also available from Amazon: https://www.amazon.de/dp/B00LUT2M6U
