Roan stroller cup/bottle holder

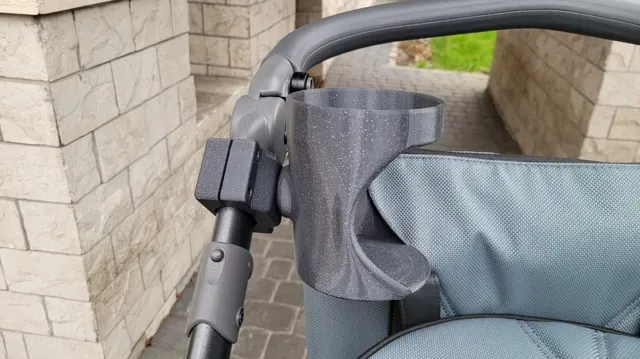

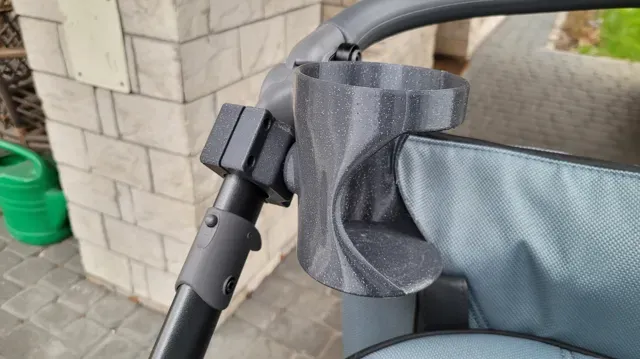

A sturdy cup holder that allows you to bring coffee to adventures with your young one. The cup holder attaches to the mount using a thumb screw so can be removed and reattached it without use of a screwdriver. The mounting angle can also be adjusted very easily. Seems to be quite resilient as we've been daily driving it for the past 2 month without any signs of wear.

Designed for my Roan Bass Next stroller, it should fit most other Roan strollers as well but I haven't tested it. Might work with other brands as well. I've included the Fusion 360 files in case someone want to redesign the mounting mechanism to fit their baby carriage.

Parts required

- 1x M6x20/25 screw - 1x M6 nut - 4x M3 screws (any with length of between 10 and 20 mm should do fine) - 4x M3 brass threaded inserts (I've used M3x6x4.5 but you can use any that can be pressed into a hole with a diameter of 4.2mm) The model consists of 4 parts:

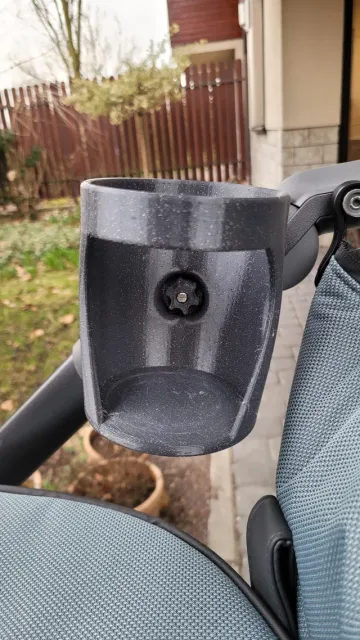

- Mount A & B - attached to each other and baby carriage using M3 screws and threaded inserts - Cup Holder - Nut - a plastic frame printed around the M3 nut, attaches the cup holder to the mount Printing

All parts are structural so I recommend using PETG with high infill (I went for 100%). I printed everything using 0.6mm nozzle and 0.35 SPEED PrusaSlicer preset.

The Cup Holder itself needs supports, organic ones on build plate only should give you the best results.

The M3 nut needs to be inserted into the Nut part mid-print so you need set the pause print breakpoint at the last layer of the gap.

Assembly

- Heat-press the threaded inserts into Mount B. - Insert the M6 screw into Mount A . - Attach Mount A and Mount B to the carriage and each other using M3 screws. You can decide to mount them in a way that the M6 screw is facing inward or outward, depending where you want the cup holder to be on your stroller. - Attach Cup holder to the mount using the Nut . Make sure to adjust the angle while tightening the nut. - Take your baby for a walk while enjoying a cup of coffee! Mount versions

There are 2 mount versions included:

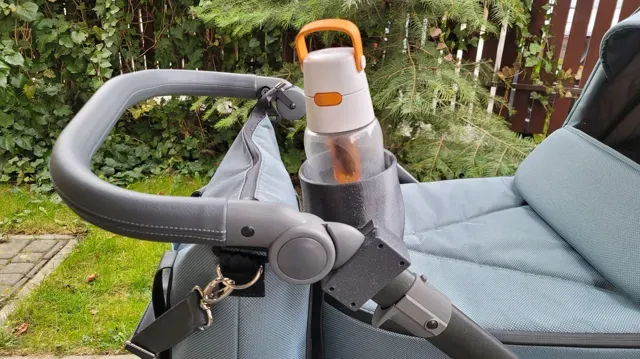

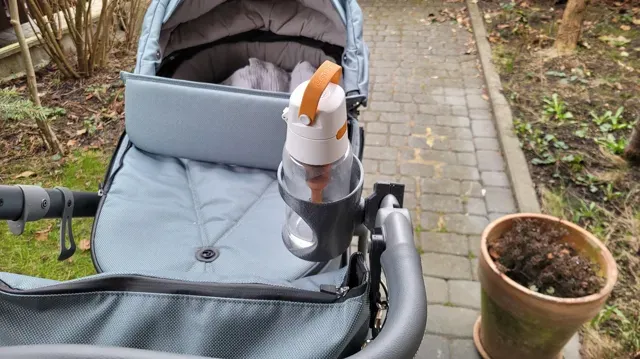

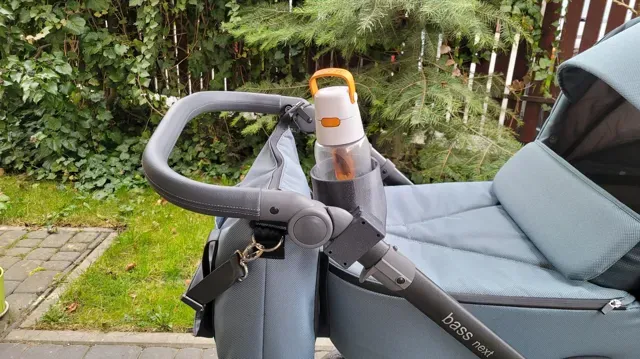

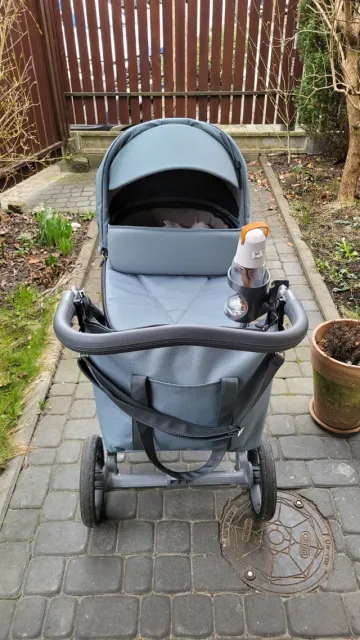

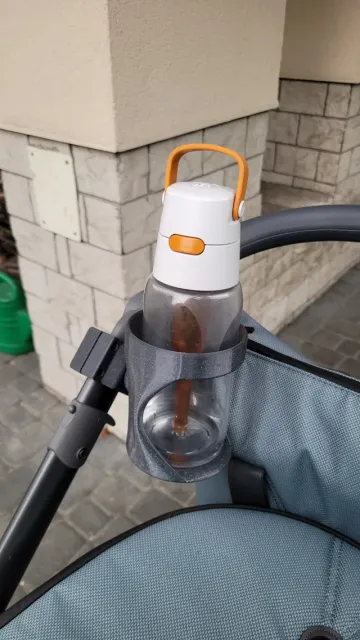

- V1: Lower frame mount (shown in the picture): assambled using M3 screws. - V2: Handle mount: a newer more durable design. It has holes for 4 heated brass inserts M3 x 6 mm x 4.5 mm (height x outer diameter). I've used M3x14 screws to attach both parts but longer should work as well. Updates

2025-04-06: Added an alternative mount version to attach the cup holder to the handle of the stroller rather than the frame.
