Honeycomb storage wall (HWS) gridfinity shelves

About: Want to attach your existing gridfinity bins to your honeycomb storage wall (HSW) or just use the existing containers you already printed? This is just the right solution for you. Just download some HWS multiconnect connector , connect it to your board and then mount the shelves onto that. The connectors allow for easy removal if you want to change anything.

I also do include all the necessary STEP files to change the models yourself, for example if you want to use different sizes.

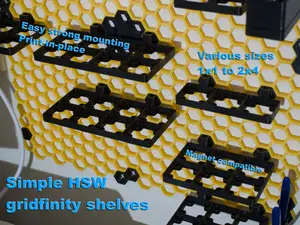

How to use: You will need at least one HSW multiconnect connector for each edge of the shelve, but may use as many as you like. Connect those to the honeycomb storage wall, then just slide the shelve over all the connectors. The shelve should “click” in when pushed down.

If you want to remove a shelve just push it up again. You may then reconnect to any other connectors.

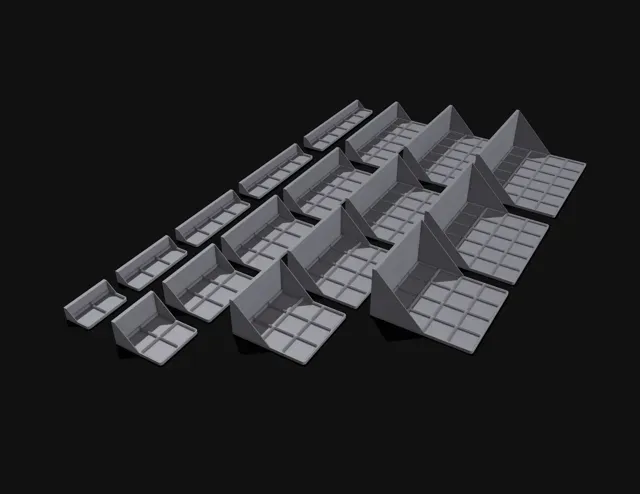

About sizes: The shelves are named XxY where X is the width and Y is the depth in gridfinity dimensions. So the shelve size has to be multiplied by the gridfinity grid size of 42mm plus will have a padding of 3mm on each side. This means when a gridfinify shelve is named “2x1” it is 82mm + 3mm wide and 42mm + 3 mm deep. The height depends on what gridfinity containers you are using.

Grid differences in detail: Gridfinity and the honeycomb storage wall (HSW) are basically completely incompatible when it comes to their used grid system. While HSW uses a 40.876mm grid gridfinity uses a 42mm grid). This means the gridfinity bins (/shelves) will never match the HSW grid. For me this is fine, but I think this is worth noting to you. This means you may have to have spacer holes in between two shelves.

Credits to @RostaP for creating the honeycomb storage wall .
