Small spool for filament sample (200g)

Boost Me Do you like this model and is it functional and useful? BOOST ME :) NEW VERSION OF SPOOL → https://makerworld.com/models/958404

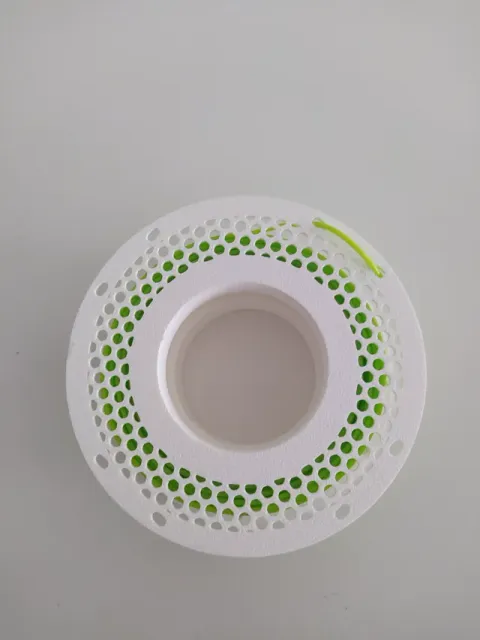

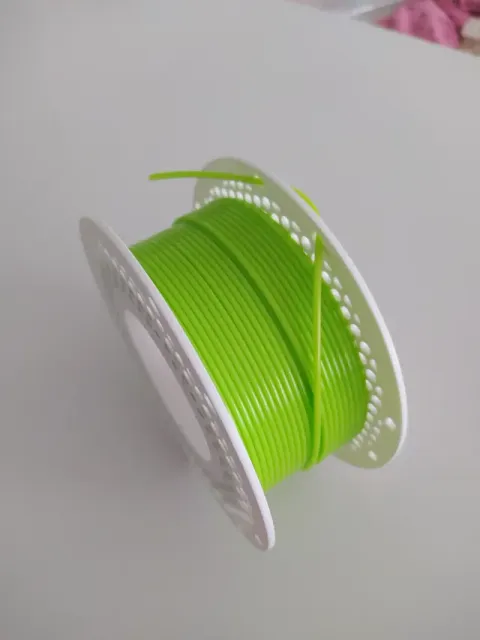

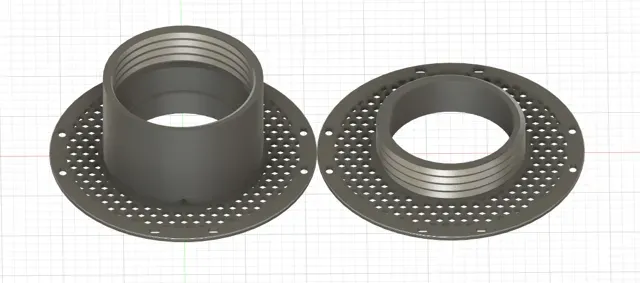

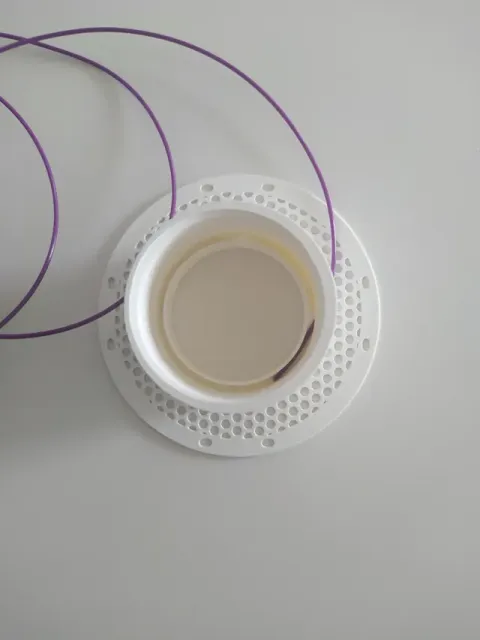

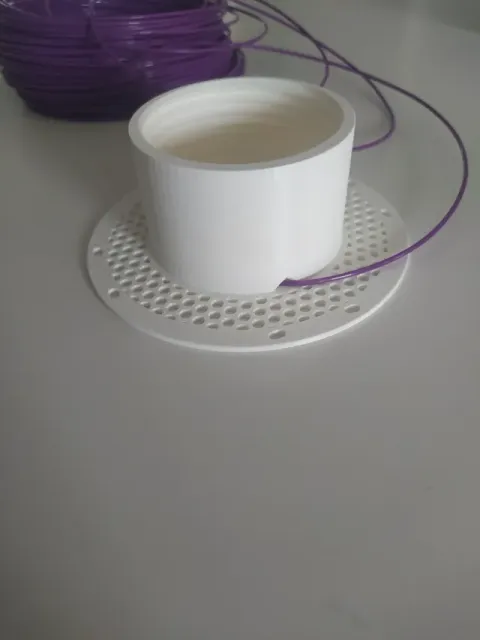

This filament spool model, designed for 200g filament samples, is an ideal solution for 3D printing enthusiasts looking to save space and material. The spool consists of two parts that can be easily screwed together using a threaded connection. The spool includes cutouts that allow you to insert the filament's start before winding and securely hold the end after winding, preventing the filament from unwinding on its own.

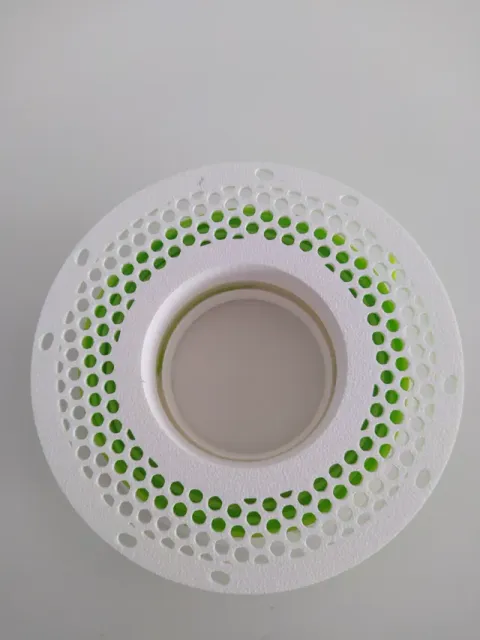

The honeycomb pattern strengthens the spool while significantly reducing the amount of material needed for printing. It's fully compatible with the AMS Lite system, making it versatile for various setups. Due to its small size, it’s space-efficient and easy to store.

- 110 mm outer diameter, - 52 mm hole for the handle, - 66 mm diameter for the filament winding area. - 40 mm width  for the filament winding area Here is Dry Box with silica gel for this spools! → https://makerworld.com/en/models/1126055#profileId-1125394

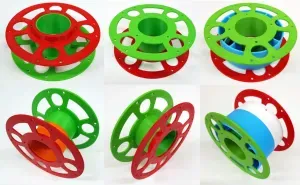

Other versions:

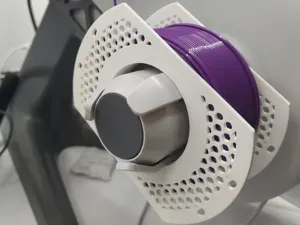

Small spool for filament sample (200g) Small spool for filament sample (200g) Cut off Small spool for filament sample (100g) Small spool for filament sample (100g) Cut off
