Harry Potter Wand (Retractable) v1.7

If you want a commercial license, join my Commercial license club.

Membership If you want a commercial license, join my Commercial license club.

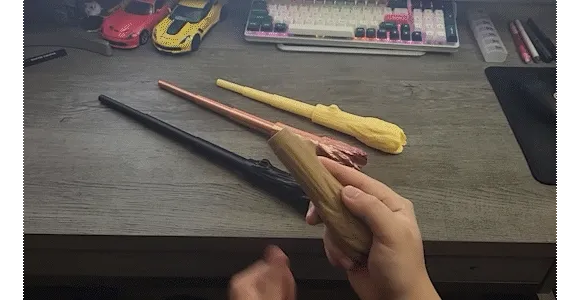

I am here to introduce you, retractable wand! I think it will be a great addition Ornaments for Christmas and in coming holiday season. Bring some magic and best wishes to you all! Have fun, and happy holiday.

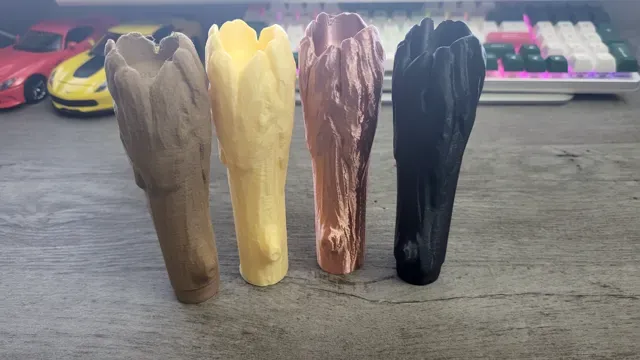

It has a wood looking base, and all the components retracting smoothly from the base. It is very simple to printing and reletively fast. total of 58g of filaments and 2h30m printing time. No support needed.

If you like other wand design:

Dragon wand:

https://makerworld.com/en/models/135043#profileId-146518

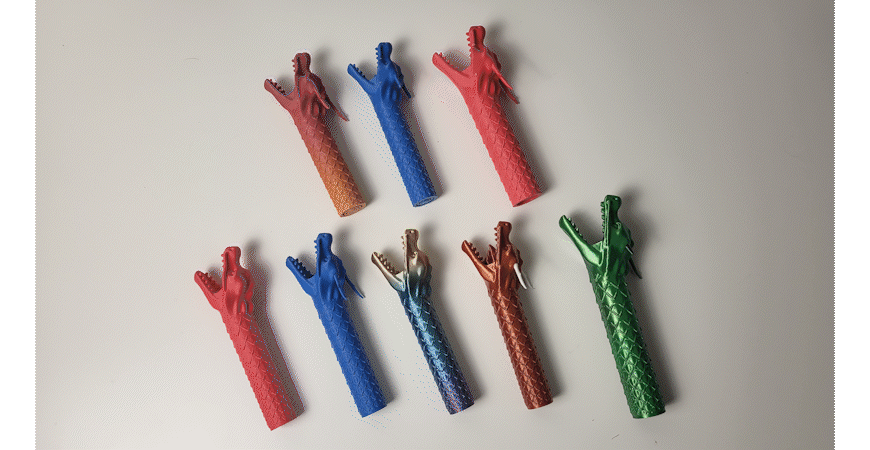

Loong wand:

https://makerworld.com/en/models/143028#profileId-155486

Update: Revision v1.7, update later. I need to go to sleep. :)

Improved some detail finish out exterior.

Improved interlocking mechanism.

This is reversion v1.5 I made many test print - revise -test print - continuous improvement process, there are many hours of work behind the scenes to make this model. If you like it, let me know on the comment setction below.

I will design a HOLDER for this later, or you can simple just place like this.

Printing suggestions:

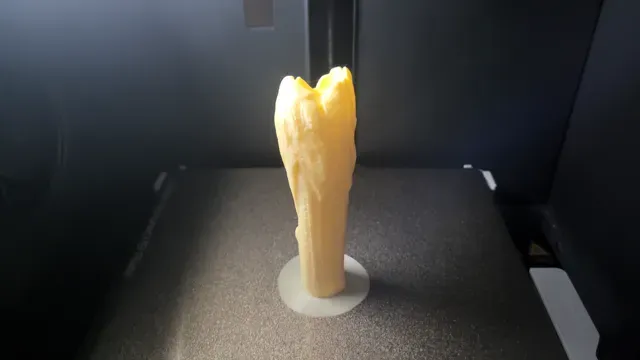

When you printing done, you can push down the rod to release it from birm:

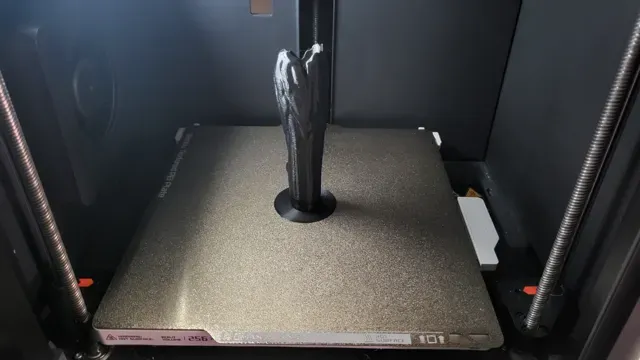

Make sure you use brim and increase brim to 15mm, at the same time I suggest to change the brim gap to 0. So it will ensure it will print successfully.

If you are printing with WOOD filament, make sure you use 0.6mm nozzle and reduce the flow rate to 0.9. Other wise you may will have issue the filament clog within the nozzle, happened to me... Sad story. Also, wood filament may over extruding and cuse parts not fully extend, make sure you calibrate it!!! If the filament you use shinks a lot, parts might slide out. Pay attention.

Design:

So, my first retractable design is Bamboo sword. It is fun to play.

Showed it to my boss, and she didn't like the noise when I play it. She said it would be cool if I can design something like Wand. I said, okay. Because she is boss so I have agree whatever she said. I started searching how the heck a wand that she like looks like and get some idea of it. At the mean time, I was trying use similar retractable mechanism from Bamboo Sword design. Eventually, I found the wand style that she like, (credit to Arcan Matteo). So I designed the similar organic look. and it looks very rough, my organic design is not that good. So I started working on retractable mechanism, my boss mentioned she want the wand to be short. So there are a lot of parameters need to be change from larger size one.

Since the fundamental of retractable mechanism is all about interlocking, with smaller object, the interlocking mechanism design is going to be very ticky.

Spend a few hour get design done and first prototype done. But having issue pree parts back on. Tired different filaments, silk and those with greater sinkage rate filament works better, but still stuck sometimes.

Went back to the CAD changed the parameter dims, tried different locking mechanism, run the test print, and make revision again.

Some different interlocking I have try on this model, FYI, if you want to design something similar.

The most center one have more solid/infill when you printing, is trying to be heavier so when you play it, it will carry more momentum to carry rest of of the parts out. Not much weight increased, but better than none.

Some of the fialure one during design, interesting thing during RnD, since this wand have such little size, ther interlock partS will be greatly effect by 0.1mm to 0.2mm parameter differences.(10mm OD good, 10.2mm OD part fly out, or stuck.) So, YOU KNOW HOW I WENT TO THE RABBIT HOLE.

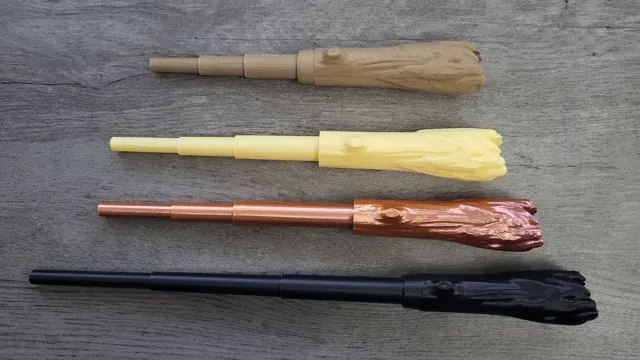

Here are some of the Okay revisions, but some parts will stuck and hard to press back. I have spend over 20 + prints and trying find out the best tolerance, because I don't want to just post a model out, I want something to meet my standard.

So, if you get mad of one failure print on your side, looks those failure testing and my hours behind the scene.

I think not only my time, but my bambu printer and filaments desired a thanks, lol.

Anyhow.

Have fun!!
