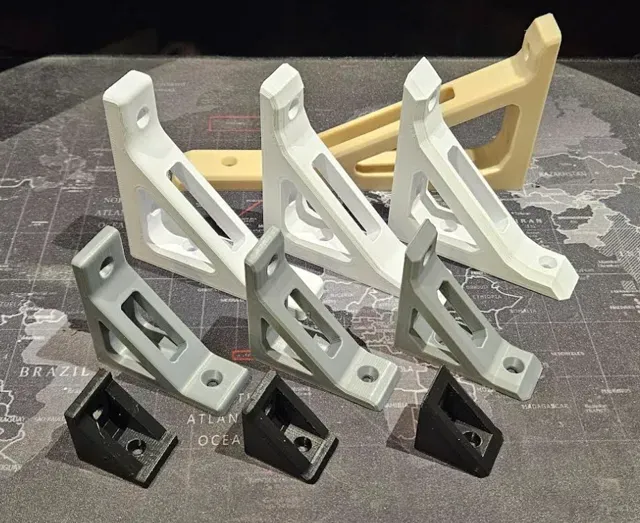

Any Size Parametric 90 Degree Shelf Bracket / Corner Bracket. Imperial & metric!

Boost Me If you like my model, I would appreciate it if you could click on 'Boost Me'

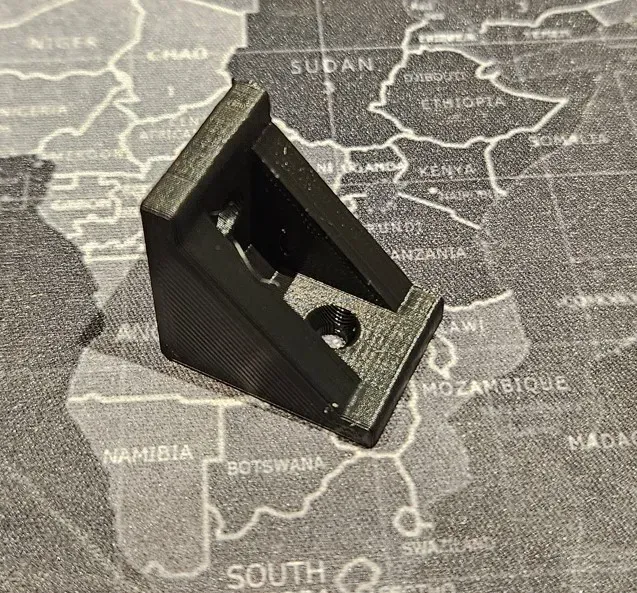

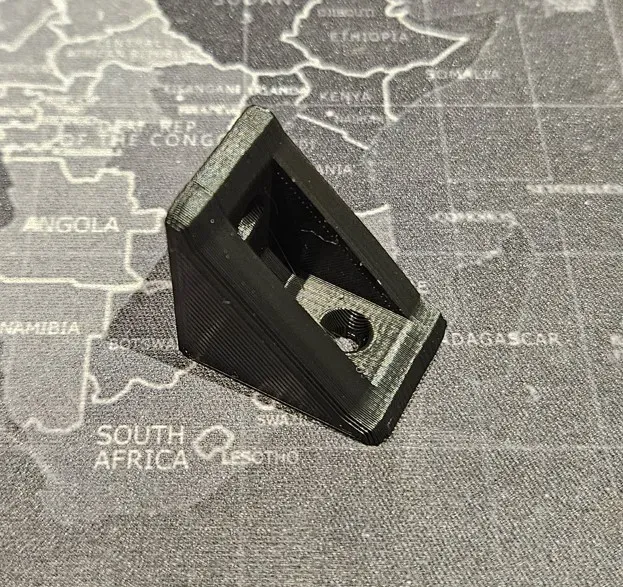

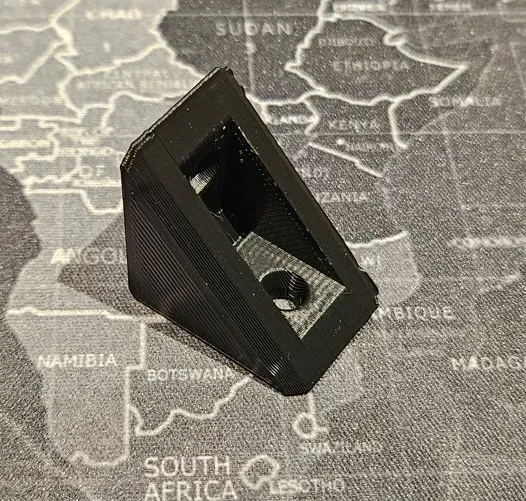

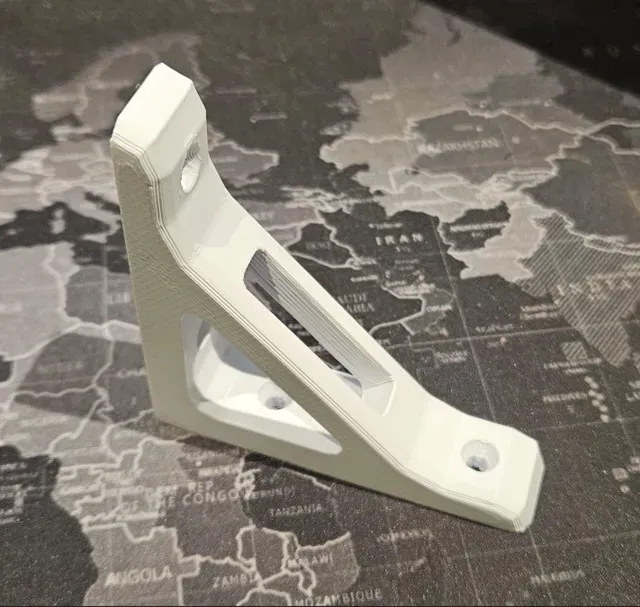

This is a simple yet versatile parametric 90 degree bracket. This bracket can be re-sized for virtually any need via the OpenSCAD parameters. The bracket can also be set to 3 different styles; Normal Bevel, Low Poly, and Extra Low Poly.

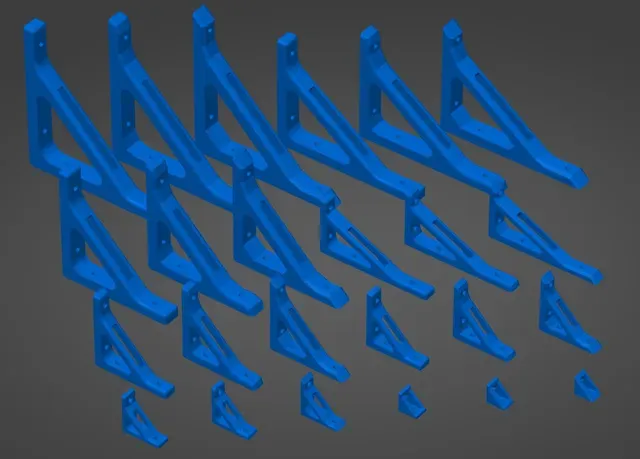

I have pre-generated STLs for a set of imperial sizes from 1x1 to 8x8 inches that use #4, #6, or #8 screws. See the table below for the sizes and screw placements/measurements.

If you want to create a custom size, I have uploaded the OpenSCAD file that you can use to change the parameters. You can modify the height, length, width, screw hole placement and size, screw head size, and poly style, and more. I have also uploaded the .json file(as a txt file in the documentation section) that contains the settings for the pre-generated STLs listed below.

NOTE: The OpenSCAD file is not perfect :-/ Sorry, but it take too much time to be perfect. If you make a setting too big or too small you might get something that doesn't even look like a bracket. However, you can use the settings in the .json( 90DegreeBracket.txt ) file as a starting point. I needed to upload this as a txt file, so to use it, you'll need to rename it to 90DegreeBracket.json if you want the “Parameters” tab to display in OpenSCAD (or just look at it and use MakerWorld's built in customizer).

NOTE #2: Yes, I know the normal bevel style takes a looooooonnnnnnnggg time to render(like 5 minute sometimes) :-(. Sadly OpenSCAD has some mesh issues sometimes, so I needed to use a very large polygon count to get everything to line up correctly :-/. I'll try to fix the rendering time later after I make a few other enhancements.

Printing

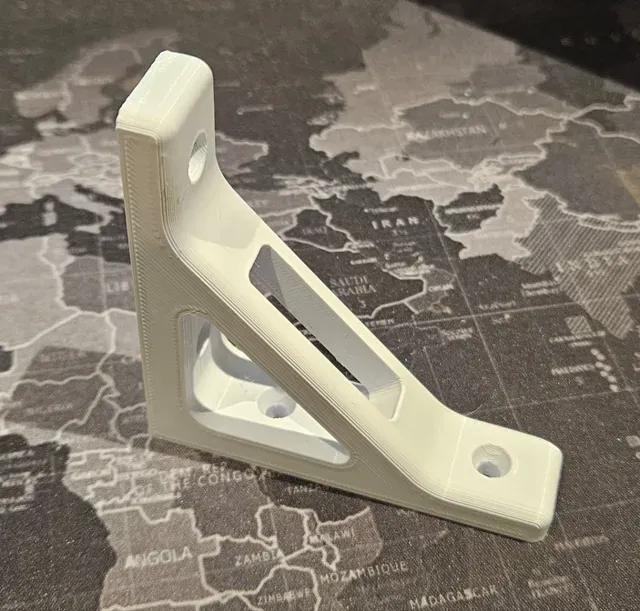

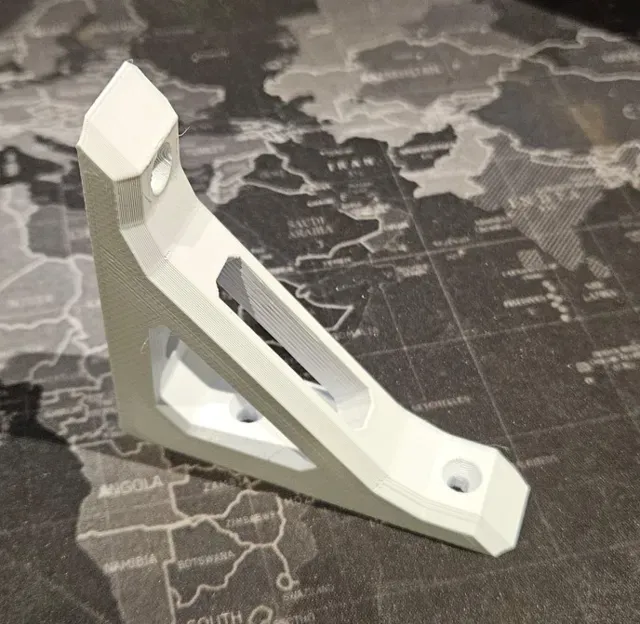

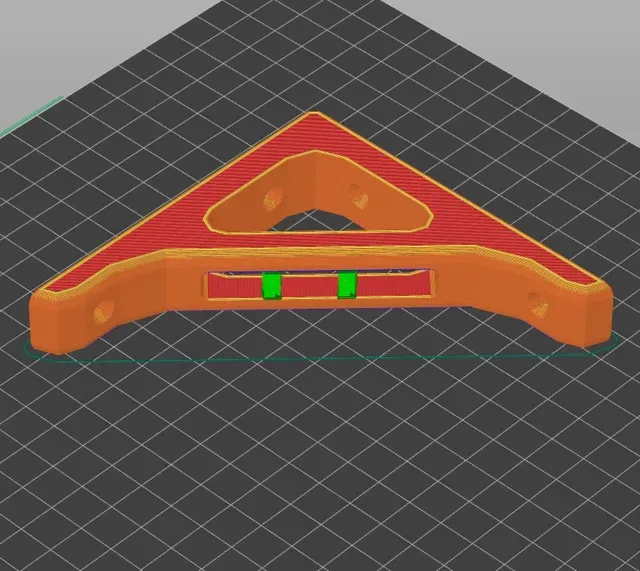

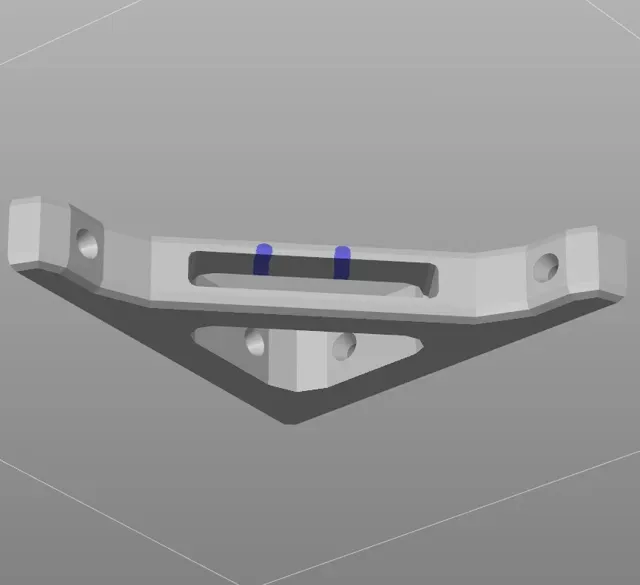

I recommend printing these flat with a few paint on supports inside the screw access slot in the angle support. See images for an example.

Otherwise, use your discretion on fill and perimeters depending on how strong you need them to be.

Pre-Generated STLs

Imperial

Bracket Size Bracket Width Styles Screw Size Screw 1 Placement Screw 2 Placement

1x1 Inch ¾ inch Normal Bevel, Low Poly, Extra Low Poly #4 or #6 5/8 inch None

2x2 Inch ¾ inch Normal Bevel, Low Poly, Extra Low Poly #4 or #6 5/8 inch 1 5/8 inch

3x3 Inch ¾ inch Normal Bevel, Low Poly, Extra Low Poly #4 or #6 7/8 inch 2 ½ inch

3x6 Inch ¾ inch Normal Bevel, Low Poly, Extra Low Poly #4 or #6 3 inch side: 7/8 inch

6 inch side: 1 ¾ inch

3 inch side: 2 ½ inch

6 inch side: 5 inch

4x4 Inch ¾ inch Normal Bevel, Low Poly, Extra Low Poly #6 1 inch 3 3/8 inch

6x6 Inch 1 inch Normal Bevel, Low Poly, Extra Low Poly #6 or #8 1 ½ inch 5 inch

6x8 Inch 1 inch Normal Bevel, Low Poly, Extra Low Poly #6 or #8 6 inch side: 1 ½ inch

8 inch side: 2 inch

6 inch side: 5 ¼ inch

8 inch side: 7 inch

8x8 Inch 1 inch Normal Bevel, Low Poly, Extra Low Poly #8 2 inch 7 inch

Metric

Bracket Size Bracket Width Styles Screw Size Screw 1 Placement Screw 2 Placement

20x20 mm 20 mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 12 mm None

20x40 mm 20mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 20 mm side: 12 mm

40 mm side: 24 mm

None

30x30 mm 20 mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 10mm 22 mm

40x40 mm 20 mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 15 mm 32 mm

40x60 mm 20 mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 40 mm side: 14 mm

60 mm side: 21 mm

40 mm side: 30 mm

60 mm side: 45 mm

60x60 mm 20 mm Normal Bevel, Low Poly, Extra Low Poly M3 or M4 20 mm 50 mm

Руководства и профили печати

Профили печати и шаги

2 - 2x2x0.75 Inch-Normal-Num6 Screw-Best Print Orientation Qty=2.

Since you should always need at least 2 brackets…

This print profile prints 2, “2x2x0.75 Normal 90 Degree Brackets” in the strongest possible print orientation.

2 - 1x1x0.75 Inch-Normal-Num4 Screw-Best Print Orientation Since you should always need at least 2 brackets…

This print profile prints 2 “1x1x0.75 Normal 90 Degree Brackets” in the strongest possible print orientation.

2 - 6x6x1 Inch-Normal-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “6x6x1 Normal 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 4 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 3x3x0.75 Inch-Low Poly-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “3x3x0.75 Low Poly 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 1 small tree/organic support on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 3x6x0.75 Inch-Normal-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “3x6x0.75 Normal 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 3 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 4x4x0.75 Inch-Low Poly-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “4x4x0.75 Low Poly 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 3 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

1 - 8x8x1 Inch-Normal-Num8 Screw-Best Print Orientation Qty=1.

This print profile prints 1, “8x8x1 Inch Normal 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 3 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

1 - 6x8x1 Inch-Normal-Num6 Screw-Best Print Orientation Qty=1.

This print profile prints 1, “6x8x1 Normal 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 4 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 20x20x20 mm-Normal-M4 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “20x20x20mm - Normal - M4 Screw 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height

2 - 30x30x20 mm-Normal-M4 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “30x30x20mm - Normal - M4 Screw 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height

2 - 60x60x20 mm-Normal-M4 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “60x60x20mm - Normal - M4 Screw 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 1 small tree/organic support on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 4x4x0.75 Inch-Normal-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “4x4x0.75 Normal 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 3 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 3x6x0.75 Inch-Low Poly-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “3x6x0.75 Low Poly 90 Degree Brackets” in the strongest possible print orientation.

- 6 wall layers - 40% cubic fill - 0.2 Layer Height - You'll need to remove 3 small tree/organic supports on each bracket, but for the most part they just twist off w/ minimal cleanup.

2 - 3x3x0.75 Inch-Normal-Num6 Screw-Best Print Orientation Qty=2. Since you should always need at least 2 brackets…

This print profile prints 2, “3x3x0.75 Normal 90 Degree Brackets” in the strongest possible print orientation.
