Halloween Bracelet and Necklace Beads

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 145 Лайки
  • 82 Загрузки
  • 45 Напечатали
  • 360 В подборках
  • 1 Бусты
  • 0 Комментарии
  • 0 Просмотры

Эта модель на других площадках

Автор:mystoopidstuff

Опубликована

Описание

Please keep these out of reach of children and pets, there are small and pointy parts, which could be a choking hazard.

Some of the beads may have rough edges when printed, often due to supports, so they should be sanded if necessary. If you print or make these, it is at your own risk.

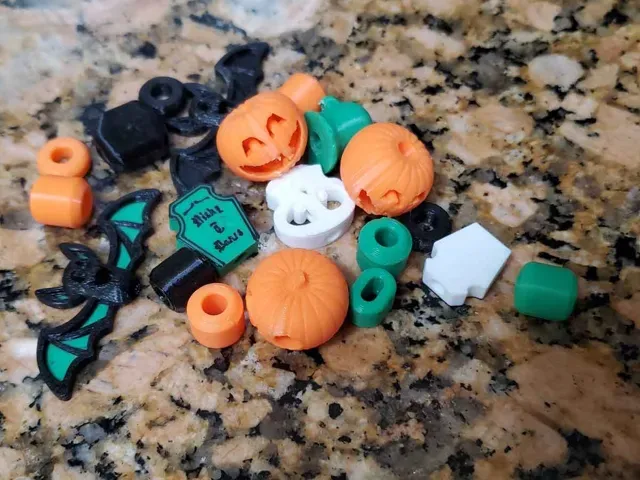

These are some beads for making Halloween bracelets or necklaces (and probably other stuff too). They are designed with an approx 6-7mm hole if printed at 100% scale. I printed them to use with a 3mm shock cord , and for that size, I suggest scaling to between 60-85% (see below for specifics). A Bambu Studio 3MF is included, which has 5 plates, including two multicolor plates. Each plate has two sets of beads, one set (below) is the standard 100% scaled size, and the set above are scaled to fit 3mm shock cord. Just remove what is not needed. The generic beads should be printed at 100% for 3mm shock cord, though you can also scale those if you prefer.

Printing:

For 3mm shock cord the following scaling factors are suggested (these are already set up in the 3MF profile):

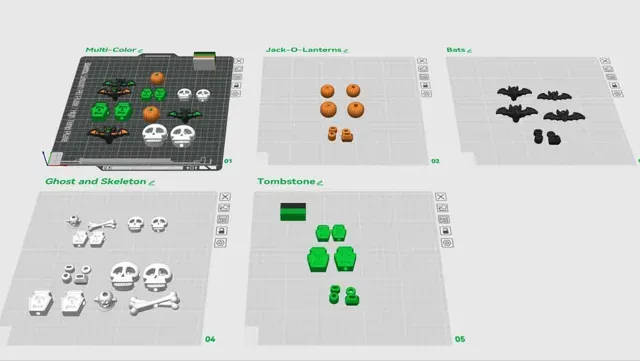

- Bat beads = 85% - Jack-O-Lantern Beads = 85% - Tombstone Beads = 70% - Skull Beads = 60% - Ghost Beads = 70% - Bones Beads = 60% The 3MF profile is set up with painted supports, which are only needed on the Ghost and the Jack-O-Lantern Beads, however, if you do not use the profile, those should be printed with supports (tree supports are best). The plates are set up with all the options for each bead. For example, the Jack-O-Lantern plate has a horizontal and vertical hole version on the same plate, along with the same parts scaled. This was done to provide all the options, with the idea that anything not wanted could be deleted, and anything that is wanted could be cloned to make more copies. P LEASE REMOVE ANY UNWANTED MODELS FROM THE PLATES BEFORE PRINTING.

If you print these using the raw STL's, you will need to load any models with a “PART A” and “PART B” together in the slicer, and then answer “yes” when asked if they should be loaded as one object with multiple parts.

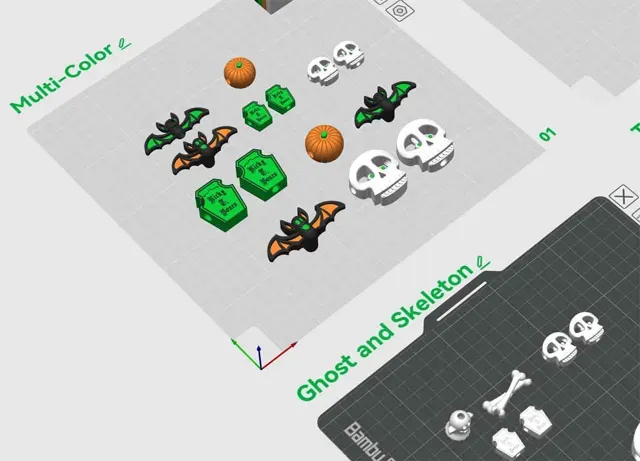

I set up a multicolor profile using the models, however I did not print the full plate as it is set up in the profile, instead I printed some of the multicolor parts separately during testing. The multicolor plate should work fine though, but it is a long print, and any unwanted models should be removed to cut down the print time. Feedback is welcome.

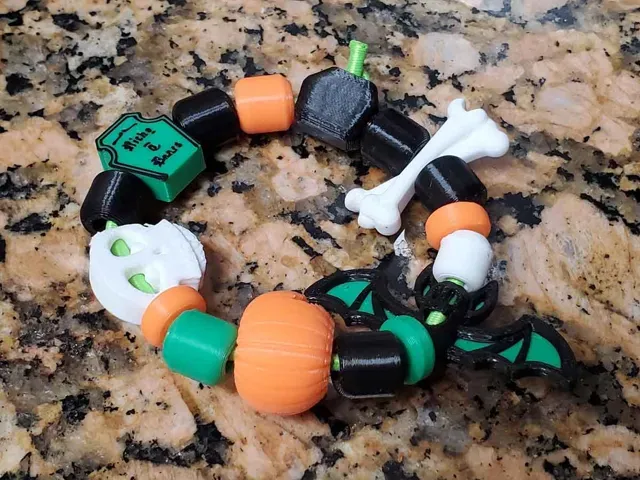

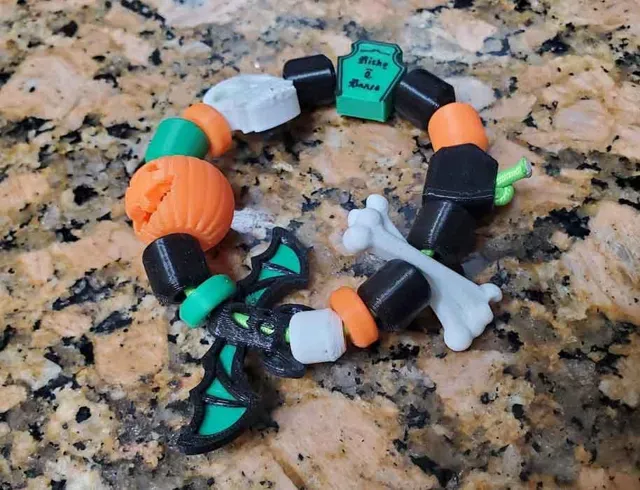

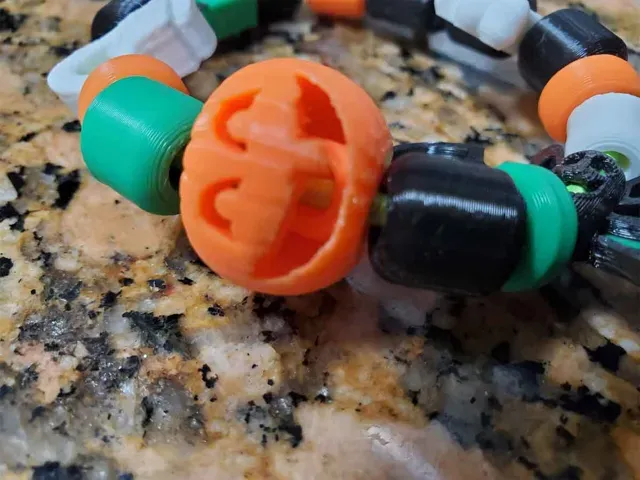

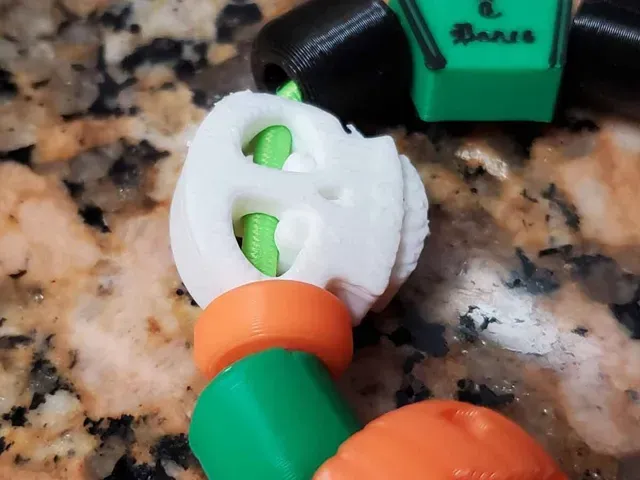

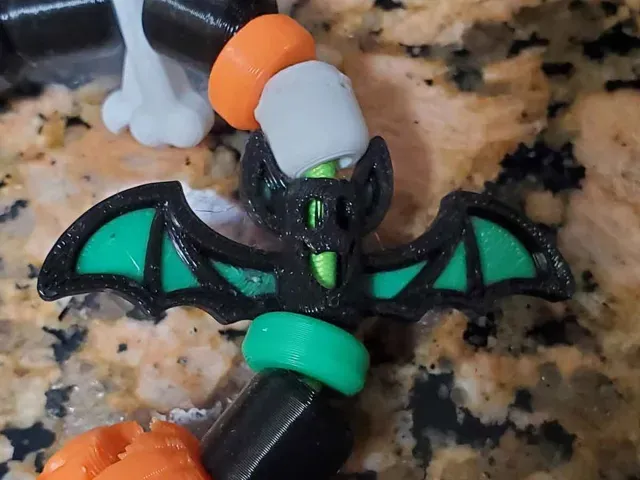

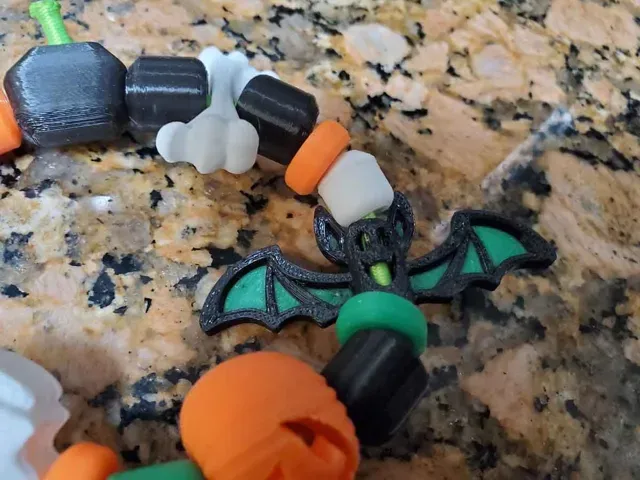

How I assembled the bracelet in the pictures:

To assemble the beads into a bracelet, I first cut the shock cord to an approximate length, at least 4" longer than needed. It helped to tie a loose knot in the end of the cord so it did not pull through the bead during assembly. Next, I threaded one end through the double bead (the one with 2 holes) and left about 2" hanging out of the end. Then I assembled the beads on the cord. Once the bracelet was filled up, I threaded the remaining loose end into the other side of the double bead and finished it with a knot. Finally, the loose ends were trimmed, and I melted them with a lighter, so they don't fray.

Boost Me Thanks for supporting my work! Other Stuff:

If you find these models useful, please post a like or a comment with some pics of your prints.

You can find the other things I'm working on at my blog here . You can also follow me here on MakerWorld , to see what new stuff I post. If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Thanks for looking!

Changelog:

10/26/2024: Uploaded

Руководства и профили печати

Профили печати и шаги

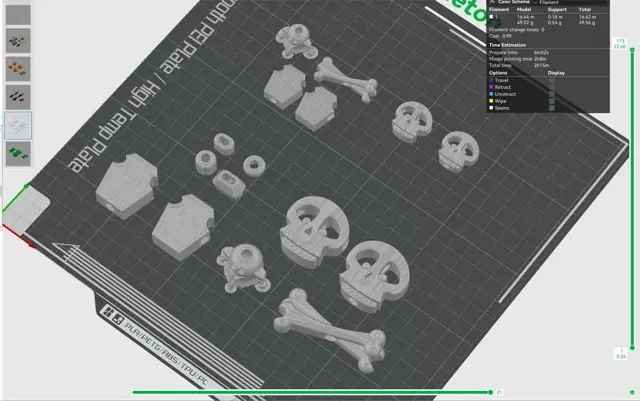

0.2mm layer, 3 walls, 15% infill This is a 5 plate profile, including 2 multicolor plates. It is set up with the following options:

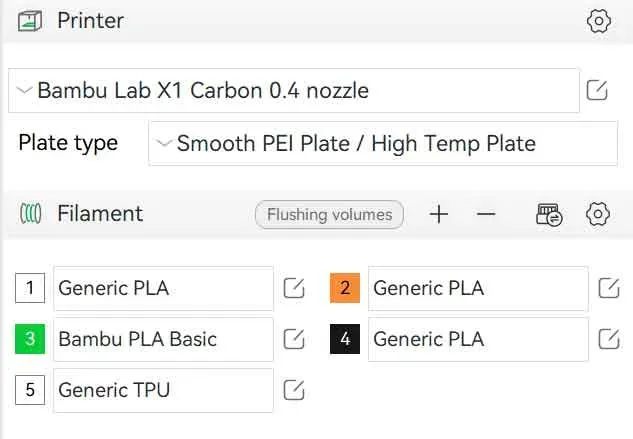

- Arachne wall generator - 3 walls with 15% rectilinear infill (with infill combination) - Painted tree supports where required An AMS is only required if running multicolor plates, see images for the AMS loadout (all are PLA).

Each plate has two sets of models, the upper set are scaled to fit 3mm shock cord. The lower set are not scaled and have an approx 6mm sized hole in each model. Some models have two versions, with a horizontal or vertical hole, please remove any unwanted models prior to printing.

Changelog:

10/26/2024: Uploaded profile.
