Cat Food Lid - Small cans

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 163 Лайки
  • 1 014 Загрузки
  • 863 Напечатали
  • 446 В подборках
  • 45 Бусты
  • 79 Комментарии
  • 0 Просмотры

Автор:ald5096

Опубликована

Описание

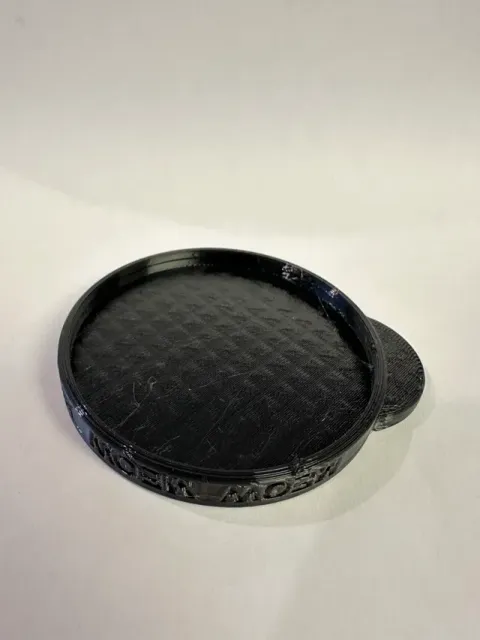

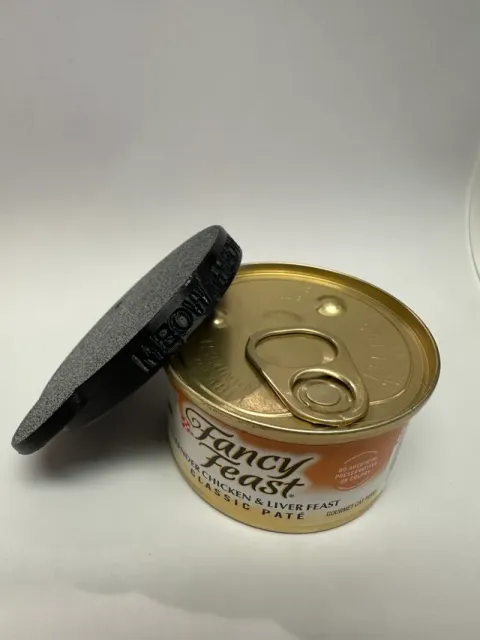

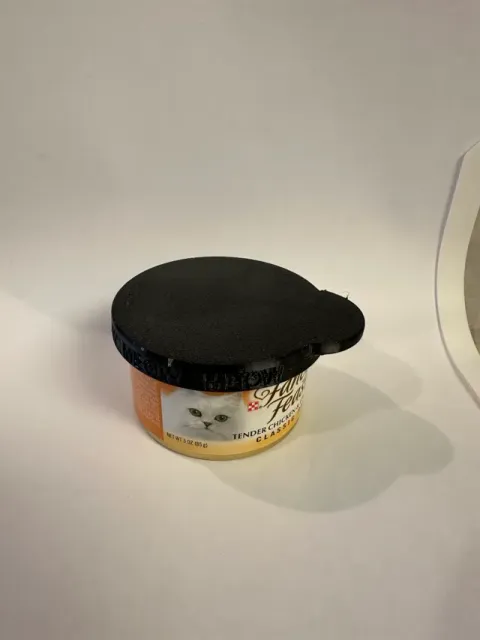

This lid keeps your cats food moist and fresh in the refrigerator without using a separate Tupperware container. Perfect if your cat only eats half a can in the morning and half at night! The only one that I could find at my pet store was made of a hard plastic that while sealing well did not come off easy, so I made my own. Fits small 3oz cans, specifically Fancy Feast cans.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill, HF-TPU 95A, .8 retraction, under 100mm/s speed, 12 max volume flow This must be printed in TPU to easily flex over the can. I used the new BambuLabs HF-TPU 95A. There is no preset from Bambulabs for the HF version of the TPU yet so these are the slicer changes I made (they're probably not perfect):

- modify the filament settings changing max volumetric flow to 12 ( HF version only, regular TPU needs to be much less) - modify retraction length in “Setting Overrides” to .8 - change Speed settings to be under 100mm/s (change First layer infill, Outer wall, Inner wall, Sparse infill, Internal solid infill, Top surface, and Gap infill all to 100mm/s (again regular TPU will be much slower) - In others tab change print sequence to “By object” if printing more than one at a time - also, make sure filament is dry! These settings worked pretty well leaving only a small amount of stringing.

TPU for AMS - 0.2mm layer, 2 walls, 15% infill Just a print profile for TPU for AMS filament.  Works great.
