eSUN eBOX PTFE Tube Adapter

The materials that require drying the most, generally don't work well with the AMS.

Drying them in the eSUN box is great, but then you either have to take the spool out of the box or you will have a piece of filament in the open while printing.

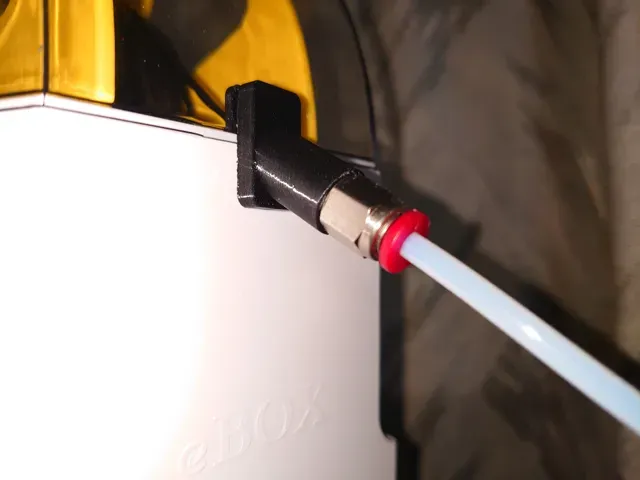

This small adapter secures a 4mm PTFE tube to the eSUN dry box so you can feed it directly into the printer without exposing the filament to the open air.

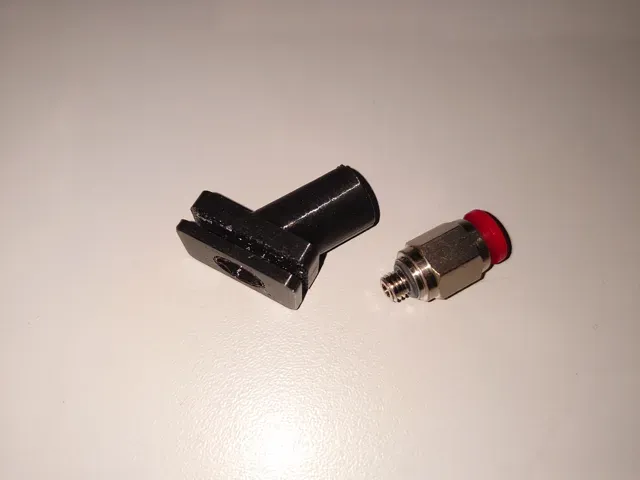

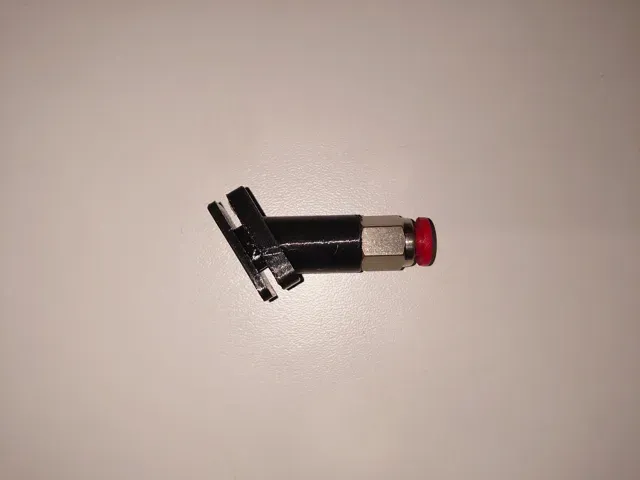

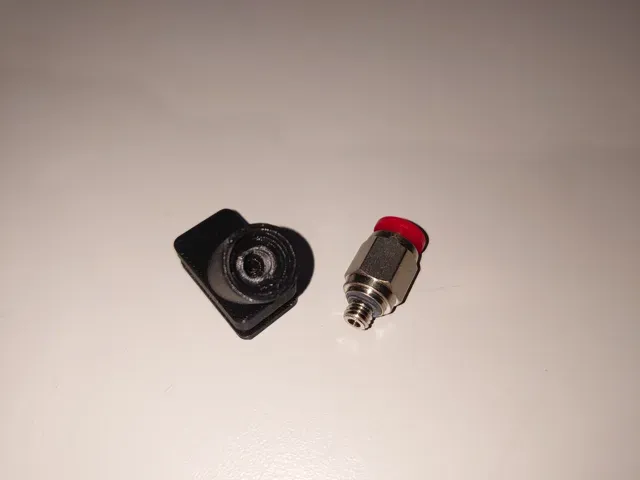

I have used a M5 PTFE Connector…. Why? because I had one lying around…

Depending or where you position the dry box, the adapter can face upwards or downwards. (flip the spool as well :-))

I used PETG with a 100% infill and 0.12mm layers for strength and accuracy.

I also used the Bambu PLA/PETG support material for maintaining the gap, but you can also use the main material for support.

Extra part: PC4-M5 Pneumatic Connector

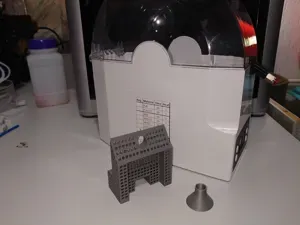

Check out my eSUN eBOX Dessicant Container

https://makerworld.com/en/models/754350#profileId-688378
