Spiral Christmas tree ball ornament

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: PRIVATE-USE; Только для личного использования: печатать для себя, без продажи и распространения.
Форматы: STL

3 456 Лайки
9 983 Загрузки
8 038 Напечатали
9 735 В подборках
624 Бусты
2 095 Комментарии
0 Просмотры

Автор:NoNameToo

Опубликована 26.11.2023

Скачать на

MakerWorld

Описание

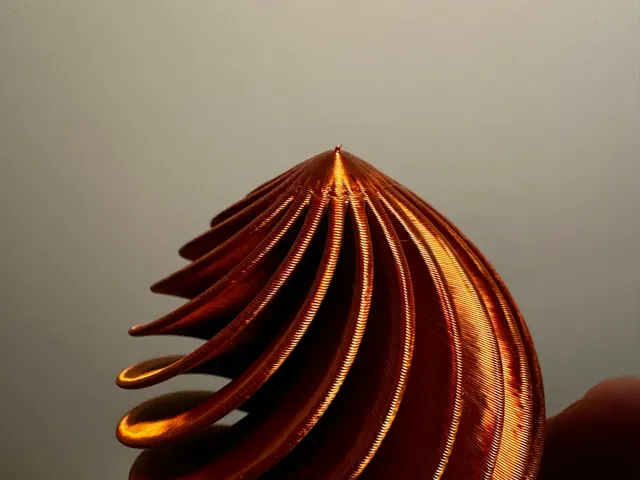

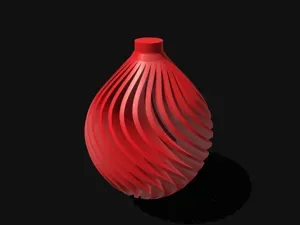

Created this beautiful and festive Christmas tree decoration. It can be easily printed in vasemode. The profile is configered with variable layer hight to make sure the top (which will eventually be the bottom) is nicely closed and strong enough. You can use a standard Christmas ball hook (12mm hole), or print your own (cap with hook now also included in the print profiles).

Be careful when taking it off the build plate. I always use the Bambu scraper to make sure it doesn't break at the wrong place. Vase mode can be a bit fragile.

Boost Me Does this model bring you (Christmas) joy? :) Feel free to give me a boost! Thank you!

If you want to sell prints of these beautiful ornaments, go to my Patreon for more information; patreon.com/NoNameToo

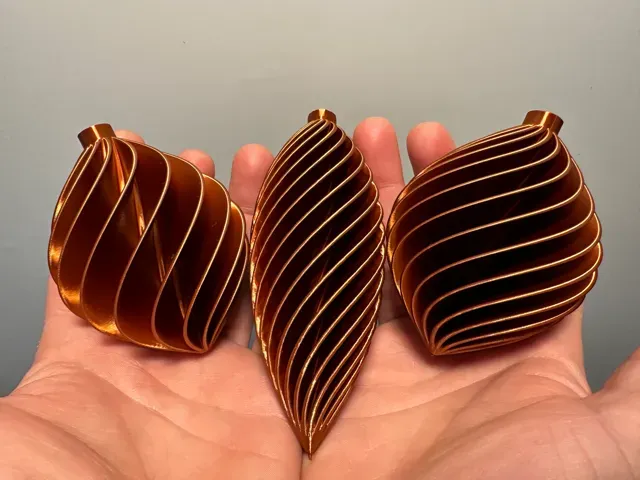

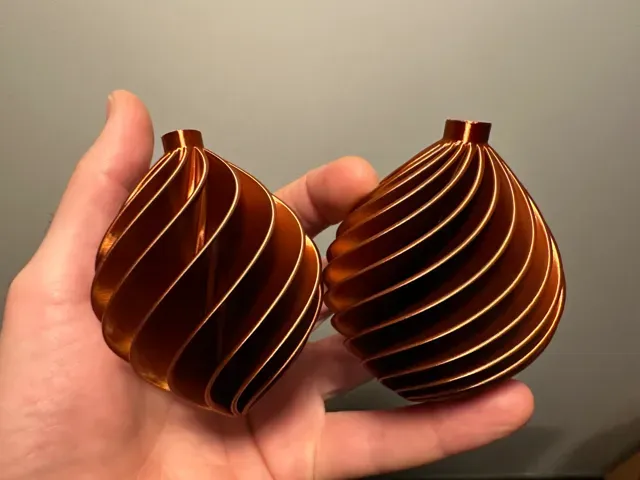

Currently there are three versions:

- one ball with 12 ridges (a more open spiral) - a ball with 18 ridges (for a more dense spiral) - a taller and slimmer ornament with 18 ridges - a cap with hook to make it easier to hang in the Christmas tree

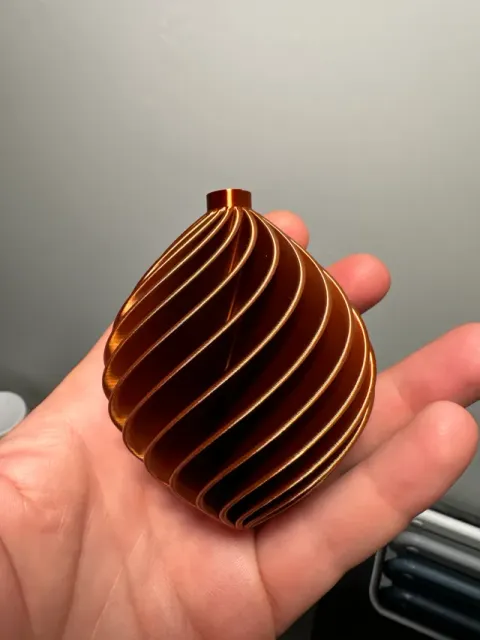

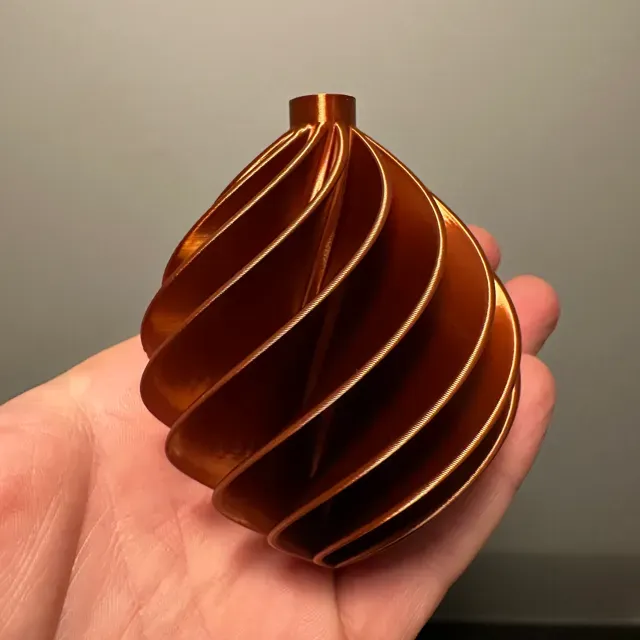

I printed mine in Bambu Silk PLA which looks very nice. Could easliy be printed in 0.12mm layer hight as well for even more detail.

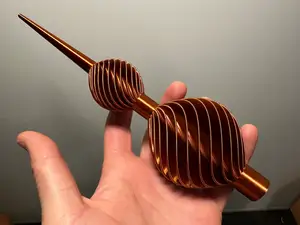

Matching Christmas tree topper | https://makerworld.com/en/models/82152#profileId-87530

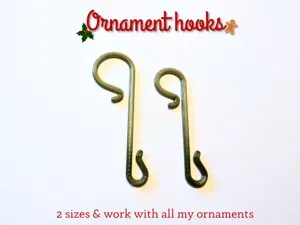

Christmas ornaments hooks or hangers | https://makerworld.com/en/models/820774#profileId-763783

New Vase Mode Spiral Christmas Ornament | https://makerworld.com/en/models/798319#profileId-737813

I was inspired by the design below, but wanted a stronger spiral, closed bottom, slimmer core, and less & thinner ridges/spirals. So I have drawn my own version in Shapr3D. Shapr3D files available on request.

https://makerworld.com/en/models/58845#profileId-60653

Руководства и профили печати

Профили печати и шаги

12 Ridges version - 0.2mm layer, 1 walls, 0% infill This version has 12 ridges, so more room between them:

- 0.2mm - 0% infill - 10mm outer brim only - Variable layer hight last top layers

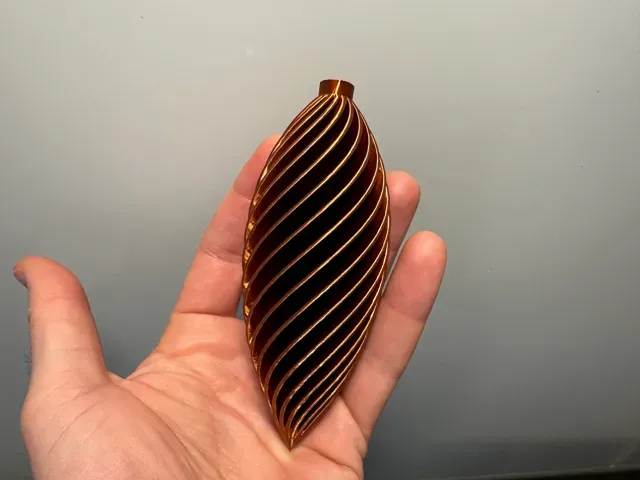

Taller 18 ridges version - 0.2mm layer, 1 walls, 0% infill This TALLER version has 18 ridges, so a little more dense ridges:

- 0.2mm - 0% infill - 10mm outer brim only - Print in vase mode

18 Ridges version - 0.2mm layer, 1 walls, vase mode This version has 18 ridges, so a little more dense ridges:

- 0.2mm - 0% infill - 10mm outer brim only - Variable layer hight last top layers

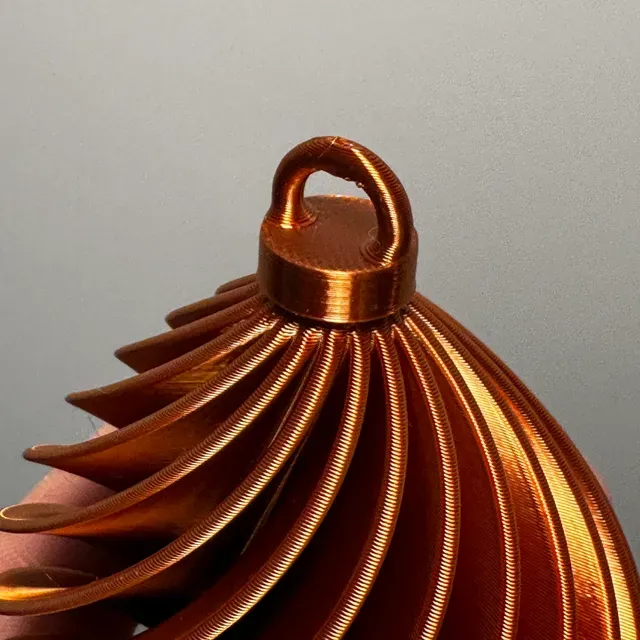

Cap with hook - 0.2mm layer, 2 walls, 15% infill This prints 5 caps with custom support. Attach them with some (hot) glue.

- 0.2mm - 15% infill - No brim - Custom support

NEW stronger Ball Cap NEW stronger Ball Cap

The caps in the print profile will be printed sequentially.

Tap 18 Ridges, 0.2mm layer, 1 walls, 0% infill A1 Mini Version

Spiral 18 Ridges ,0.2mm layer, 1 walls, 0% infill A1 Mini Version

18 ridges version WITH SCREW CAP - 0.2mm layer, vase mode No glue required!

With this profile, a thread is embedded in the ornament neck, so that the corresponding screw cap can be hand-screwed in place for maximum convenience.

Please don't change any parameter of the profile because it is already optimized for strength.

SCREW CAP with hook - 0.16mm layer, 5 walls, no glue require No glue required!

Screw cap to bolt on the screw versions.

Simply align with the thread on the ornament and screw by hand . Don't push hard when arriving at the end of the thread.

12 ridges version WITH SCREW CAP - 0.2mm layer, vase mode No glue required!

With this profile, a thread is embedded in the ornament neck, so that the corresponding screw cap can be hand-screwed in place for maximum convenience.

Please don't change any parameter of the profile because it is already optimized for strength.

modified infill, new stronger Cap, 0.2mm layer, 1 walls, 0.2mm layer, 1 walls,

modified infill on the weak parts of the print

+ NEW stronger Cap

Objects are printed individually on a single build plate to reduce print time and improve surface quality.

Taller 18 ridges WITH SCREW CAP - 0.2mm layer, vase mode No glue required!

With this profile, a thread is embedded in the ornament neck, so that the corresponding screw cap can be hand-screwed in place for maximum convenience.

Please don't change any parameter of the profile because it is already optimized for strength.

80% + couche variable => 0.2mm layer, 1 walls, 0% infill modèle réduit à 80% et bordure de 15mm pour maximiser l'adhésion.

J'ai légèrement retravaillé l'épaisseur de couche variable afin de réduire encore un petit peu le fait que on pouvait parfois distinguer les différentes couches sur le dessus.

La première photo montre le modèle

La seconde photo montre la différence entre le modèle à 100% et celui à 80%

All in one, ornaments in spiral, caps in normal, #fixed# I love this design and keep printing it for myself, but as my gf keeps asking me for another one after another one, I have to keep having go back and pick them one by one. So I put all of them together, and fixed the cap's support. (mostly for myself, but I will make it public)

0.2mm layer, 1 walls, 0% infill - all in one plate We need this, all in one plate and works :)

all printer generic or Bambu filament ready

have fun

2x 75% Scale vasemode

12 Rings 2x on a plate vasemode

2x 18 rings on one Plate vasemode
