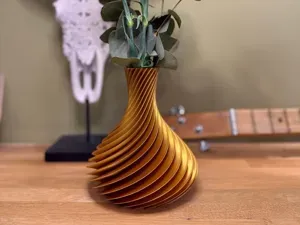

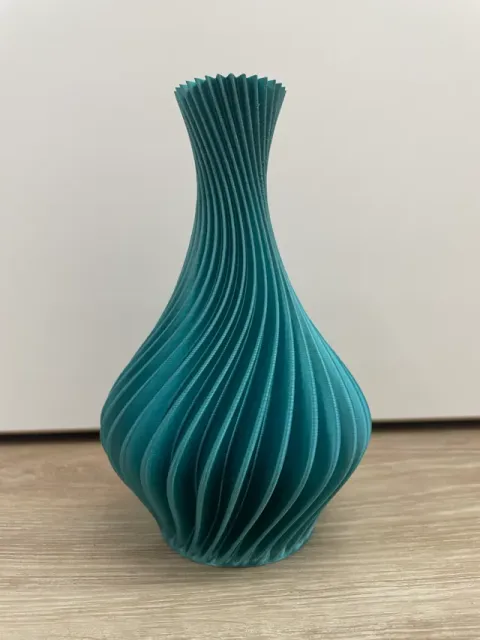

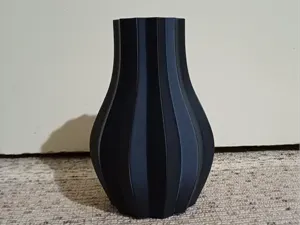

Spiral Vase

0.2mm layer, 1 walls, 0% infill

A1 mini, 0.2mm layer, 1 walls, 0% infill for A1 mini plate

Waterproof with PLA, 0.4mm nozzle, 0.28mm layer My printed PLA versions of the vase initially weren’t watertight, as the transition between the bottom and the walls was leaking. After some testing, I managed to create a watertight version using the following settings:

Bambulab P1S 0.4 mm nozzle

• Layer height : 0.28 mm (cause it's faster… can be adjusted)

• Line width : 0.8 mm (using 0.4mm nozzle)

• Bottom layers : 3 shell layers

• Bottom pattern : Concentric

• Seam gap : 5%

• First layers speed : Reduced

• Smooth spiral mode : Activated (Bambu Slicer always showed some seams on the outer wall when this option was disabled)

Filament used in pictures : PLA “Cremiger Kaffee (Beige)” by Recycling Fabrik.

Thank you to the original author for designing such a great object!

(Max size) 25cm tall - 0.2mm layer, vase mode Just taken the original model and scaled up to have the tallest vase possible :)

Watertight / Sturdy Walls / Thick Layer Lines 0.6 Nozzel Watertight Vase / Sturdy Walls / Thick Layer Lines → Perfect Results

- 0.6mm Nozzle - Vase Mode - 0.42mm Layer Height - 1 Wall (1mm) Using Bambu Lab Matte PLA

- 230°C Printing Temperature - Flow Ratio: 1.05

FASTER, 0.28mm layer, 1 walls, 0% infill 0.28mm extra draft profile for faster print.

0.6mm nozzle, 0.2mm layer, 1 walls, 0% infill, PLA silk Scaled to a height of 20cm and adjusted the speed for a shiny finish with PLA silk.

0.8mm nozzle, 0.4mm layer, 1 walls, 0% infill Profile for the 0.8 tip, 0.9 mm wall thickness. It prints fast and yields a heavier vase than the 0.6 tip. The 0.4 mm layers look rather nice for this vase in my opinion.

Thick, heavy and durable: 0.8mm nozzle, 1.6 mm thickness The original design is very nice, but a bit fragile.

I prepared new print profile for 0.8mm nozzle, 0.28mm layer, 1 walls, 0% infill, 1.6 mm thickness, 24cm height, PETG

For practical use, this is a better option.

Photo: original is on the left, new version is on the right.

0.2mm layer, 3 walls, 0% infill Perfil de impresion realizado para intentar solucionar problemas de fuga de agua por el uso de una unica pared Se cambia de 1 a 3 paredes para mejorar el grosor y asi tratar de evitar microcanales que permitan la salida de agua

RESIZED 50%, for a single flower, 0.2mm, 2 walls, 0% infill
