Check out V2.1! (in the lower part of this description).

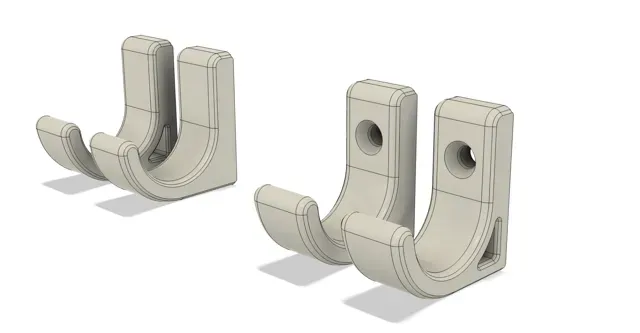

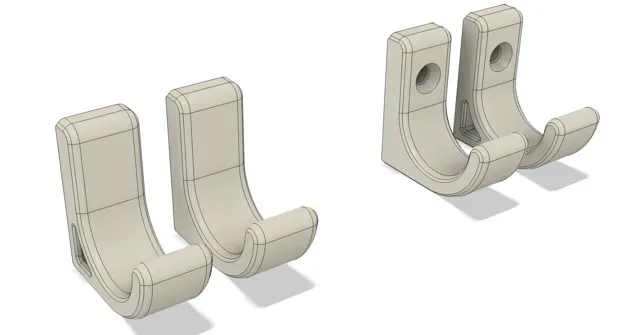

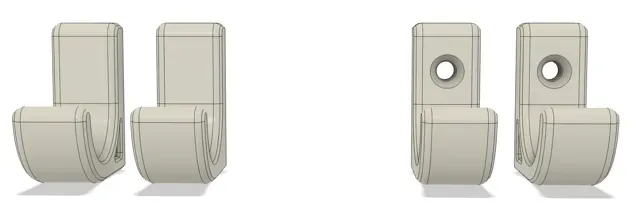

Rugged Wall Hook V2 – Stronger, and More Versatile

Introducing V2 of the Rugged Wall Hook, an upgraded version that builds upon the proven features of V1. Designed for durability and functionality, this hook is perfect for hanging anything from bikes to heavy bags, with improvements inspired by real-world use.

What’s New in V2?

• Double-Sided Tape Option : Added a version for users who prefer mounting with tape – no drilling required!

• Refined Profiles : Rounded edges for a sleek look while maintaining 3D-printing compatibility.

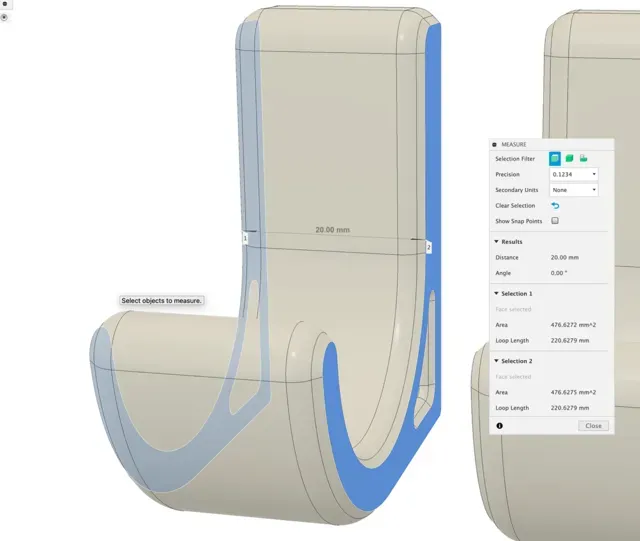

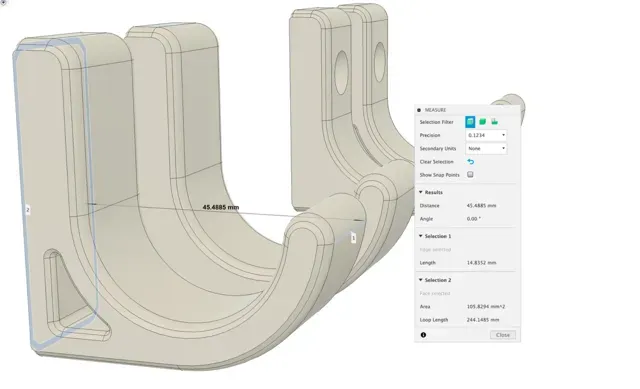

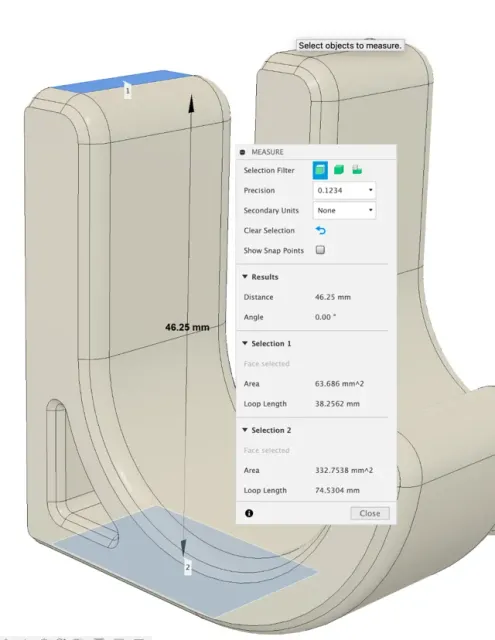

• Slightly Adjusted Dimensions : Minor tweaks for better usability, without compromising strength.

Core Design Features (V1 & V2)

• Strength Optimized for Layer Lines : Designed to maximize the natural strength of 3D-printed parts.

• Quick and Efficient Print : Easy to make, with a focus on minimal print time.

• Heavy-Duty Performance : Built to hold up to 10kg – perfect for heavy bags, bikes, and more.

• Modern Aesthetics : A clean and functional design that looks great in any space.

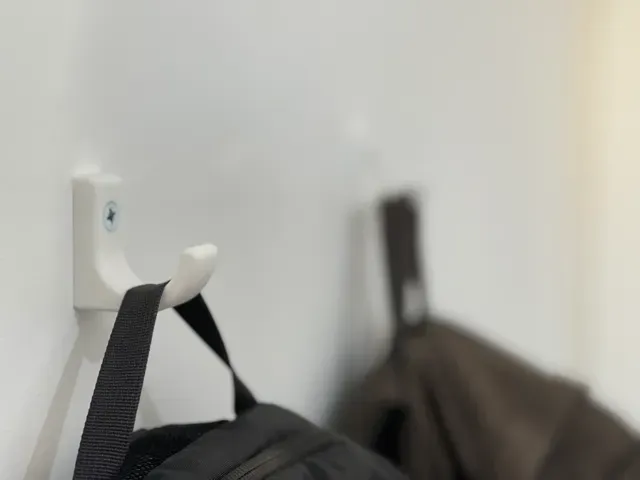

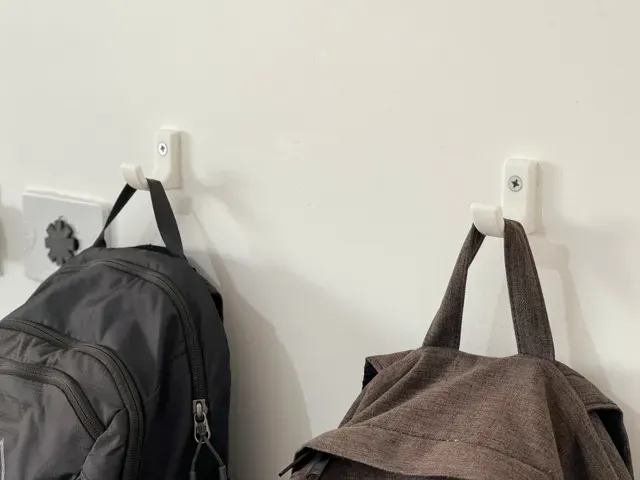

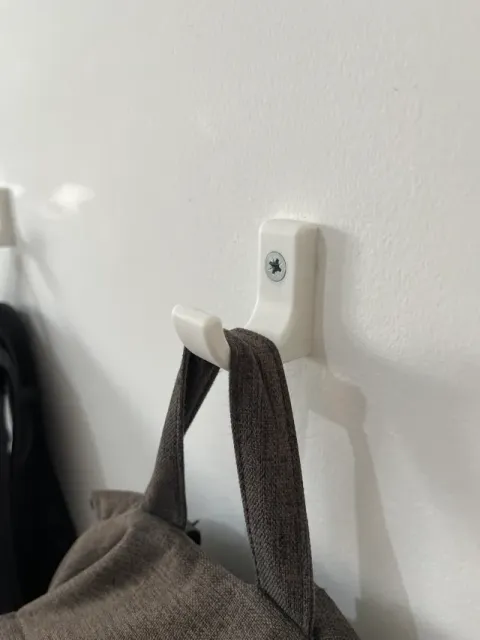

Check out photos from users worldwide showcasing the incredible potential of this hook – from bikes to bulky bags, it’s a proven solution!

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

V2.1

What’s New in V2.1?

- Hidden Screw Head : Cleaner installation with recessed screw access for a flush, seamless finish while not sacrificing functionality.

- Modern, Minimal Aesthetic : Designed to blend into any space while standing up to tough jobs.

- All V2 Improvements Included : refined edges, and dimension tweaks – all retained and improved. Enjoy :)

Руководства и профили печати

Профили печати и шаги

All variations- V2 The printing settings really depend on your desired application though because its not a lot of filament i recommend going with the following:

- 6 walls - 70% infill - 1mm top and bottom - (fuzzy skin works great.)

V2.1_Hidden screw

XL new variation

Small new variation

Thick body new variation

0.16mm layer, 8 walls, 50% infill

4pcs with hole A1 mini Optimized Print Profile for Wall/Cabinet Hook

Printer: Bambu Lab A1 Mini Note: This is a print profile only. The 3D model is not my original design.

Description

This profile is carefully tuned for printing a small yet sturdy hook, ideal for mounting on walls or inside cabinets using a screw hole. It’s perfect for hanging items like keys, towels, bags, or tools. Whether you're organizing your home, office, or workshop, this profile ensures a strong, clean, and efficient print on the Bambu Lab A1 Mini.

Profile Specifications

- Material: Generic PLA (Flow Rate Calibrated) - Layer Height: 0.20 mm - Top Layers: 5 - Bottom Layers: 3 - Wall Loops: 2 - Infill: 15% Gyroid - Line Widths: - Default: 0.42 mm - Initial Layer: 0.50 mm - Outer Wall: 0.42 mm - Inner Wall: 0.45 mm - Sparse Infill: 0.45 mm Highlights

- Excellent strength-to-material ratio - Clean top and bottom surface finish (Monotonic pattern) - Reliable adhesion and structural integrity - Fully optimized for A1 Mini slicer settings

0.2mm layer, 3 walls, 50% infill printed from PETG, holds 30 pounds comfortably can hold 50 pounds. print 1 or 4 or 12 :)

Strength increased. One model each plate

0.2mm layer, 2 walls, 15% infill Added a couple modifiers to increase infill around holes. It may or may not be needed but I always like to do it.
