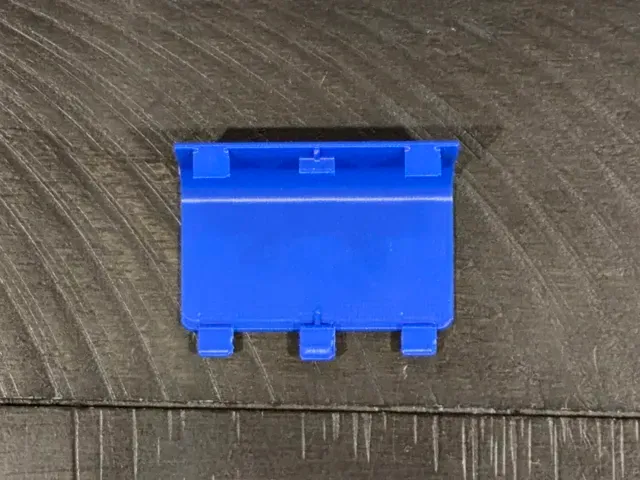

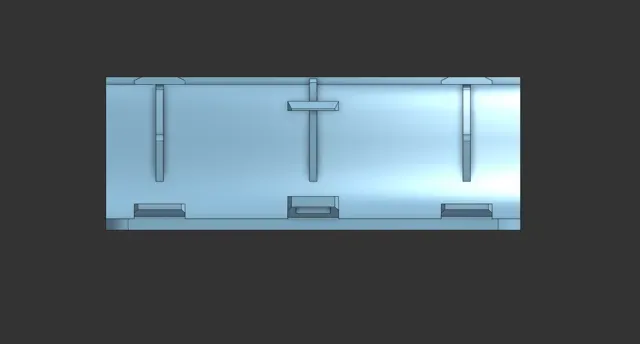

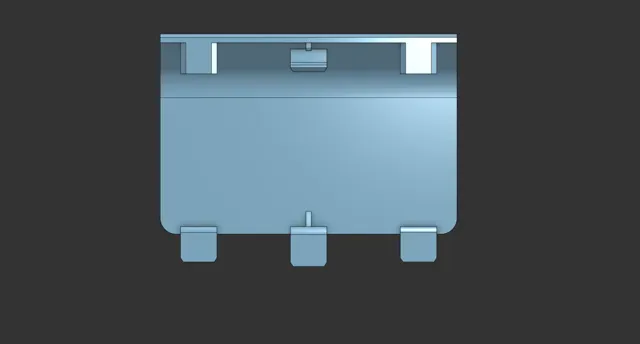

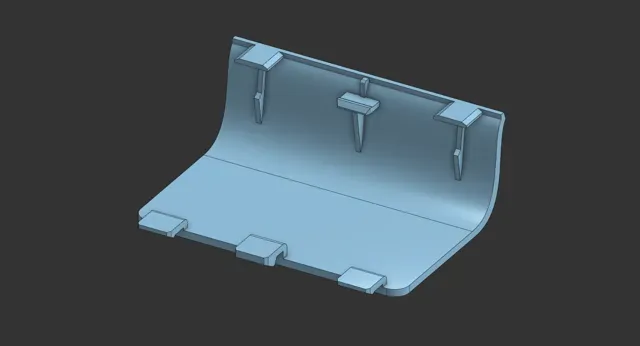

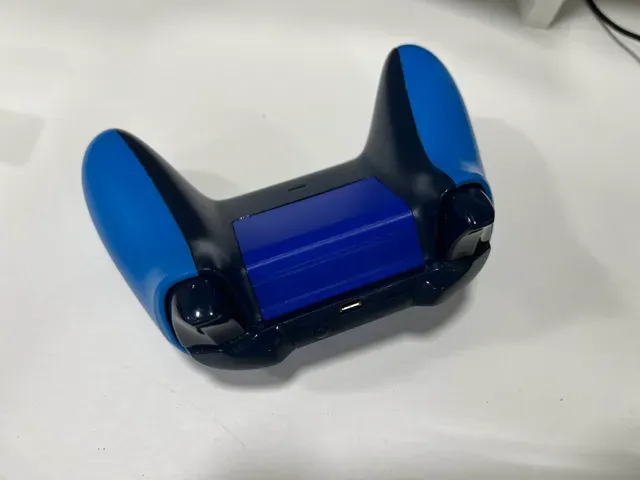

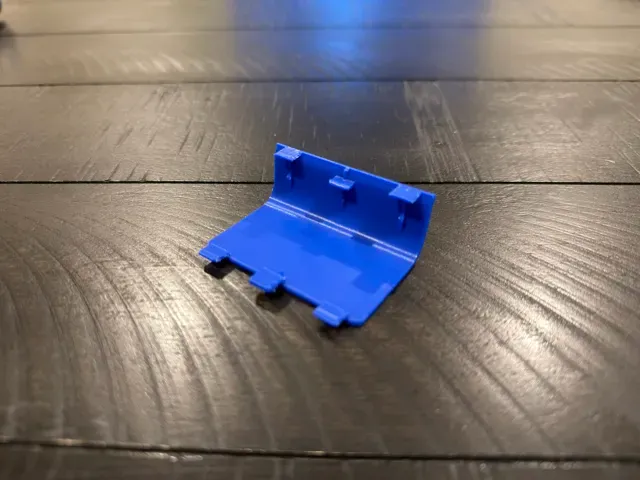

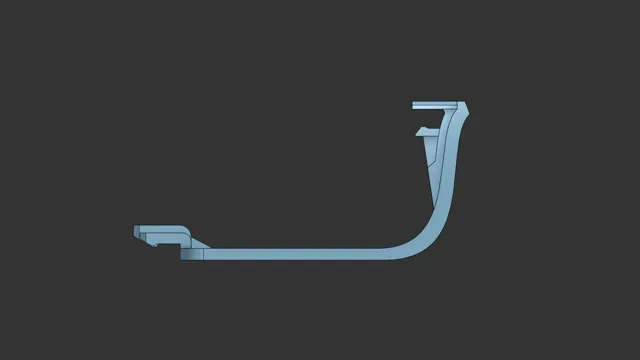

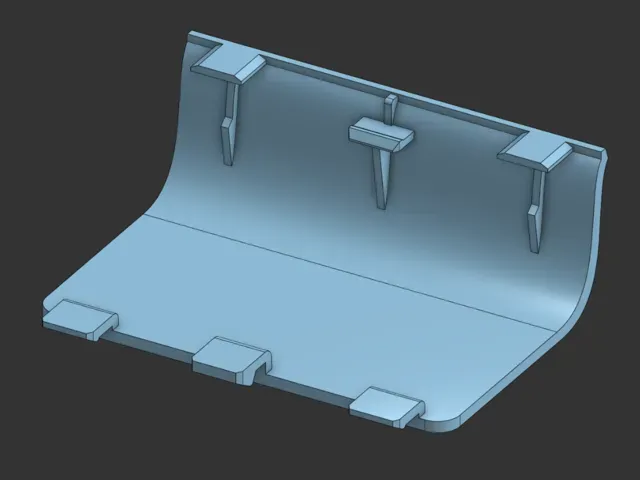

Xbox One Controller Battery Cover

0.2mm layer, 6 walls, 15% infill INTENDED FOR THIRD-GENERATION (MODEL #1708; DESIGN USED FROM 2016-2020) XBOX ONE WIRELESS CONTROLLERS

- 0.2mm Strength Profile - 15% sparse infill density - Rectilinear sparse infill pattern - Tree(auto) supports - Tree Slim style - 65-degree threshold angle

PETG 0.08mm layer, 2 walls, 15% infill PROFILE IS EXPLICITLY DESIGNED FOR TRANSPARENT PETG; MAY OR MAY NOT WORK WITH OTHER FORMS OF PETG OR OTHER FILAMENTS

INTENDED FOR THIRD-GENERATION (MODEL #1708; DESIGN USED FROM 2016-2020) XBOX ONE WIRELESS CONTROLLERS

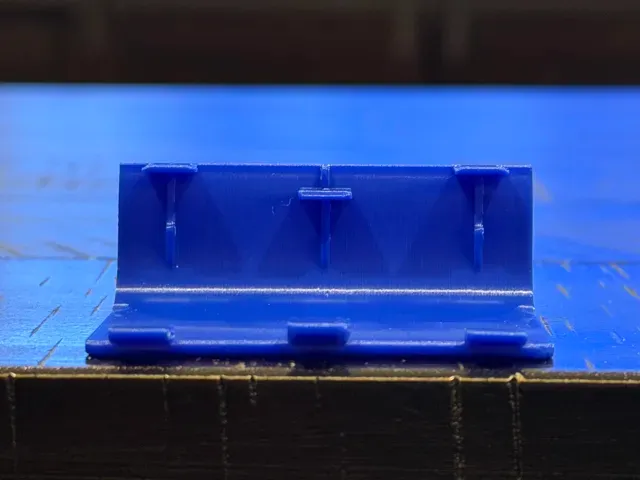

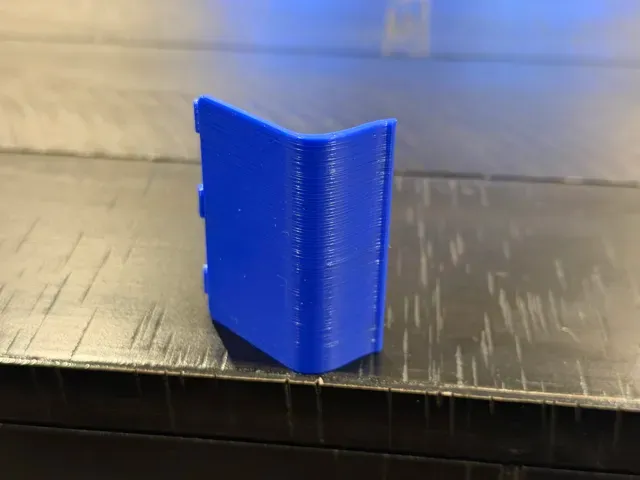

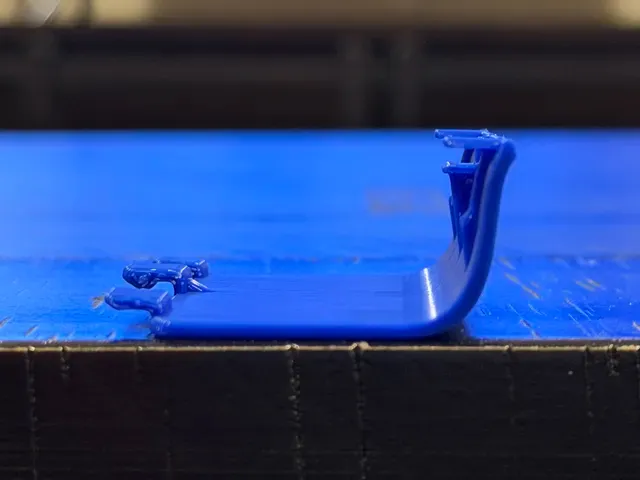

- PETG MUST be properly dried before printing - Tested and printed with CC3D Transparent PETG - Supports HIGHLY recommended (Manually painted supports on bottom-on-plate for all 90° overhangs and 65° on the rear/outside curve; Tree supports, thin style) - 3 Build plate options: - Printed bottom-on-plate: not recommended due to slightly lower print quality and nearly demands 0.08mm layer heights; will allow for use of textured plates, supports must be removed with extreme care which takes time, patience, and caution; Use of tools may be required for some filaments to successfully remove supports. Tabs are subject to breaking if excessive force is used. - Printed side-on-plate: - With brim: Recommended for those needing extra plate adhesion - Without brim: Generally tested to work best with best output resolution without using extra filament for a brim
