USW-FLEX-MINI 10 Inch Rack Mount

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: PRIVATE-USE; Только для личного использования: печатать для себя, без продажи и распространения.
Форматы: STL

Автор:n3rding

Опубликована 23.11.2024

Описание

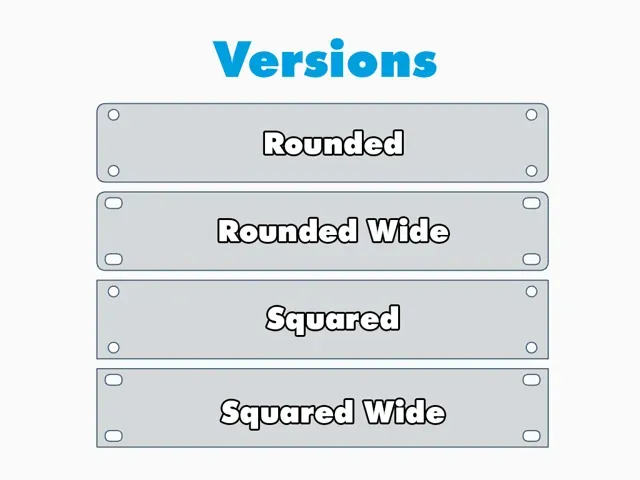

*Added rounded corners version and also wider mounting holes - see last image for versions.

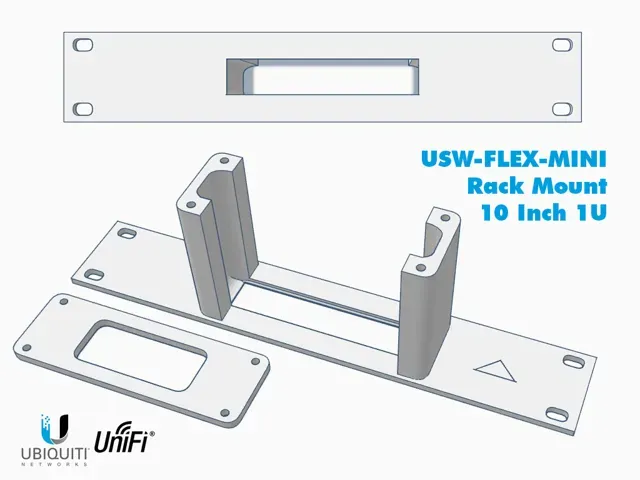

I wanted a nicely fitting 1U 10 Inch rack mount for the Ubiquity Unifi USW-FLEX-MINI and one didn't appear to exist, so I made one.

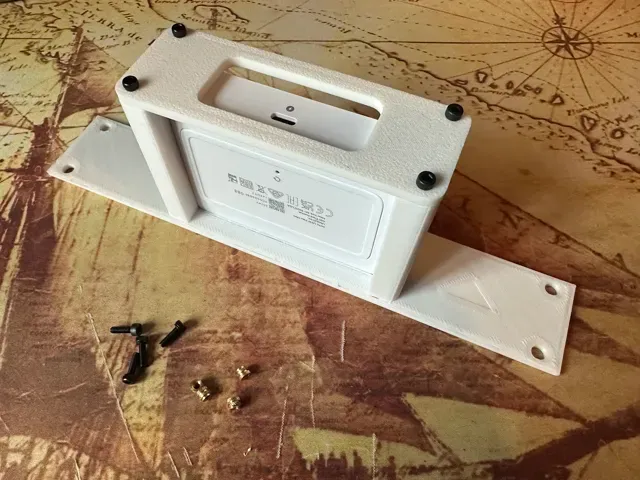

The triangle that appears on the print signifies the UP direction, as the switch is not symmetrical!

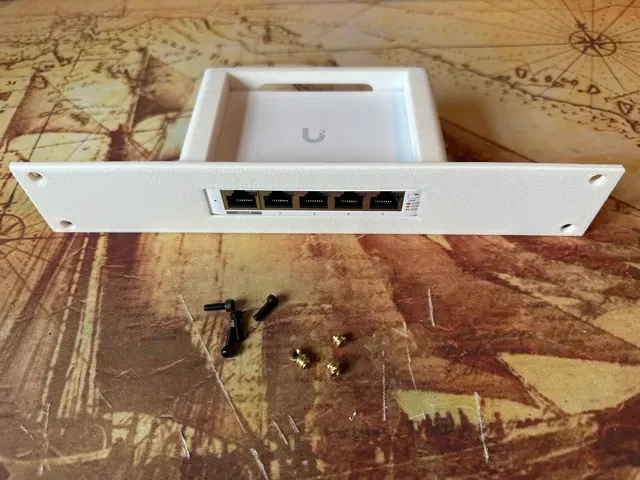

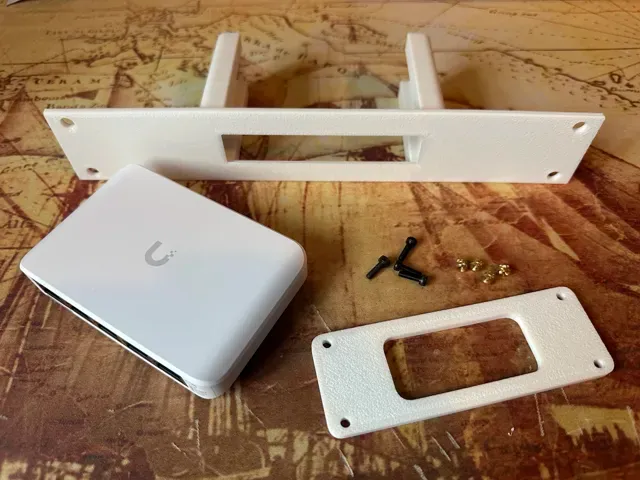

You will need heat set inserts and M3x8 bolts, slightly longer bolts are likely to be fine.

M3 4.6mm diameter heat set inserts: https://www.amazon.co.uk/gp/product/B095VW7GBW/?th=1

My other 10 inch models here: https://makerworld.com/@n3rding/collections/3262188

0.2mm layer, 2 walls, 15% infill Printed at 45 degrees in the orientation of the first layer

WideRounded, 0.2mm layer, 4 walls, 15% infill Original .stl file

Rounded, 0.2mm layer, 4 walls, 15% infill Original .stl file

6 Inch Version, 0.2mm layer, 4 walls, 15% infill Did a 6 inch version of this for my micro rack.

You have to drill the holes in the frame as you need them, cince i screwed directly into the model without using heat set inserts.

I will upload a print profile for the 10 inch version soon.

Squared, 0.2mm layer, 4 walls, 15% infill Original .stl file

WideSquared, 0.2mm layer, 4 walls, 15% infill Original .stl file
