M3/M4 Screw Kit (Screws, Washers, Nuts)

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STEPF3D
  • 8 823 Лайки
  • 29 269 Загрузки
  • 17 002 Напечатали
  • 27 917 В подборках
  • 435 Бусты
  • 1 343 Комментарии
  • 0 Просмотры

Автор:TuTu

Опубликована

Скачать на MakerWorld

Описание

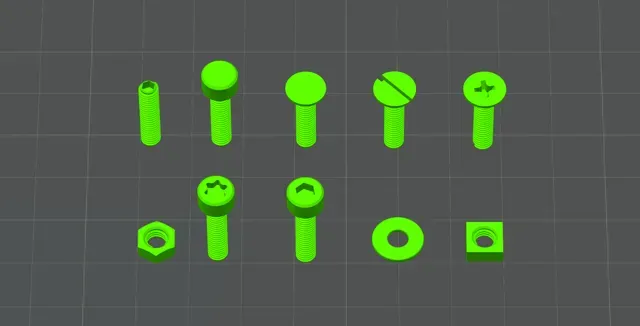

M3 Screw Dimensions

- Thread Diameter (Outer Diameter): 3mm - Available Lengths: 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm. M4 Screw Dimensions

- Thread Diameter (Outer Diameter): 4mm - Available Lengths: 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm. Nuts and Washers Included

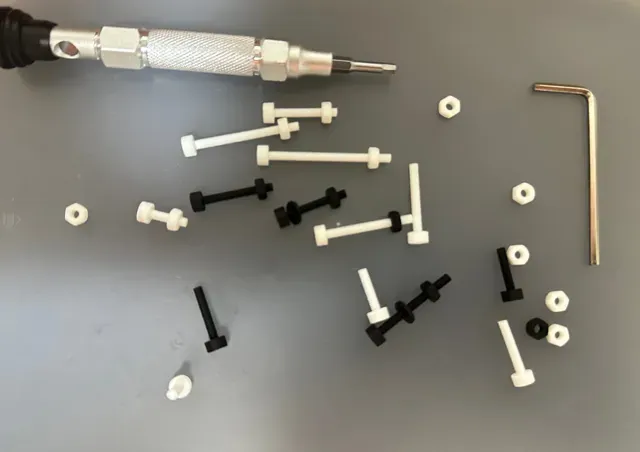

- Hex Nuts: Perfect for general assembly and compatible with both M3 and M4 screws. - Square Nuts: Designed for precise alignment and a secure fit. - Flat Washers: Provide stability and distribute the load evenly to protect surfaces. It was designed without the need for support, making it easier to print. I have tested it for you, please feel free to print it.

Stackable Metric Nut Sorting Tower – M2 to M8

And also don't forget to check out other projects you might like

Руководства и профили печати

Профили печати и шаги

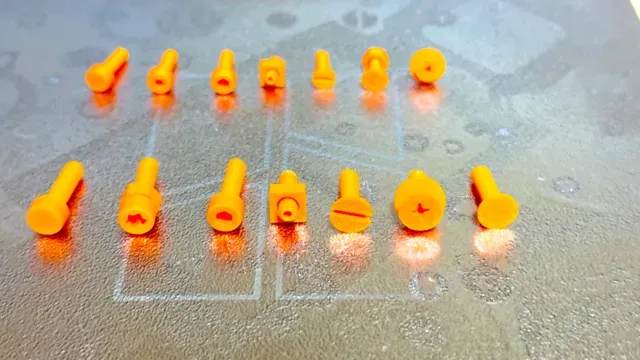

M3 Screws - 0.2mm nozzle, 0.08mm layer, 5 walls, 100% infill - Nozzle Diameter: 0.2mm - Layer Height: 0.08mm - Wall Count: 5 walls - Infill Density: 100%

M4 Screws - 0.2mm nozzle, 0.08mm layer, 5 walls, 100% infill - Nozzle Diameter: 0.2mm - Layer Height: 0.08mm - Wall Count: 5 walls - Infill Density: 100%

M3 M4 Nuts - 0.2mm nozzle, 0.08mm layer, 4 walls,100% infill - Nozzle Diameter： 0.2mm - Layer Height： 0.08mm - Wall Count： 5 walls - Infill Density： 100%

M3 M4 Washers - 0.2mm nozzle, 0.08mm layer, 4 walls - Nozzle Diameter： 0.2mm - Layer Height： 0.08mm - Wall Count： 5 walls - Infill Density： 100%

M3 X 5mm 0.2mm layer, 2 walls, 15% infill

M3 X 6mm 0.2mm layer, 2 walls, 15% infill - Nozzle Diameter： 0.2mm - Layer Height： 0.08mm - Wall Count： 5 walls - Infill Density： 100%
