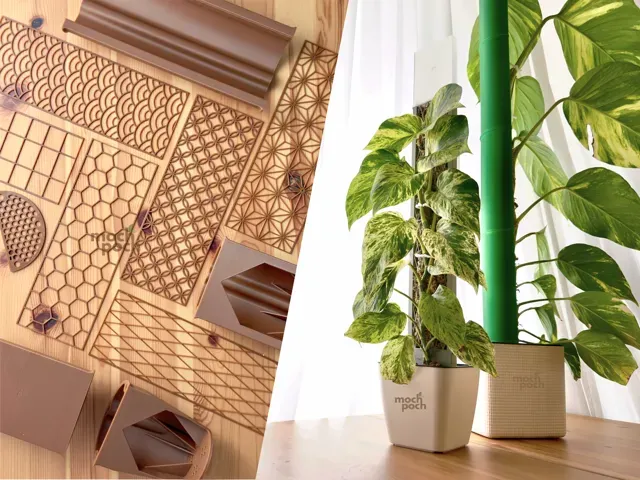

Bamboo Moss Pole (90mm)

Bamboo Moss Pole (90mm)

150mm version has been released. Click here 🌱

Succeeding the MochPoch moss pole designs ( 118mm and 70mm ), the Bamboo Moss Pole is here. Through multiple iterations, requests of kind users of various 3D printing communities have been included to create a pole that’s not just functional but also aesthetically pleasing.

With six grid designs and two base options, you can choose the look that best suits your plants. Plus, the thoughtfully designed backing ensures your pole looks great from every angle—making it an excellent choice even for window-facing plants.

If you'd like to support my projects or obtain a commercial license, consider joining my Patreon membership:

https://www.patreon.com/MochPoch

For one-time support, you can also fuel my creativity with a cup of coffee:

https://buymeacoffee.com/MochPoch

Boost Me Thank you for the encouragement and support!

The Bamboo Moss Pole (90mm) is compatible with pots that are at least 100 mm in diameter.

Using the tapered base will allow compatibility with pots with a base diameter of 65 mm.

Unfortunately this is an entirely new moss pole system and it is not compatible with my previous designs.

Compatible attachments:

- Bamboo Moss Pole (Watering Attachment) This model is comprised of 4 required and 1 optional parts:

Backing

Pole Version Pole Segment Height

Regular 220 mm

For A1 Mini 170 mm

This pole comes in a  90 mm diameter. To remove the support, simply poke a hole in the support base and tilt your piercing tool of choice to pull the support out. Depending on the quality/state of your filament it could get difficult and  long nose pliers might be your best option.

Grid

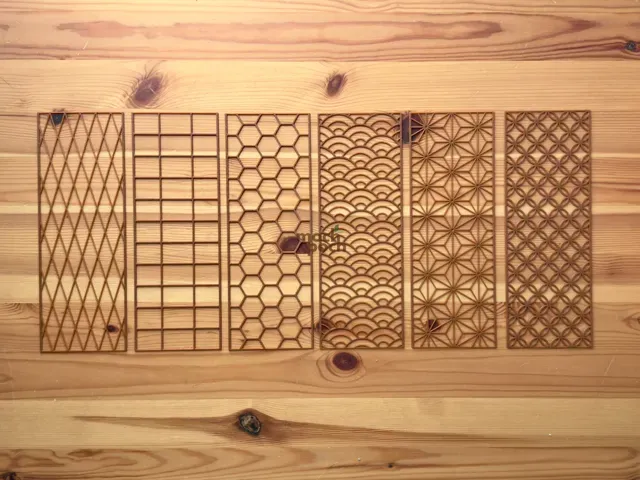

Mixing function with style, the backing can be matched with 6 grid designs:

- Hex - Rectangle - Diamond - Seigaiha - Asanoha - Shippo Base

Considering standard pot sizing, 2 bases are available:

Part Top Diameter Base Diameter

Tapered Base 90 mm

60 mm

Round Base 90 mm

100 mm

Dowel

NOTE : Due to various factors such as printer differences (brand, calibration, settings etc.) or filament (type, dryness, brand, calibration etc.) clearance testing is a must .

Use the clearance test plate to print the dowels with varying diameters and test it on the backing. There are trade-offs based on the clearance you choose.

Fit Effect

Tight

(requires pliers to insert or remove)

- sturdy - stable - difficult to stack or separate

Loose

(easily inserted without tools)

- wobbly - unstable - easier to stack or separate

Optionally, one may use glue if you want to make sure that the dowel and the backings do not shift in its place.

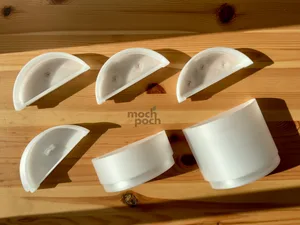

Watering Attachment (optional)
