Solar System Lithophane Planet Lamps - ⌀205mm

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: CC-BY-NC-SA; Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы: 3MFSTL

915 Лайки
2 237 Загрузки
845 Напечатали
2 195 В подборках
416 Бусты
371 Комментарии
0 Просмотры

Автор:FritzPeppone

Опубликована 27.11.2024

Скачать на

MakerWorld

Описание

Boost Me If you like my models, please consider boosting me. This really helps me a lot to mitigate the design and development costs of these models. Attention

This upload does not contain any STL files. Due to the upload size limitations of Maker World and the large file sizes for high quality lithophane STL's (200-300MB each), I can only provide print profiles containing the STL files.

Introduction

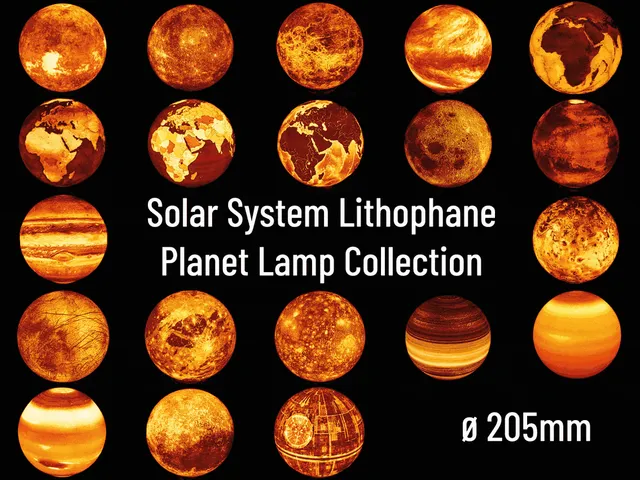

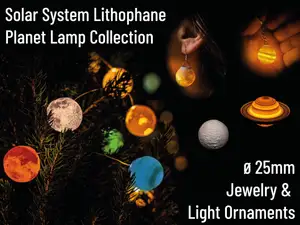

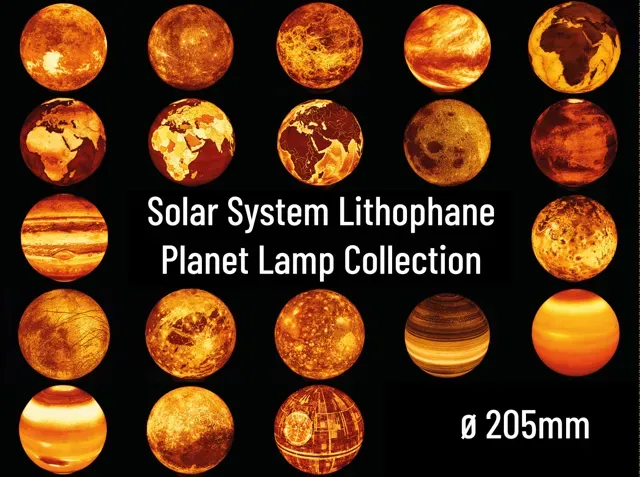

This model is part of my Solar System Lithophane Lamp Series. As of now, all planets and several moons of the solar system are available as lithophane lamps and in three different sizes: ⌀205mm (this upload), ⌀150mm and ⌀75mm . I am already working on a ⌀295mm version for large scale printers such as the H2D and a ⌀25mm version for 0.2mm nozzles and Resin printers.

If you like my work, please consider supporting me. Your support will help me to make more models available for free. https://ko-fi.com/fritzpeppone . If you like to use my models commercially, please obtain a commercial license on Makerworld. The commercial license includes all of my models except those that are based on the intellectual property of others (e.g. the GTA V map lamps) or remixes (e.g. the Death Star or Phobos lamps).

Membership Become a member to use my models commercially! Requirements

All Lamps have a size of ~ 205mm x 205mm x 195mm. They should print fine on most printers except for small printers such as the Prusa mini or Bambu A1 Mini. You will need around 300g of Filament (preferably PLA or PLA+) per lamp.

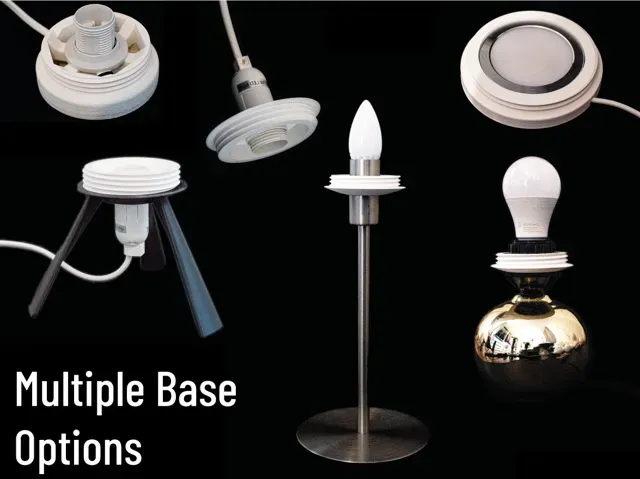

The lamps are mounted to their base with a M75x4 metric thread. The idea for the thread and also the thread dimensions are taken over from the Lithophane Moon Lamp with wide Screw Base by The Quicksilver . This means that his moon lamp as well as his mounting options are compatible with my lamps and bases. I am providing multiple different base options that all use the same thread. Choose the lamp of your liking and match it with any lamp base of your liking. All compatible lamp bases are listed below. You may either need a standard lamp base with a E14 or E27 thread or threaded E14 or E27 sockets. Some Bases also require M3 heat set inserts and M3 BHCS screws. There is additionally the option to use a a Bambu LED Kit 001 as base.

Print Settings

There are only a few settings you should tweak in the slicer to print the lamps.

- Print in PLA or PLA+ - Recommended layer height: 0.16mm - Use the Arachne Perimeter Generator for more precise printing with better details - If you use Arachne, set the minimum line width to 75% to avoid holes! - Set wall count to 5-6 to obtain a solid lamp - Set seam position to aligned - Activate Brim (Outer Brim Only) and set the Brim width to 5-10 mm - No Support required! The lamps print perfectly fine without support. All lamp bases come with in-built snap off supports (where required). Be aware, that slicing and printing may take a very long time. The STL files can take up to 10 min. to slice.

For Bambu Studio users: Bambu Studio seems to struggle with the Arachne Perimeter Generator. If you are unable to slice a lamp with Arachne, use the Classic Perimeter Generator.

Attention: the top section of the earth models (earth, earth bathymetry) and mars are tricky to print due to the low number of top layers and the heavy bridging in the top section. You may encounter holes there.

To avoid ruining a several hour or even several day print in the very end, I recommend printing the earth_dome_test.stl model from the Test Prints section. This is simply the top part of the earth lamp. If it prints well, go for the full lamp. If you encounter issues, reduce print speeds or use smaller layer heights for the top section.

This is not a SpeedBoatRace print! Use conservative print speed settings to avoid artefacts! It's totally fine if your print takes one or two days to finish.

Filament

Filament matters. A lot! Depending on your filament choice, your lamp may have more or less contrast or a warmer or cooler color temperature. You can also change the outcome by choosing light sources with different wattage or color temperature. The picture below illustrates this:

All of the four Panels above were printed with different white PLA/PLA+ filaments but illuminated with the same 1W LED bulb.

Before starting a multi-day print, I recommend printing the Solar System Lithophane Calibration Panel to test how your print will turn out. You are also by no means limited to white lights and filaments. Check the makes below to get inspired what color and light choices other makers made.

My personal favourite filament and the one I used for all lamps in my photos is Filament PM PLA+ White.

Planet Lamps

The list below contains all (Dwarf)Planets of the solar system and the sun, turned into lithophane lamps. All of the lamps below are original creations.

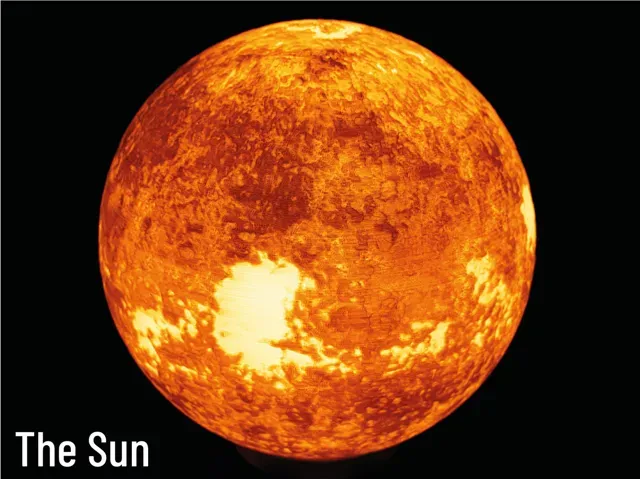

The Sun

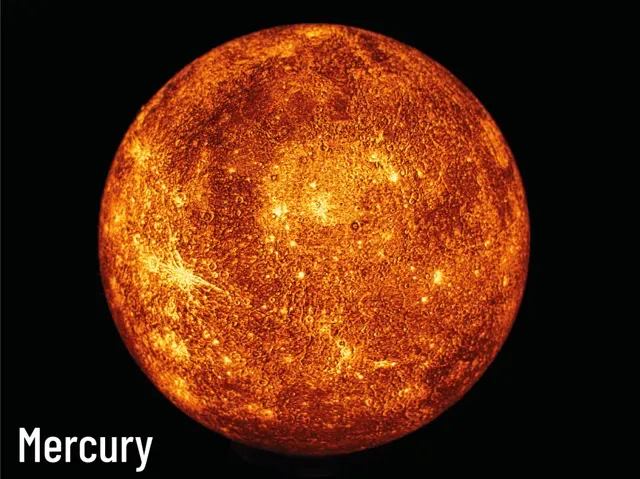

Mercury

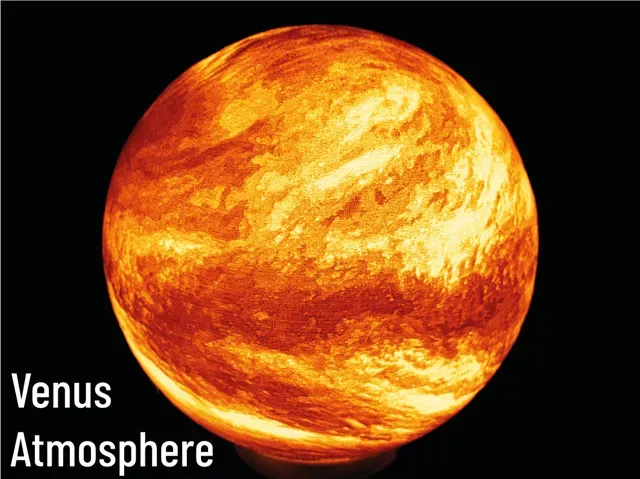

Venus Atmosphere

Venus Surface

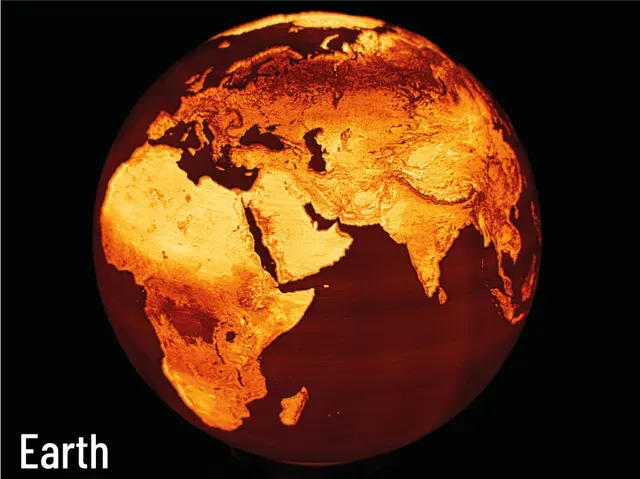

Earth

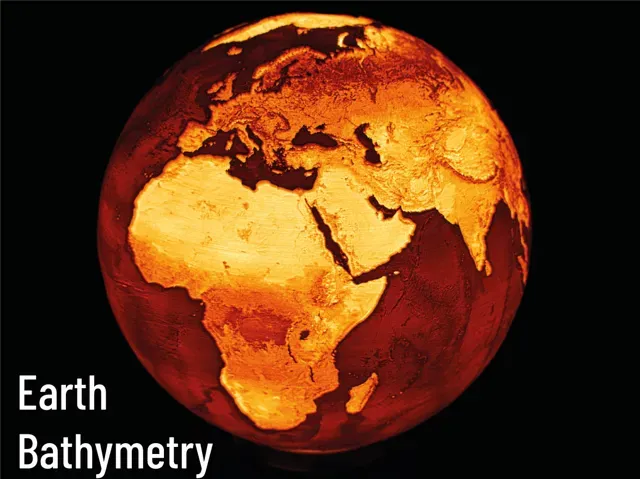

Earth Satellite Bathymetry

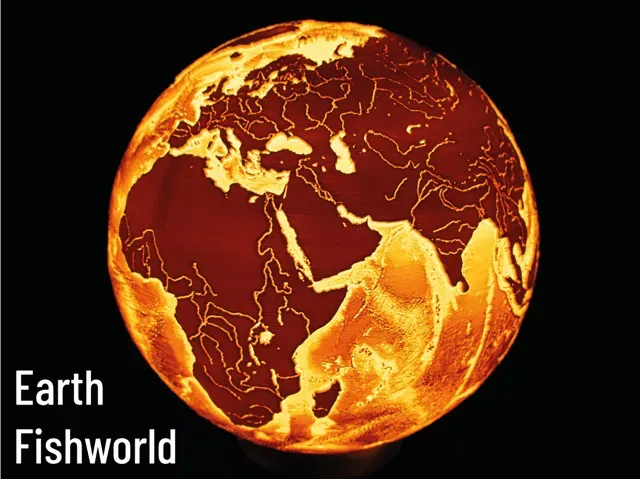

Earth Fishworld

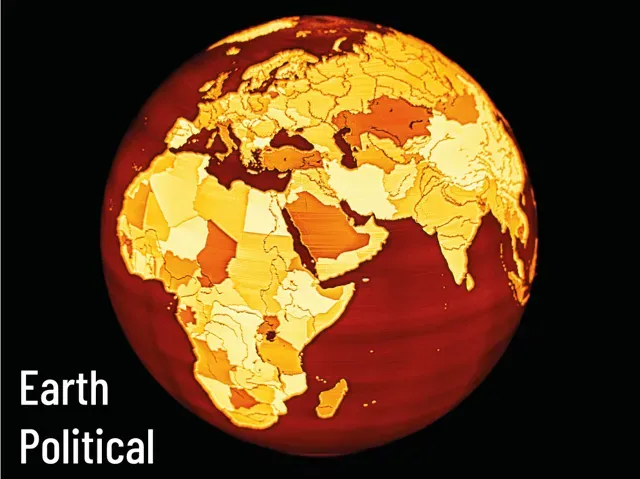

Earth Political

Earth Political Bathymetry

Earth Topography

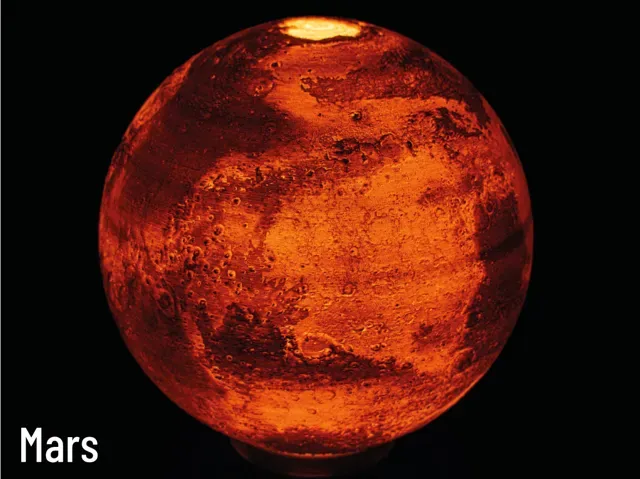

Mars

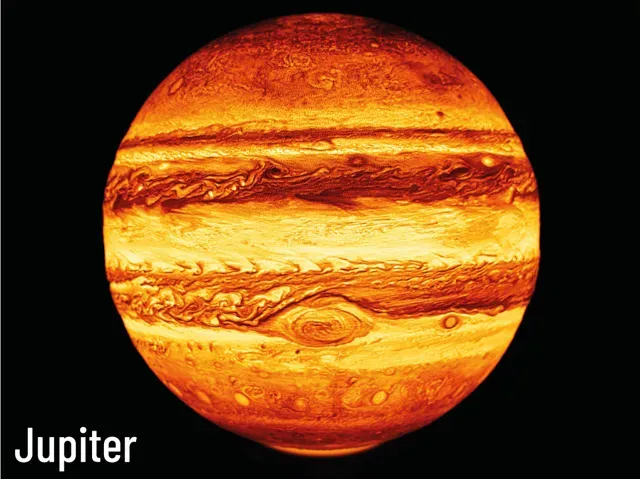

Jupiter

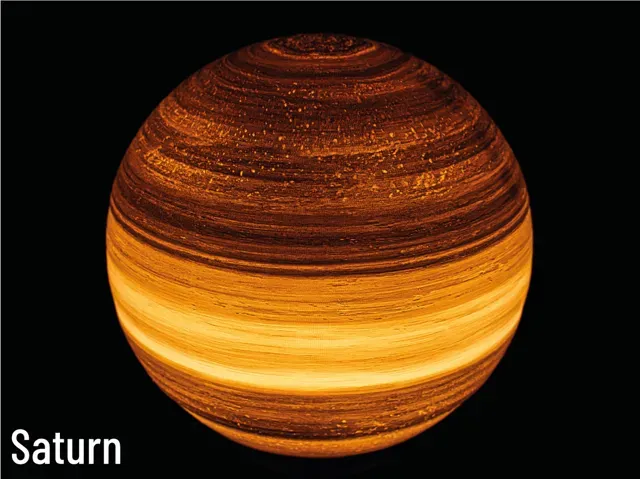

Saturn

Uranus

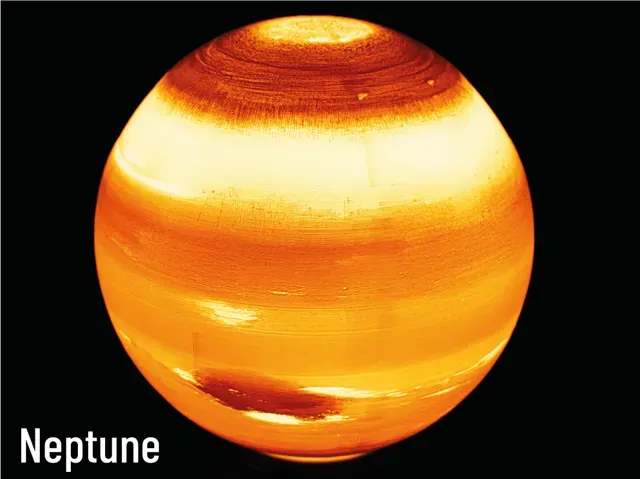

Neptune

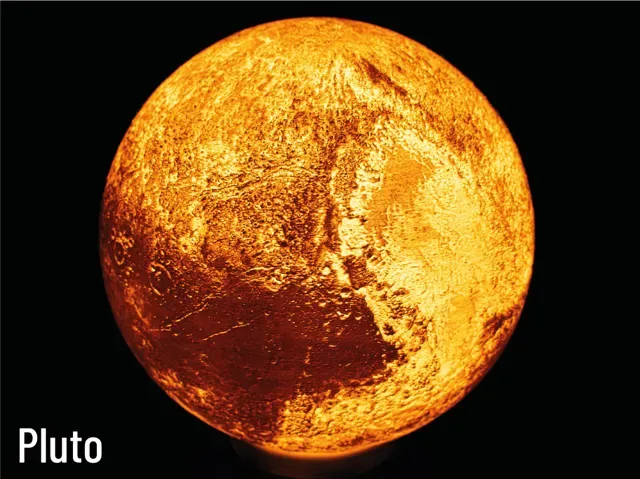

Pluto

Moon Lamps

The list below contains several moons of the solar system, turned into lithophane lamps. All lamps except for the Phobos lamp are original creations.

Руководства и профили печати

Профили печати и шаги

Bambu Base, 0.2mm layer, 3 walls, 20% infill Basic settings, no supports required

Jupiter, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

I recommend using Arachne Perimeter Generator instead of Classic. Due to extensive slicing times (>30 min), I cannot upload a profile for Arachne (Makerworld slicing timeout error). I recommend slicing it yourself with the settings recommended on the model page.

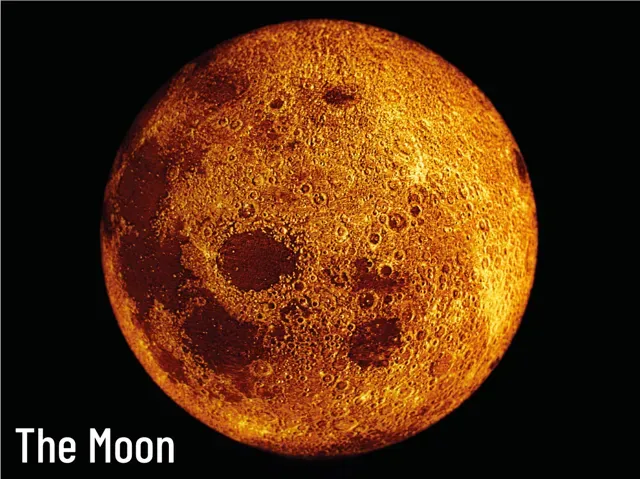

The Moon, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Earth Bathymetry, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Earth, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Rock Base, 0.16mm layer, 3 walls, 20% infill

E14 / E27 Adapters, 0.2mm layer, 3 walls, 20% infill Basic settings, snap off supports are part of the design, no manual supports required.

Choose the plate you want to print depending on if you have a E14 or E27 socket and on wether you want a threaded or non-threaded version.

The Sun, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Death Star, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

This model features two versions: one where the lamp adapter can be screwed in the south pole side of the death star (north pole up), one where the thread is on the north pole side (south pole up). Choose the first, if you want to have a standing lamp, pick the latter if you want to use your lamp hanging from the ceiling.

Puck Base, 0.2mm layer, 3 walls, 20% infill Basic settings, built in supports, no manual supports required

Print either the E14 or the E27 plate

Neptune, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Saturn, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Earth Political, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Mars, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Legacy Base, single color, 0.2mm layer, 3 walls, 20% infill Basic settings, built-in snap away supports

print either the plate with a threaded base or with an unthreaded base.

Earth Fishworld, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Venus Atmosphere, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Mercury, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Venus Surface, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion

Ganymede, 0.16mm layer, 6 walls, 20% infill

Uranus, 0.16mm layer, 6 walls, 20% infill Classic Perimeter generator, 0,16mm layer height for increased detail, 6 walls to ensure a solid lamp no supports required, bridging works fine 10 mm Brim to ensure bed adhesion
