Zero Offset backplate for Sprite extruder Ender 3

Summary

21-10-2024: added zero_Y_backplate_ender3_v2 Now has option to add a spacer for CR touch

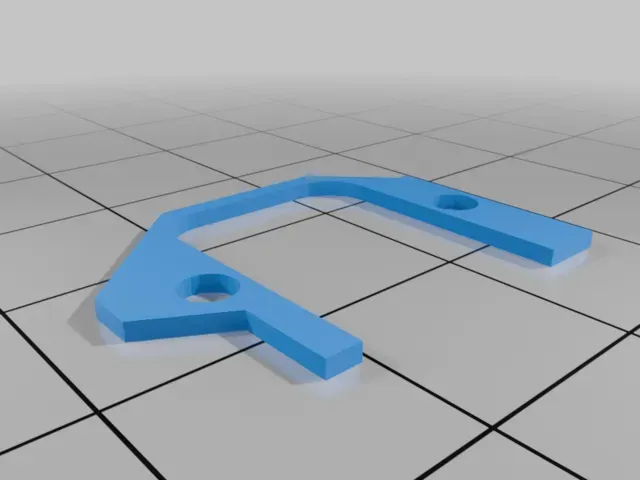

Also added a spacer with 1mm height, you can adjust height for for the height you want

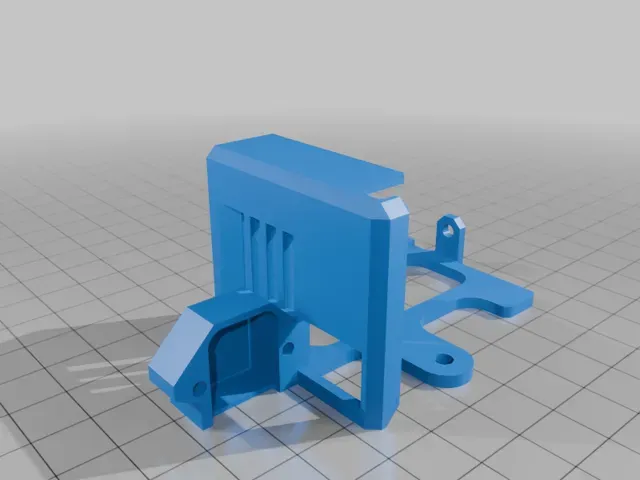

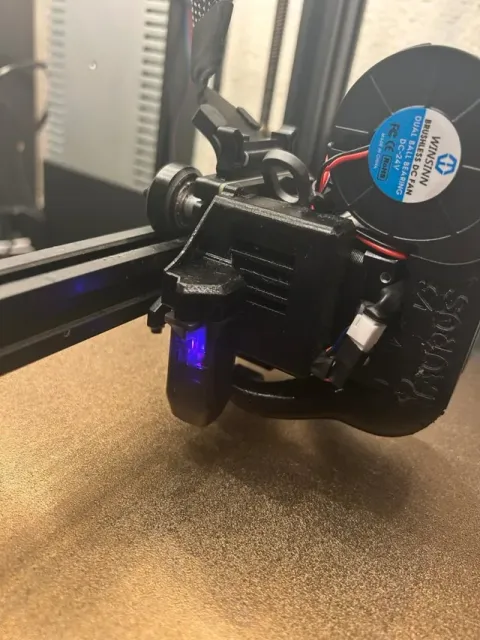

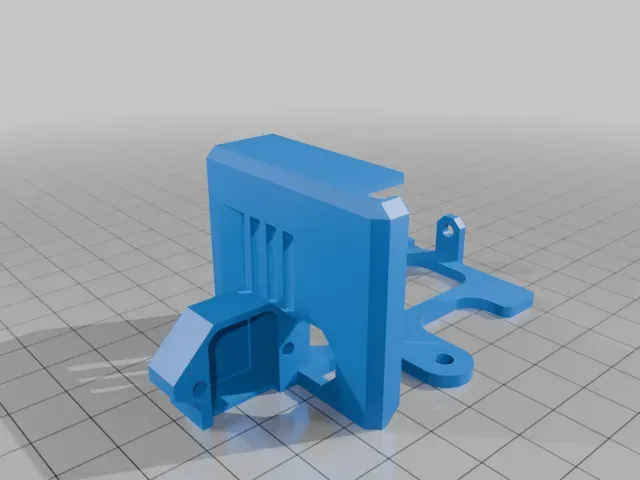

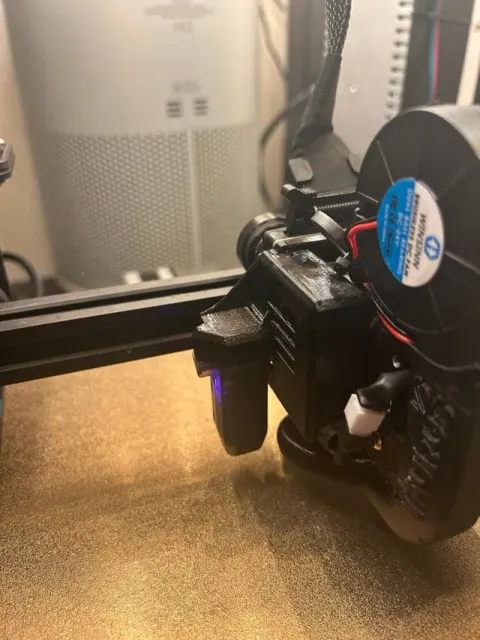

This Creality Sprite Extruder backplate relocates the CR Touch probe to X=-47mm, Y=0mm. It is a remix for Ender 3, to prevent slamming into the x endstop cover. This allows the bed mesh to be more accurate along the Y axis because the hotend lines up exactly with the probe (useful if the Y extrusion is warped). It also allows for more area of the bed to be probed.

Heatbreak fan cover included for better ergonomics when loading/unloading filament.

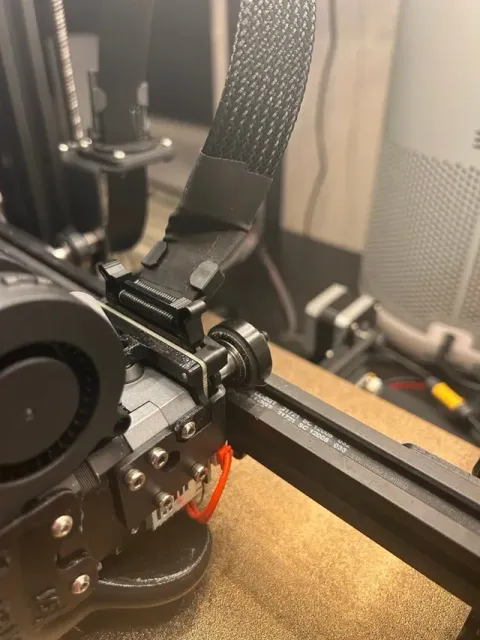

This part is designed to require no re-wiring or additional hardware.

This is a remix from: https://www.printables.com/model/333070-cr-touch-zero-offset-probe-backplate-mount

Offset settings

Offset X=-47mm, Y=0mm, Z= You need to calibrate Z for the correct value
