Poop bucket for S X1&P1(Removable & Honeycomb)

Boost Me You can support me for more designs for free Reels:

The honeycomb-patterned poop bucket is a filament waste container specially designed for the Bambulab X1C, P1S, and P1P series 3D printers. It is intended to collect the waste produced by the printer when switching between different colored filaments.

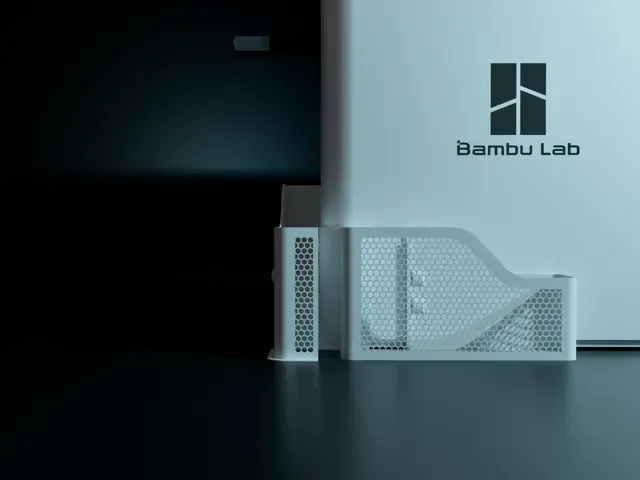

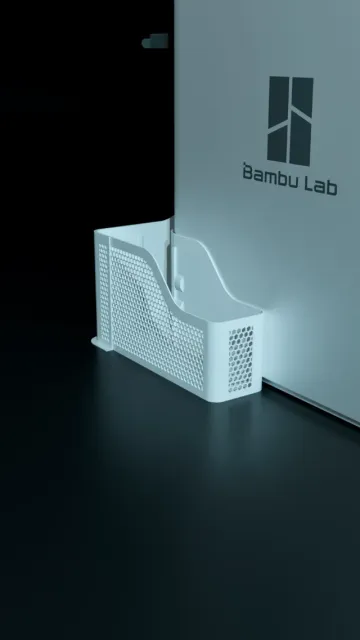

This basket is easier to access than the previous version when it is behind the printer, so the two are not the same design.

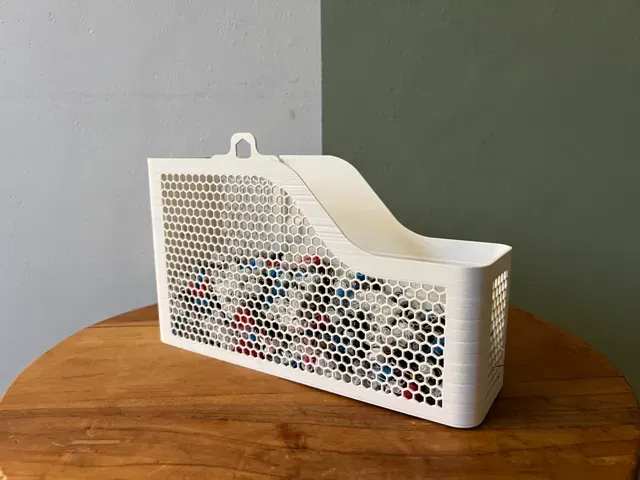

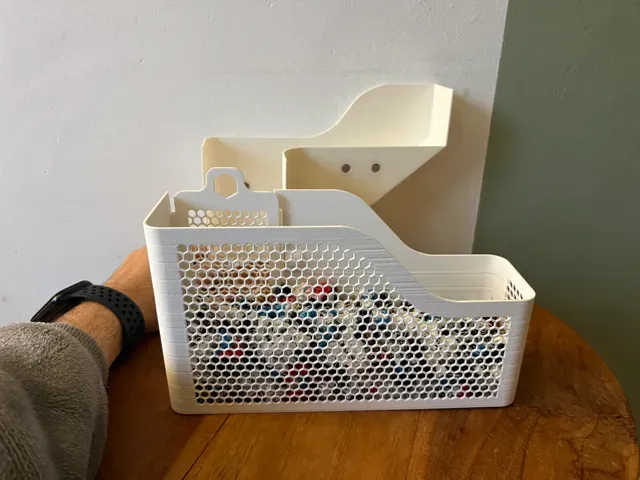

The honeycomb pattern gives the bucket an aesthetic appearance while also allowing you to easily monitor the fill level of the waste inside. With its large capacity, it can easily store filament waste weighing around 350 grams, reducing the need for frequent emptying.

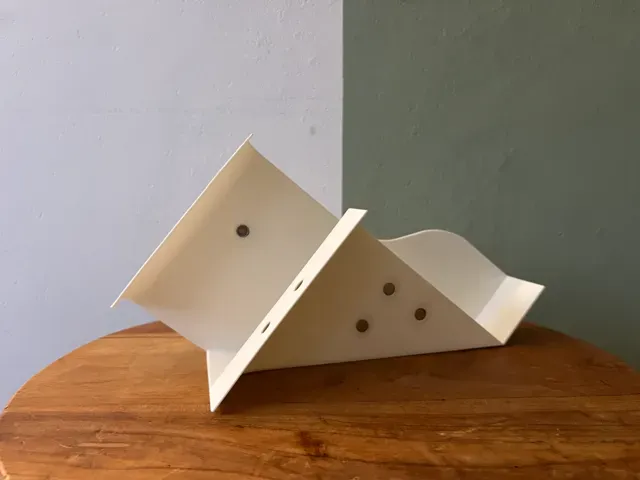

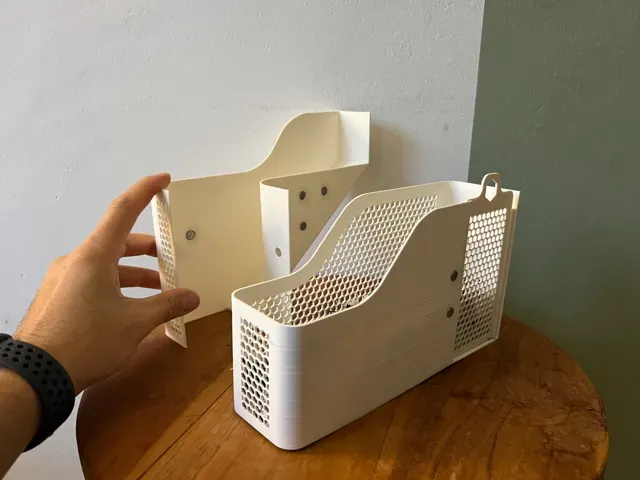

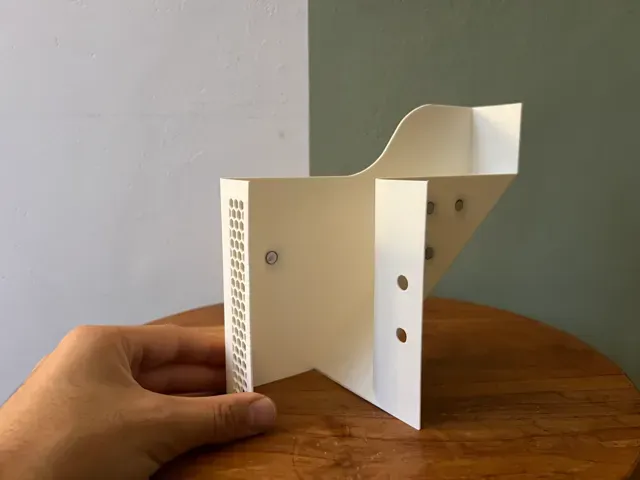

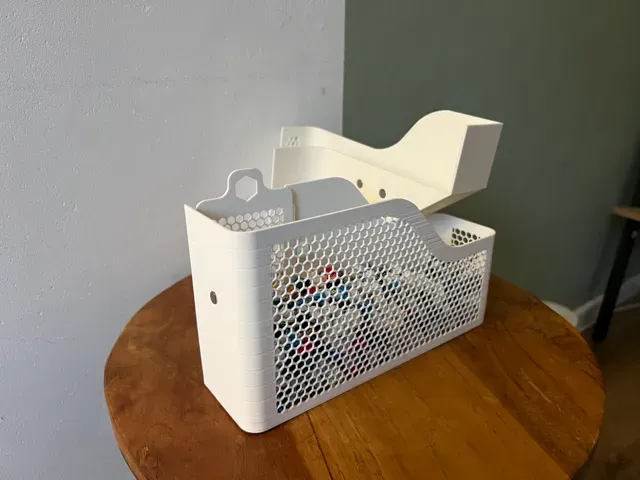

Magnets sized 3x8 mm can be placed into the bucket's magnet slots. The model consists of two main parts that can be easily joined using the magnets, and you can easily separate them to empty the filament waste. Additionally, you can use the lock before emptying the waste, preventing any filament waste from falling out through the gap when separated.

This accessory, offering both a functional and stylish solution, is ideal for making your 3D printing processes more organized and practical.

Print settings reminder:

Since this model has thin and long walls, it should be printed with Support Comb . It is easy to remove after printing with Support Comb. Attached is a 3mf file with all settings made. This file is only for Bambulab printers.

Note:

The first version I shared on my Makerworld page was designed as a single piece, but it caused some inconvenience for users when emptying filament waste. As a result, it has been redesigned to be detachable. Please note that the two designs should not be considered as one.

You can find it in the Bill of Materials section below.

- D8x3 mm Round Magnet (20PCS) - CA008 (6 PCS required)

About Support Comb:

Poop Bucket For A1 & A1 mini
