Print in Place (PIP) Bag Clip

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-SA
Можно печатать, изменять и продавать с указанием автора; переделки — под той же лицензией.
Форматы
OBJ
  • 177 Лайки
  • 779 Загрузки
  • 451 Напечатали
  • 429 В подборках
  • 28 Бусты
  • 69 Комментарии
  • 0 Просмотры

Автор:printer forge

Опубликована

Описание

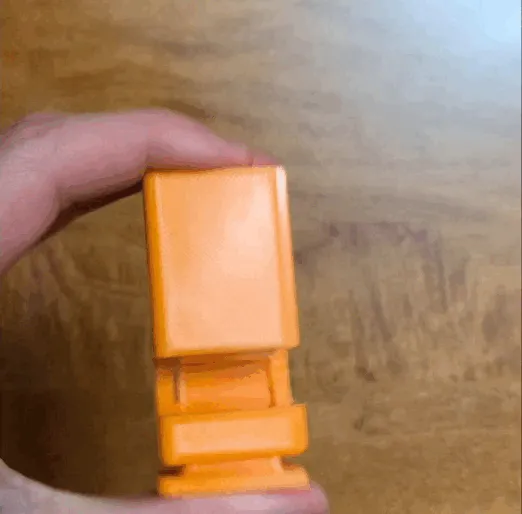

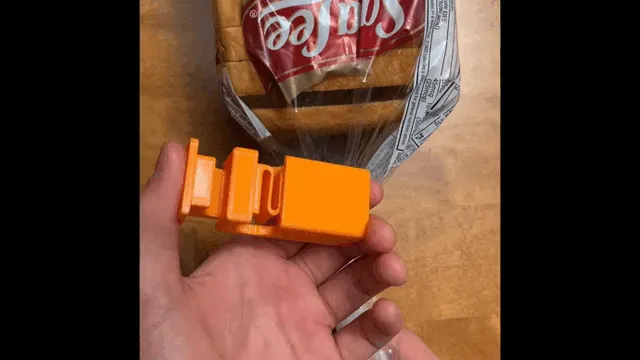

Keep all your bagged food fresh using this super strong, print-in-place, quick printing bag clip.

- Do not print with supports - Integrated guiderails (45 degree) keep spring from sliding out of the housing. - Once removed from build plate, it most likely won’t be tight, but if it is just squeeze it a few times and it will loosen to just the right tension. Final result is a strong printed spring that will retains it tension for a long time.

- the normal one is printed with normal tolerance and should be able to be printed - i printed these on my ender 3 pro with basic cura settings - if you‘re worried about tolerance issues print the one with higher tolerance but I suggest not due to the spring will want to spring out and will not be guided as easy along the guide rail - printed perfectly on ender 3 pro - .28 layer height - 75mm/s If you enjoy the model, please download and like it, share your build pictures, and share to others ;D

Also if you have any ideas or have questions feel free to ask

you can also send me any suggestions for improvements!

check out some of my other models! (you can click the image to go to the model)

Boost Me

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 5% infill I couldn't get this model to print without a raft since its outer wall is to thin, so I left that on my print profile.

The model I printed is the higher tolerance one but I included both in the profile.

(plate 1 - higher tolerance, plate 2 - normal)
