Slightly Over Engineered Trash Bag Roll Holder

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MF
  • 3 169 Лайки
  • 8 064 Загрузки
  • 6 288 Напечатали
  • 10 842 В подборках
  • 225 Бусты
  • 819 Комментарии
  • 0 Просмотры

Автор:MaxTee

Опубликована

Описание

Boost Me Your free Boost will help me buy materials for future designs! Thank you so much for your attention and participation :)

https://www.buymeacoffee.com/maxt

----------------------

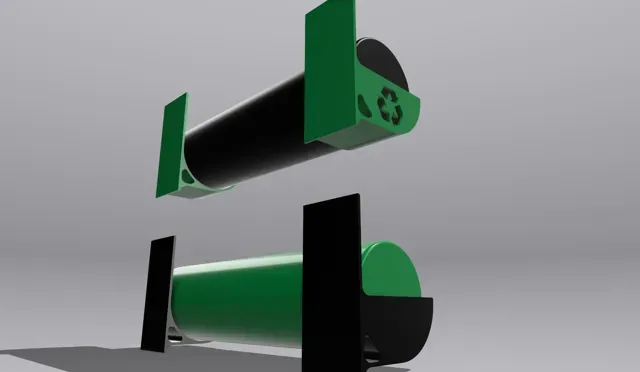

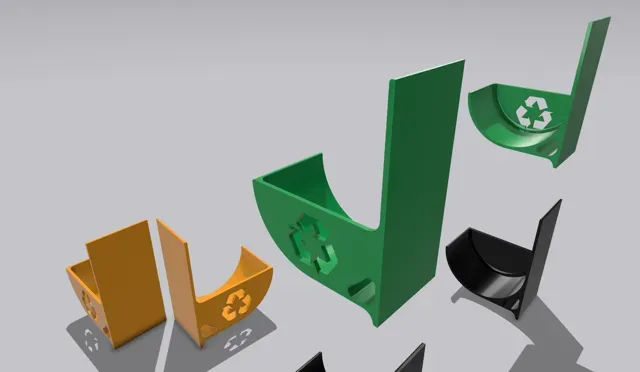

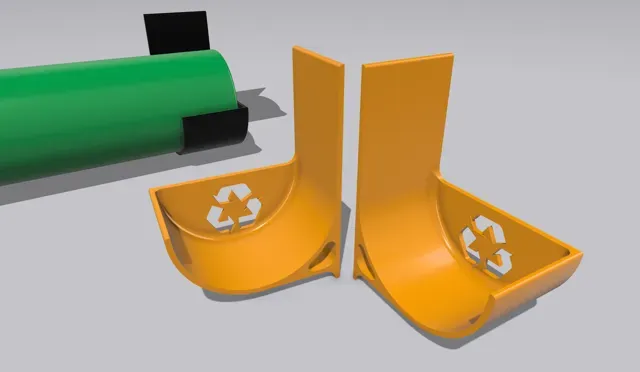

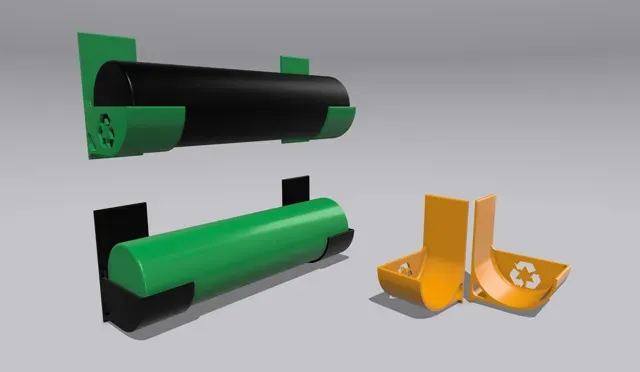

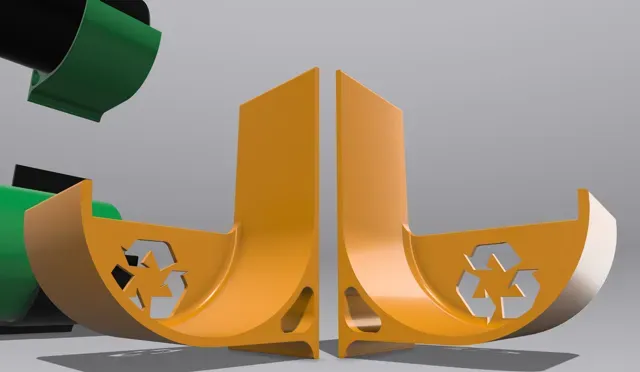

2 versions in one package:

- Without a recycle logo on the side - With a recycle logo on the side Why should you use this model and not the others?

- It won't break, ever (as long as you use it for the trash bag rolls) - The bag roll will never fall out through one of the sides - The bag roll is very easy to pick up - Enough extra spacing to fill a 60mm Ø bag roll without a problem, but you can resize the model as you please to fit bigger bag rolls - Can be used to accommodate any length of the bag rolls by simply spacing the left and right sides out as needed (I suggest adding an extra 0,5cm on each side of the bag roll) - Can be mounted using double-sided tape or screws - Because you've just spent a minute reading the reasons why to use this particular trash bag roll holder and not the others. If you're still here, we know you mean business - you need a solution that just works. This holder got you covered! The model will fit on Prusa Mini+ (180x180) Feel free to size it up or down as you wish

Print: 0.2-0.3mm Nozzle: 0.4mm Perimeters: 3 (much more important vs infill percentage!) Support: Not required Brim: Not required Infill: 15-30% Fill pattern: Support Cubic

Happy Printing!

Boost Me Your free Boost will help me buy materials for future designs! Thank you so much for your attention and participation :)

Руководства и профили печати

Профили печати и шаги

100%_Slightly Over Engineered_Trash Bag Roll Holder_0.16mm layer, 2 walls, 15% infill

110% in PLA 3 walls 0.2mm layer height

3 walls

15% rectilinear infill

Scaled to 110%

0.2mm layer, 2 walls, 15% infill 用的是瑞本29的petg透明,首层速度和流量我设的很保守,建议改下

175%_0.16mm layer, 2 walls, 15% infill

3walls w&w/o logo - 0.2mm layer, 3 walls, 15% infill The Designer in the description clearly suggests to use 3 walls.

While this design already has multiple print profiles, none of them followed this suggestion, while including both versions with and without the logo.

This profile does: - include the version with and without the logo

- 0.2mm layer height

- 3 wall loops

- 6 top shell layers

- 4 bottom shell layers

You can simply scale it to the sizes you need.

0.16mm layer, 2 walls, 15% infill 0.16mm Layer Height

Normal settings

Works good for small and medium bags (Aldi Süd)

0.16mm layer, 2 walls, 15% infill This fits the Glad “to be GREEN" 28 pack of Medium bags. (Sold in Australia).

120% scaled in the single axis to hold a wider bag.

0.2mm layer, 1 walls - 13.5g with Fuzzy Skin and Spiral Vase

240% size. 0.28mm layer, 3 walls, 10% infill PETG. Larger to fit Kirkland 13gl bag roll. Cutouts on side and reduced layer height to conserve filament and time.

Multiple plates to suit your printing preference.

Also included version without cutouts.

0.16mm layer, 2 walls, 15% infill, Brim added

0.2mm layer, 2 walls, 15% infill Ich habe einen Brim hinzugefügt, um ein verziehen des dünnen Endes zu vermeiden.
