VESA Mount for Lenovo & Dell Tiny PCs (75 / 100mm)
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- STL
- 257 Лайки
- 680 Загрузки
- 397 Напечатали
- 891 В подборках
- 28 Бусты
- 66 Комментарии
- 0 Просмотры
Описание

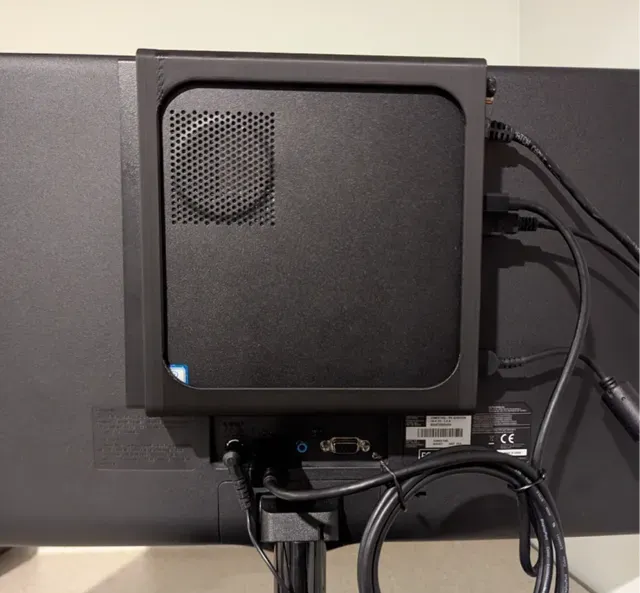

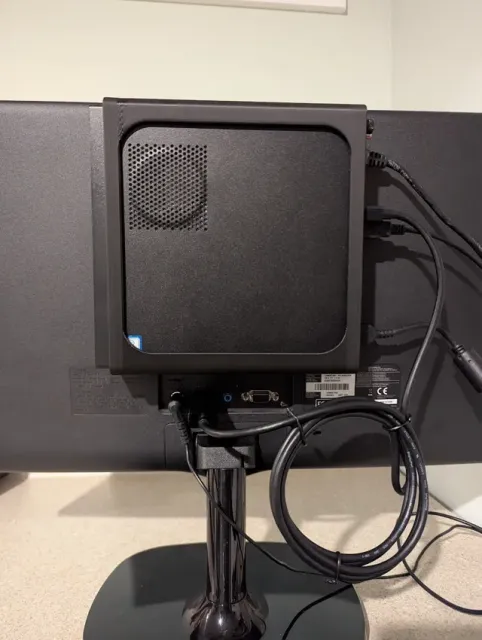

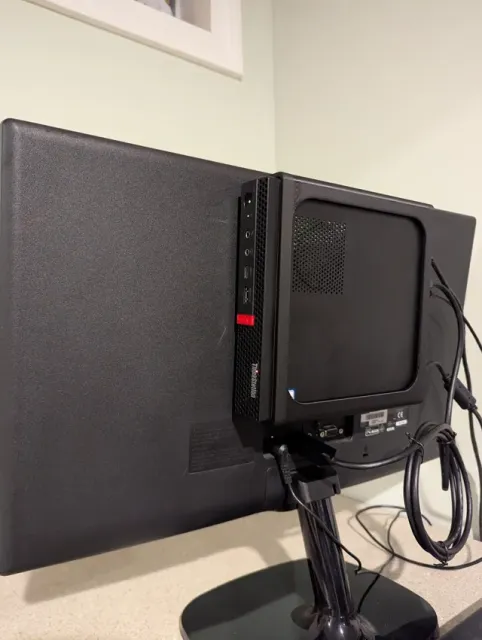

This lightweight yet durable VESA mount is designed to securely hold Lenovo and Dell Tiny Form Factor (TFF) or Micro Form Factor (MFF) PCs, making it perfect for saving desk space or mounting behind monitors.
Key Features:

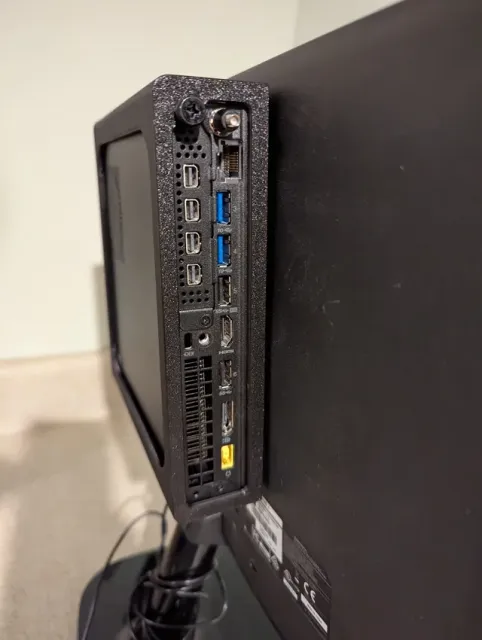

- Compatibility: Fits PCs with dimensions of 1.4" x 7" x 7.2". - VESA Standard: 100x100mm & 75x75mm mount pattern profiles available. - Secure Locking: Includes a screw hole to lock the PC in place for added security. - Lenovo Models (according to online specs) : Tiny systems (e.g., M600, M700, M710, M715, M715q, M900, M910, M910x), and ThinkStation Tiny systems (e.g., P320). - Dell Models : YMMV. I uploaded a profile for the Dell Optiplex 3060. If you Dell does not fit this or the other profiles, feel free to let me know the dimensions and I can custom make a new profile. While dimensions are based on manufacturer specs, precise fitment cannot be guaranteed for all models. Ideal for most TFF/MFF PCs. If your TFF/MFF is too snug, share the dimensions with me, and I’ll adjust the model to ensure a proper fit.
I strongly recommend using a material stronger than standard PLA for this print. I'm currently using IIID Max PLA+, which is more durable than regular PLA, simply because I ran out of PETG. Please note that I cannot be held responsible if the mounts break due to weaker materials or any other reasons.
Boost Me Do you enjoy this model? You can help me grow as a designer by using MakerWorld's Boost feature—for free! Boosting increases the visibility of my work, helping more creators discover it. Simply click "Boost" on this page to support my designs without spending a dime. Every boost makes a difference—thank you for your support! 🚀
Руководства и профили печати
Профили печати и шаги

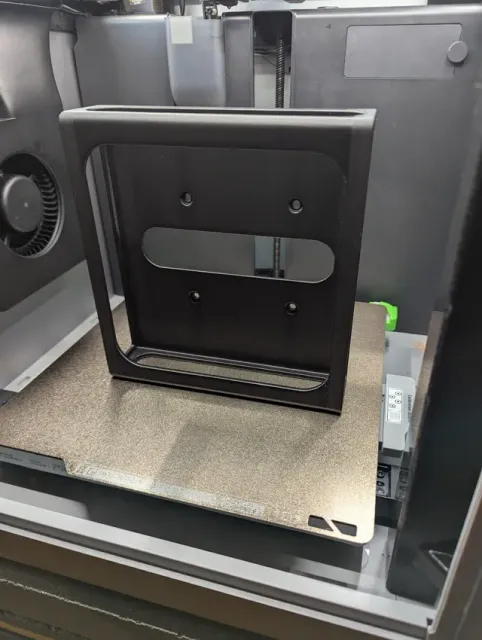

75x75mm - PLA - 0.2mm layer, 2 walls, 15% infill This is for VESA 75x75mm

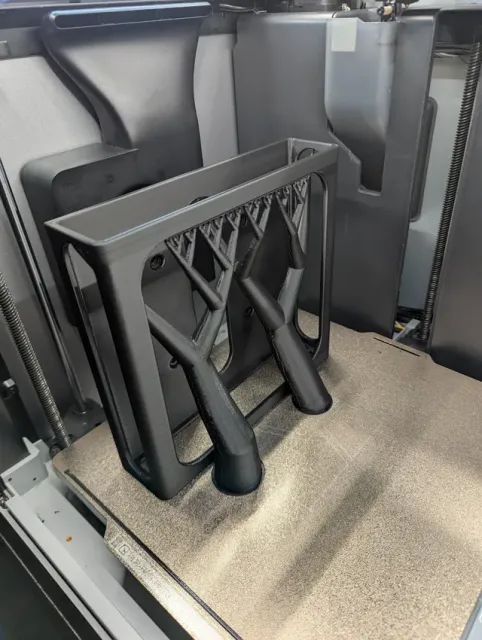

- 0.20 mm layer height - 4 Walls - 15% Gyroid Infill - Auto Tree Supports (this profile's supports are customized. I highly recommend using this profile supports that break off easily)
100x100mm - PLA - 0.2mm layer, 4 walls, 15% infill This is for VESA 100x100mm
- 0.20 mm layer height - 4 Walls - 15% Gyroid Infill - Auto Tree Supports (this profile's supports are customized. I highly recommend using this profile supports that break off easily)
75x75mm - PETG - 0.2mm layer, 4 walls, 15% infill This is for VESA 75x75mm
- 0.20 mm layer height - 4 Walls - 15% Gyroid Infill - Auto Tree Supports (this profile's supports are customized. I highly recommend using this profile supports that break off easily)
100x100mm - PETG - 0.2mm layer, 4 walls, 15% infill This is for VESA 100x100mm
- 0.20 mm layer height - 4 Walls - 15% Gyroid Infill - Auto Tree Supports (this profile's supports are customized. I highly recommend using this profile supports that break off easily)
PLA - Dell Optiplex 3060 - 184x40.5mm - VESA 100/75mm This is for a Dell Optiplex 3060 with the rubber feet. This mount features both 75x75mm & 100x100mm VESA mounts in one.
- 0.20 mm layer height - 4 Walls - 15% Gyroid Infill - Tree Supports (the supports in this profile are customized. I highly recommend using this profile supports that break off easily) PLEASE LET ME KNOW WHICH OTHER MODELS THIS FITS SO I CAN ADD THEM TO THE COMPATIBILITY LIST. Thank you!
