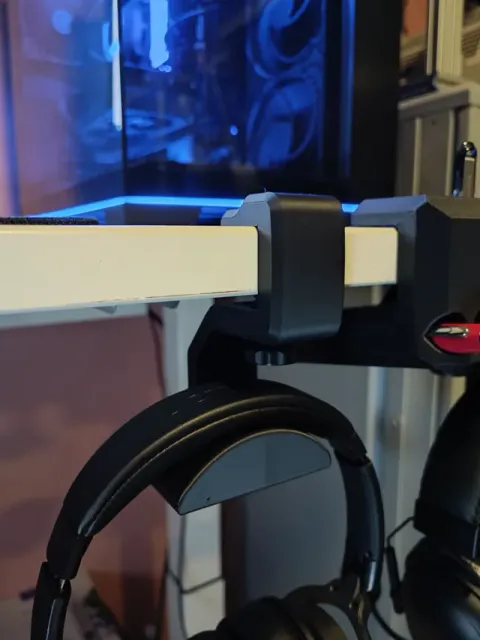

Desk Side Headphone Hanger Clamp Headset Stand — Фото 2 из 3

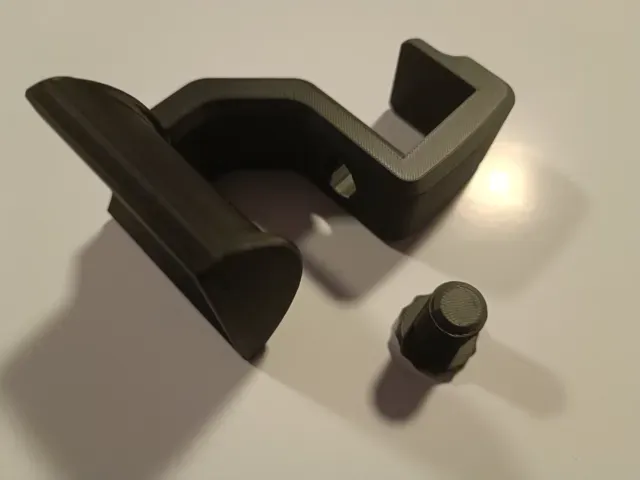

Desk Side Headphone Hanger Clamp Headset Stand — Фото 3 из 3
3D-модель · MakerWorld

Desk Side Headphone Hanger Clamp Headset Stand

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MF
  • 2 690 Лайки
  • 16 195 Загрузки
  • 12 107 Напечатали
  • 8 510 В подборках
  • 285 Бусты
  • 910 Комментарии
  • 0 Просмотры

Автор:SimplePrints

Опубликована

Скачать на MakerWorld

Описание

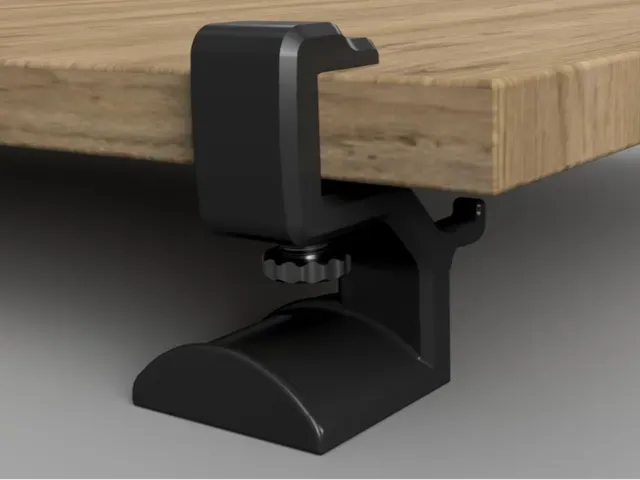

This headphone holder clamps to the side of your desk to store your headphone space-efficient under your desk. On the back side it has a little hook to store for example a charging cable.

The hanger works with tables from 0-41mm thickness with the corresponding main body version and screw.

Choose the model you need according to the following list:

- For desk Thickness 0-6mm = Main Part 0-16 + M16x30 screw - For desk Thickness 6-16mm = Main Part 0-16 + M16x24 screw - For desk Thickness 16-21mm = Main Part 16-31 + M16x30 screw - For desk Thickness 21-31mm = Main Part 16-31 + M16x24 screw - For desk Thickness 31-41mm = Main Part  31-41 + M16x24 screw For most of the combinations there are already print profiles.

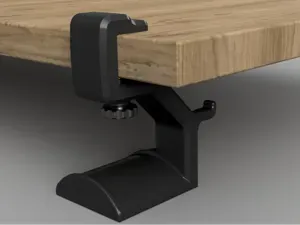

If your Headset has a very big headband you might want this bigger version of the hanger: Wider Desk Headphone Hanger Clamp Headset Stand by SimplePrints - MakerWorld

If you like this model and find it useful, I’d really appreciate it if you could  leave a like and follow my MakerWorld profile .

Boost Me If you want to support me even more, a Boost would be absolutely awesome! 🚀 Thank you for supporting my work and helping me create more useful designs!

Руководства и профили печати

Профили печати и шаги

For desks 15-21mm thick / 0.2mm layer, 3 walls, 20% infill Supports desks from 15 to 21mm thickness.

3 walls and 20% infill for good rigidity.

Looks especially nice printed in matte PLA

For desk 21-31mm thick 0.2mm layer, 3 walls, 20% infill Supports desks with 21-31mm thickness

3 walls and 20% infill for good rigidity.

Looks especially nice printed in matte PLA

For desk 6-16mm thick 0.2mm layer, 3 walls, 20% infill

For desks 31 - 41mm thick / 0.2mm layer, 3 walls, 20% infill Since there was no profile for the 31 - 41mm clamp i created this one.

It includes the headset hanger with a 31 - 41 mm clamp and the M16x24 screw

41-51mm desk plate, 0.16mm layer, 2 walls, 15% infill since the profile for 41-51mm was missing, I edited the 31-41mm model for the larger desks.

Will work from 41-51mm desk plates. You need the additional screw. Use the M16x24 one (12mm strength of holder + 12 mm any desk 41-51mm.

In the end, for the desk from 46-51, the screw could be 5mm shorter.

Wider+Stronger 31-41mm, 0.2mm layer, 5 walls, 20% infill Wider version to fit my Hifiman Ananda Nano.

Made it stronger and added an even shorter screw.

31-41 mm desk
