Samsung Odyssey Monitor - VESA Adopter

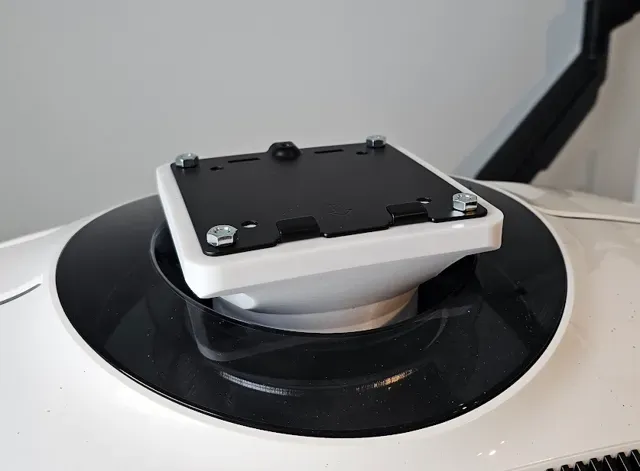

This is a design of a VESA adopter designed to fit Samsung Odyssey G9 screens. Adapter is reinforced with M8 Bolts.

Hardware list:

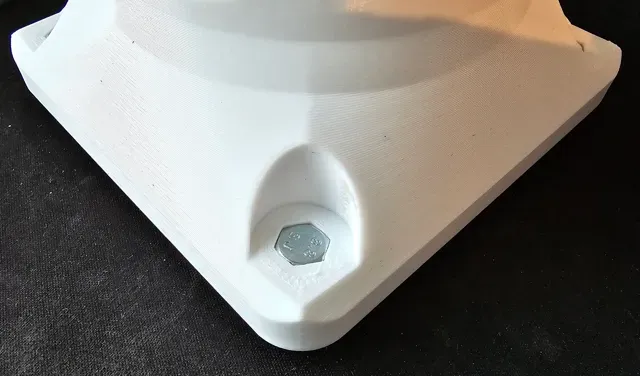

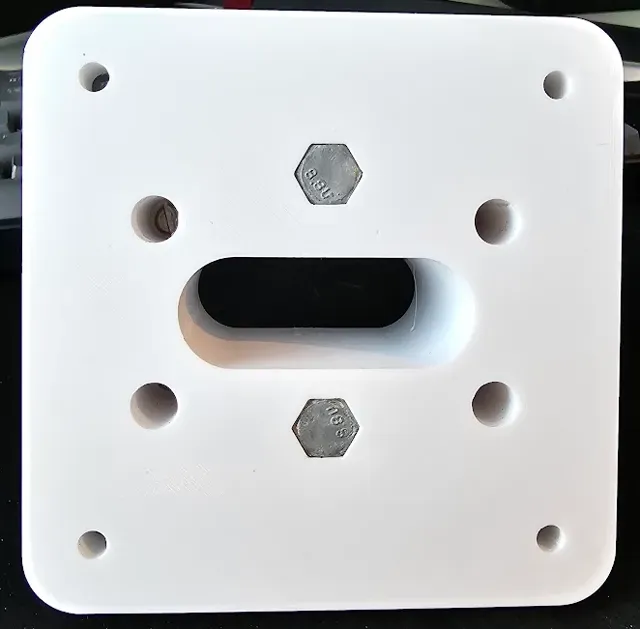

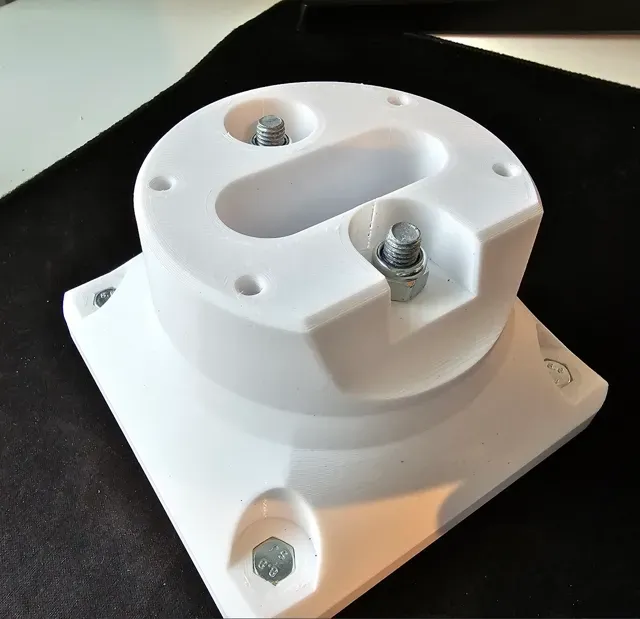

2 x M8 x 70 mm - to reinforce 3D printed part with clamp force and take up the bulk of sheer force

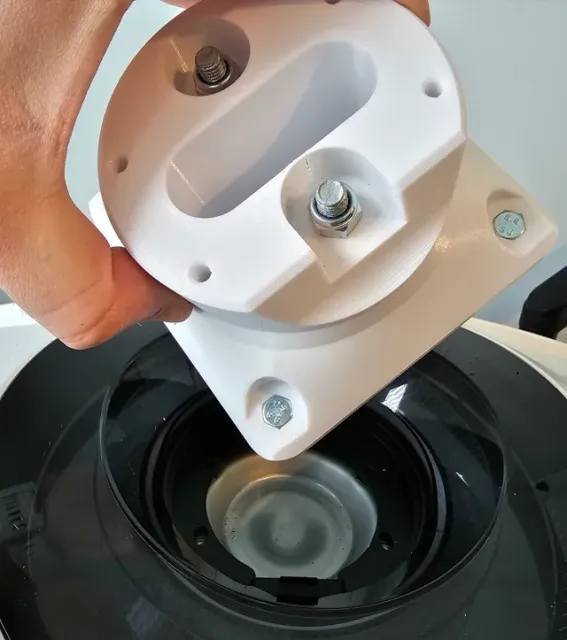

4 x M4 x 40 mm - to screw into the backplate of the monitor

4 x M6 x 20 mm - to secure adapter to vesa mount

Fits following monitors

Samsung Odyssey G9/G95T/G95A/Neo, LS49A950UIU, LF49HG90DMU, LC49G97TSSNXDC, CRG9 Dual QHD Curved QLED Gaming Monitor.

Printed with 0.6mm nozzle, PETG with buildplate supports. To pop supports drive the bolts through the wrong end.

Stl, Slicer 3mf file with all settings. Also attaching Fussin 360 file for easy modification and remixing.
