Titebond Glue Bottle Holder, Upside Down

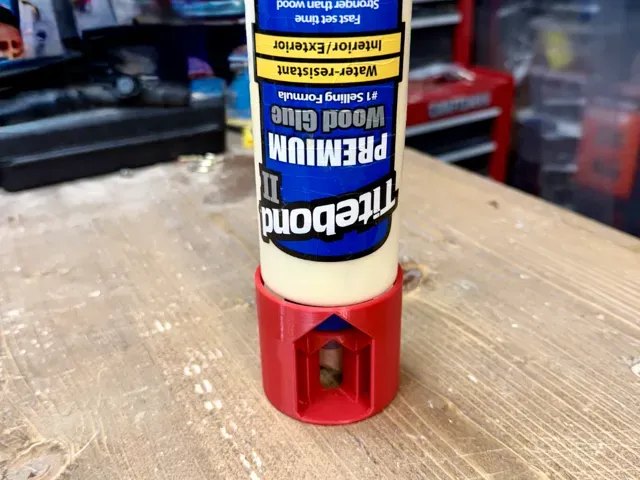

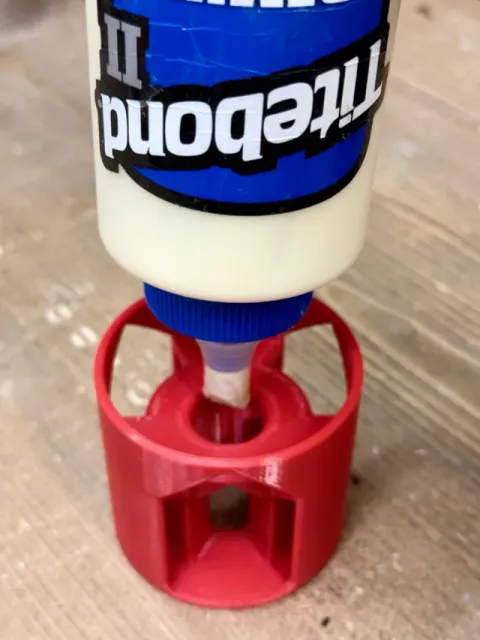

This is a 16 oz Titebond glue upside-down holder. This makes it easy using the last third of the bottle without needing to wait for it to flow to the tip.

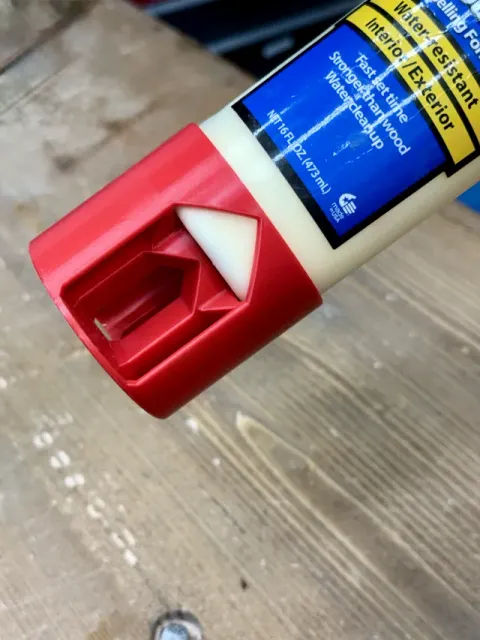

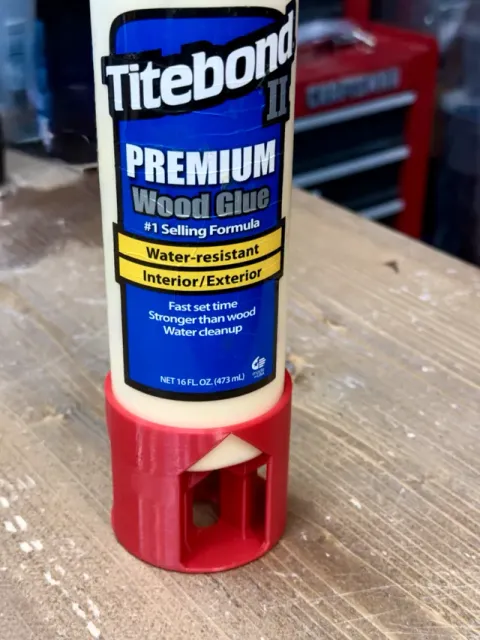

It also fits the base of the bottle, so it does take more space when you are not storing your glue inverted. It is a loose friction fit making it sort of a reverse cap when used this way.

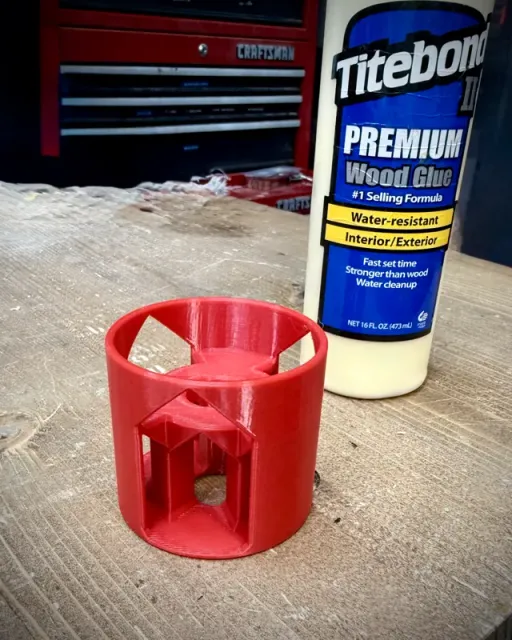

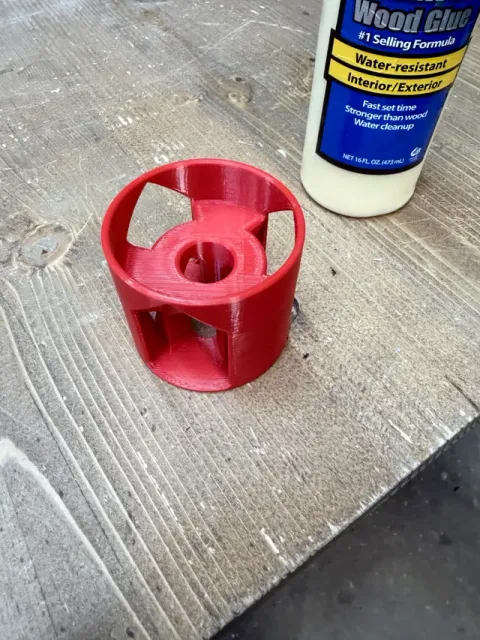

It was designed not to need supports. I printed it in PETG. All horizontal surfaces have a chamfer, and nearly all vertical corners have a round over.  This makes it a forgiving design that should work with whatever filament you use in your shop or the last 37g you are trying to use. Try throwing it on a plate with something else and purge into it.

Please post pics of your prints!

NOTE : This does not work with Gorilla glue bottles or sizes other than the 16 oz Titebond. Please also pick the correct print profile. There is one for the regular 16 oz Titebond (I, II, & II) and one for the 16 oz Quick n Thick Titebond bottles.

To help you in picking a print profile, here is a recap:

1st (PETG: 0.24mm layer, 2 walls, 10% infill) Original Model. Shorter than the rest so Quick n Thick's caps make this a poor choice

2nd (0.2mm layer, 2 walls, 10% infill Quick n Thick Titebond) Taller version that works for TightBond Quick n Thick (and should also work for the regular I, II, and III…it is just a little taller)

3d (With #8 screw tabs) taller Quick n Thick with screw tabs for mounting to bench or shelf

4th (TightBond tight grip version - PLA) taller Quick n Thick with grip fins to hold the bottle securely and needs two hands to remove

5th (Add lid closer/opener, 0.2mm layer, 2 walls, 15% infill) A model by Myrg with a lid opener and closer built in (shorter Original height for I, II, and III)

6th (Multiboard connector added - 0.8mm nozzle, 0.4mm layer) a version by StickySquirrel with multiboard attachments to stick to your multiboard. (Quick n Thick height)

– - – - – - – - – - – - – - – -

Update 11 May 2026: Added a tight grip version, requested by @user_2443233784 for use on jobsites. Grip fins were added to hold the bottle tightly and require two hands to remove.

– - – - – - – - – - – - – - – -

Update 23 Jan 2026: Myrg added a new print profile that adds two new features. This remix adds an inner collar so that the lid will be closed when it is inserted, and it adds a reinforced lid opening tool.

– - – - – - – - – - – - – - – -

Update 1 Feb 2025: Added profile with #8 screw tabs to permanently attach to glue station, shelf, etc. based on @user_3422471204 's suggestion.

The basic profile is shorter. The Titebond Quick n Thick print profile is slightly taller to give this bottle more support with its slightly different cap (works for regular Titebond 16 oz bottle too!). The #8 screw tab profile is the taller upside down glue bottle holder + 3 tabs that take #8 wood screws.

– - – - – - – - – - – - – - – -

Update: Added a print profile with a 14mm taller model to accommodate Titebond Quick n Thick 16 oz bottles. Thanks, @user_3422471204 , for flagging the fit issue and taking measurements!

– - – - – - – - – - – - – - – -
