Ender 3 (Pro) PTFE Tube Guide (Hotend)

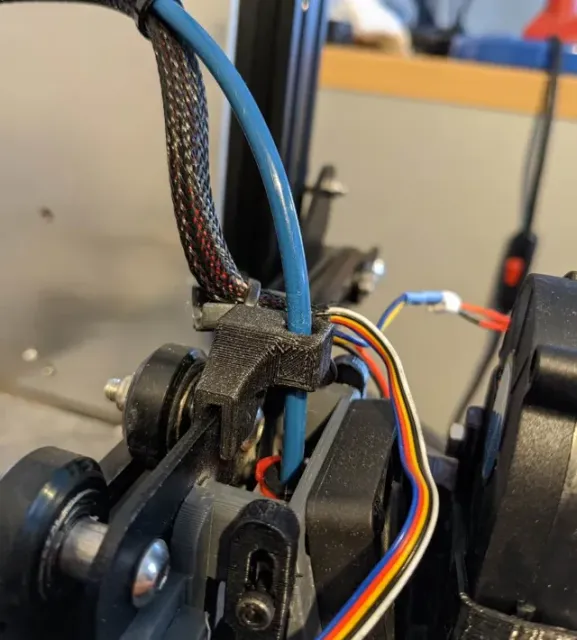

Hello there this is a simple PTFE Tube Guide for the Ender 3 (Pro). It helps to guide the PTFE Tube (Filament) straight into the hotend and prevents twisting and eventually blockage of the hotend/PTFE Tube.

It's designed for a Micro Swiss Hotend and installed on a Ender 3 Pro but it should also work with the Ender 3 and default / pre installed hotend.

Installation

To install the guide you have to remove the installed PTFE tube from the hotend.

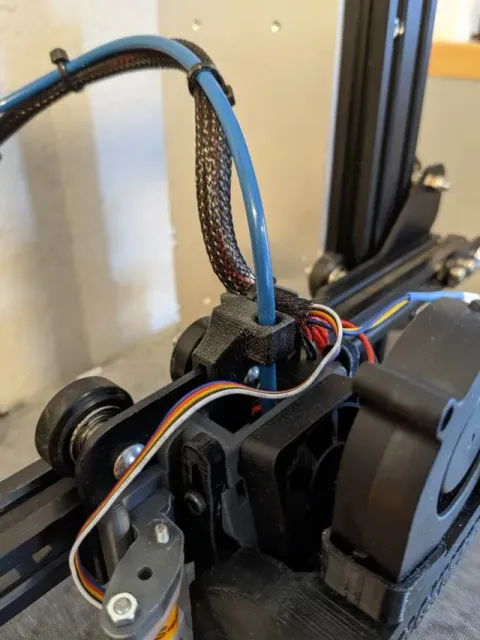

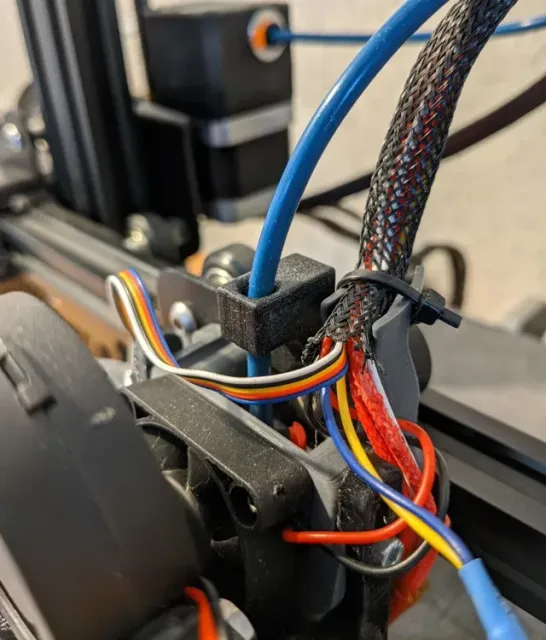

Pin on the Guide and route the PTFE tube trough the hole and connect it to the hotend like normal.

Fusion360 file to modify yourself is provided. Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.16mm

Infill:

20%

Filament:

Prusament PLA Galaxy Black Notes:

Print the STL in the given orientation. Supports are needed (Touching the Buildplate only).

Category: 3D Printer Parts
