Kitchen roll Holder - Paper towel - Küchenrolle

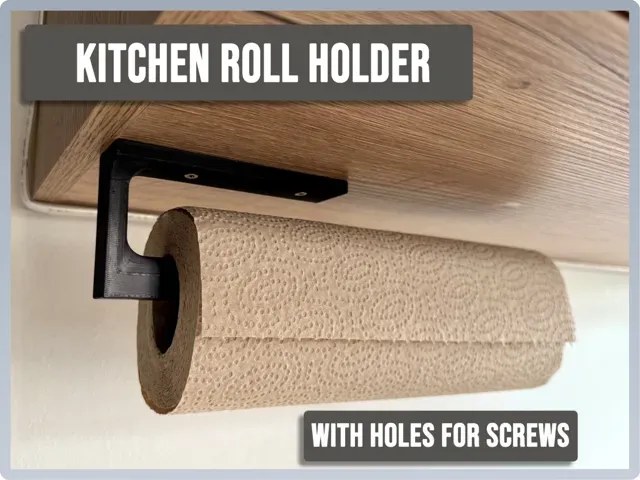

Kitchen roll holder - version with holes for mounting with screws - please note, there is also a download without holes for mounting with double-sided tape - but I recommend to screw the holder!

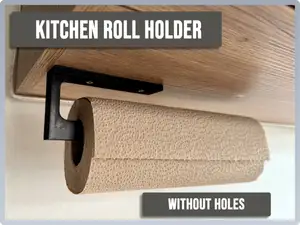

You can find the Version without holes here: https://makerworld.com/de/models/955596#profileId-924460

Please note: If you are using big size rolls, have a look at my new Design for bigger rolls up to 17cm diameter: https://makerworld.com/de/models/1901038-kitchen-roll-holder-paper-towel-big-roll-version#profileId-2037455

Update:

I added a new STEP File and 3mf Profile for a Version with a bigger Base Plate. I also repositioned the Holes. So they are now a bit beside the Arm for the Kitchen Roll - so the screws are more accessible for mounting - especially with bigger screws drivers.

Some Users want a Version like this, so that mounting is a bit easier. I hope you like it! The Original Version is still available for those who want a low profile base Plate.

Boost Me If you like the Model and Profile it would be great if you support my Work with free Boosts :) The Design:

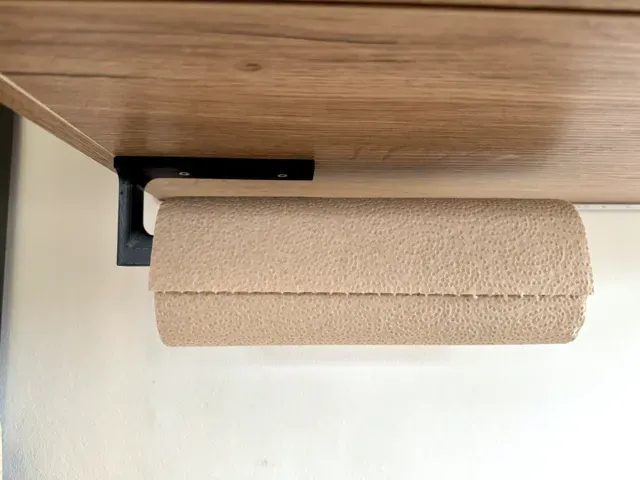

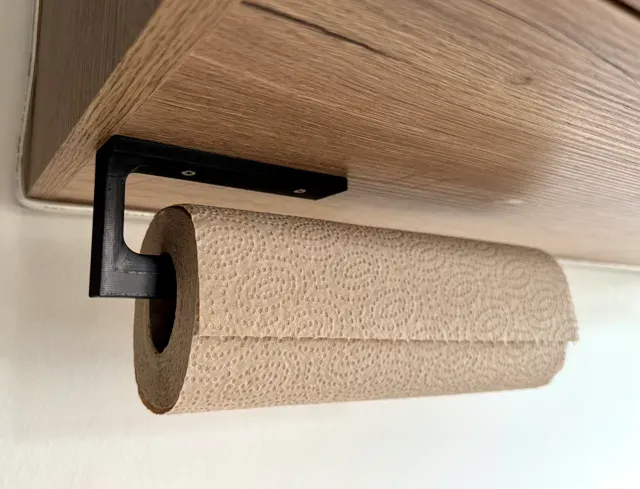

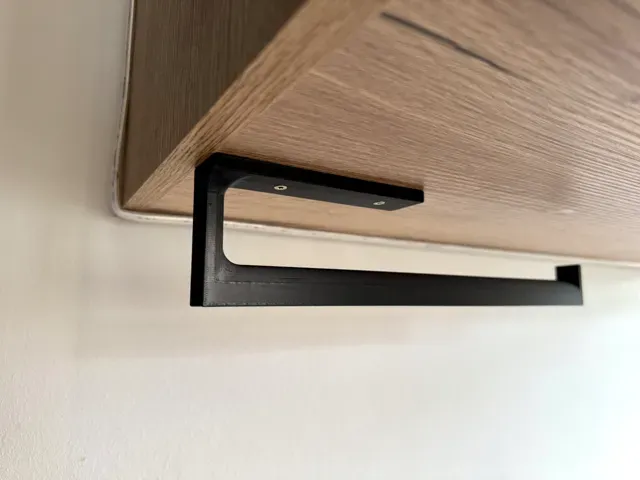

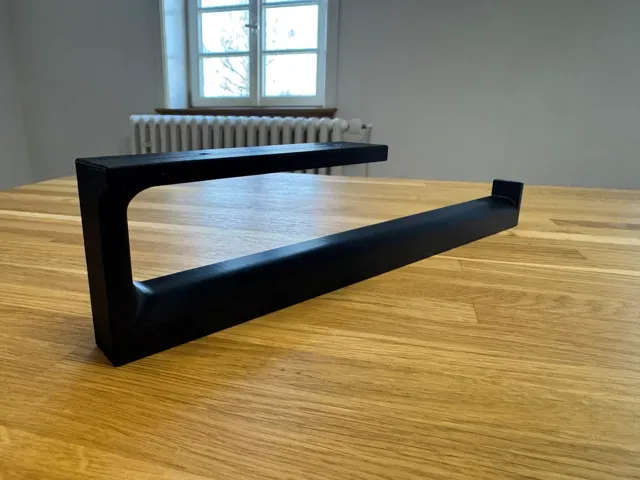

I have designed a sleek and minimalist kitchen roll holder - it is suitable for the standard roll width of 26 cm (+ some play in the width)

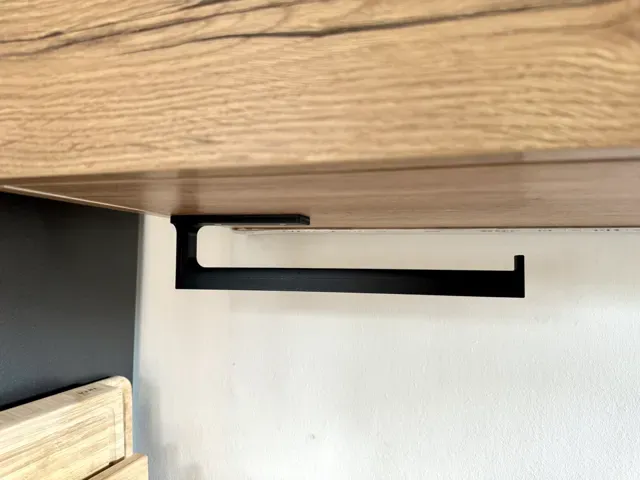

The roll is simply slid over the end piece and is then held securely.

Please make sure that your kitchen rolls are suitable! It is designed for the standard roll with around 26cm width (+ some play in the width) and a max. diameter of around 11,5 cm (also with some play)! Especially in the USA, there also seem to be larger kitchen rolls available.

If you are using bigger Rolls, you find my Big Roll Holder Design here: https://makerworld.com/de/models/1901038-kitchen-roll-holder-paper-towel-big-roll-version#profileId-2037455

Thanks to the curves, the holder fits very well into the kitchen and is suitable for both very modern and classic kitchens.

The curves allow the roll to be unrolled very cleanly and without bouncing.

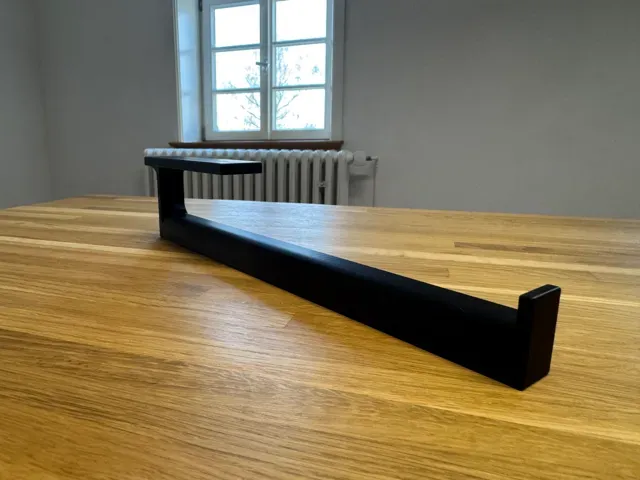

The holder has also been designed to be very slender in order to waste as little filament as possible, but still be sufficiently stable.

I recommend printing in PETG for optimum stability

The screw holes are positioned in such a way that the screws are easily accessible with normal screwdrivers but are not too conspicuous.

Print Settings:

Recommended Material: PETG - I used Bambu PETG HF

Layer Height: 0,2mm

Speed: Standard Settings for PETG

Wall Lines: 4

Upper shell Layer: 5

Under shell Layer: 4

Infill: 20% Gyroid

Support: set correctly in the Profile for the Holes
