Описание

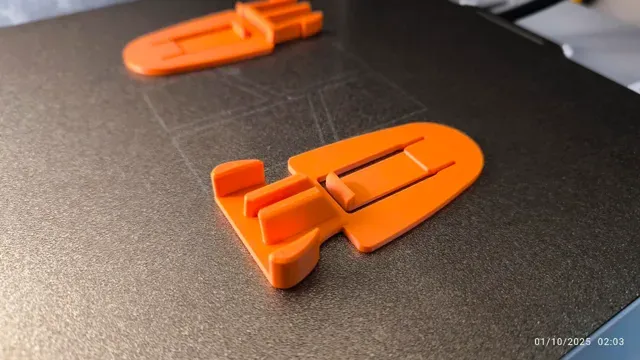

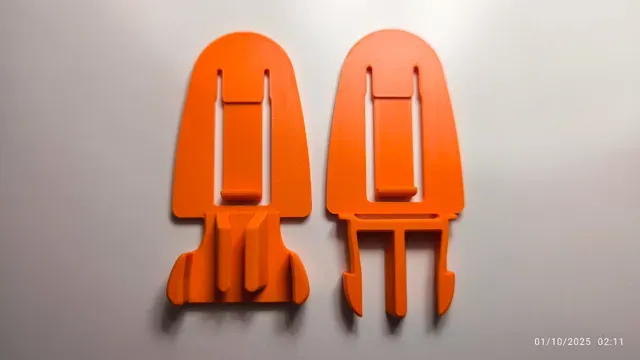

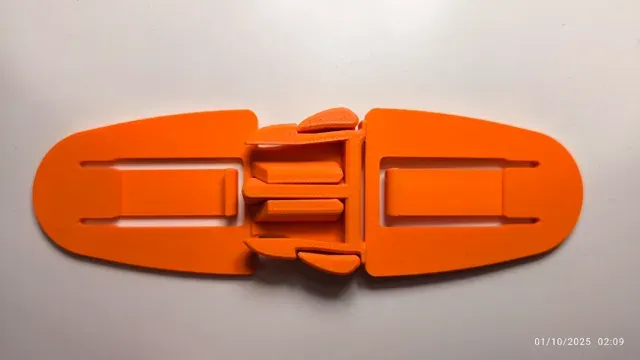

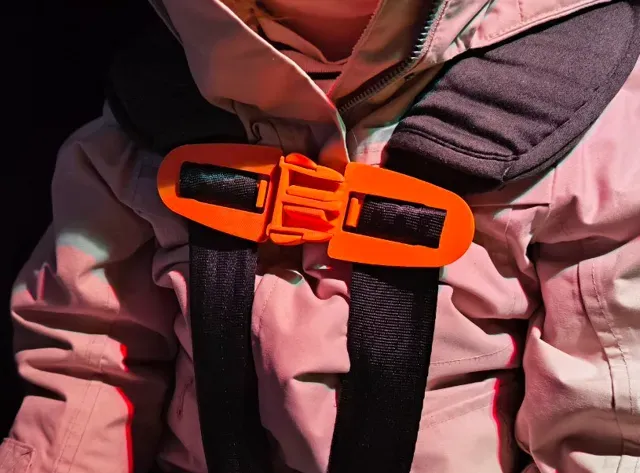

This 3D-printed snap buckle keeps your child's car seat straps in place, preventing them from slipping off their shoulders . It's safe, strong, and affordable. Ideal for winter time, when kids often have thick jacket under the straps. This tool is to help keep the straps closer to maximize safety design of your baby car seat.

WHY IMPORTANT: Winter jacket in a baby car seat endanger your kid (2min video). This tool is to help prevent that danger.

Important characteristics:

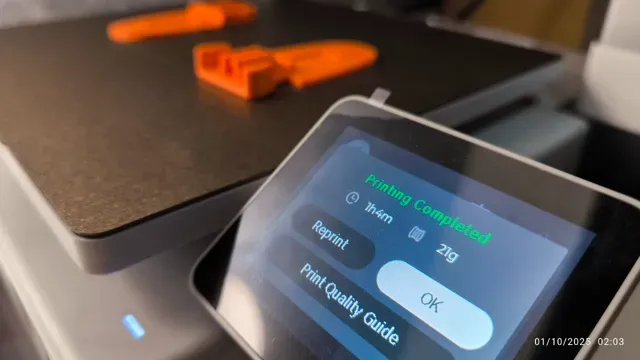

- Fits belts of 35mm. - Recommended in Bambu PETG-HF (temp resistance, flexing) or Bambu TPU95-A. - Snap Buckle Clip is strong. 4y baby can't easily open it during the ride. - Recommended visible kids-friendly colors. - Rounded safe edges. - 1h, 20g fast print that saves you $5-10. Oh and helps keep the baby safe too ;) - Print profile optimized for perfect PETG-HF: a bit slower and hotter for better quality and layer adhesion. If you have any suggestions for improvement or tweaks - your voice in the comments means a lot to me. Thanks!

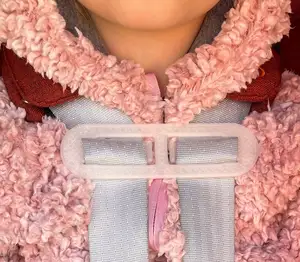

Disclaimer: 1) This is a quick remix of 2 separate creations, remixed solely in Bambu Studio: a) Strong Snap Buckle by @Alex b) Seat belt buckle for a child car seat by @Witwi

2) This was not tested by any safety org, so I am not taking any responsibility of use or misuse of this seat belt position enforcing tool. The idea is simply to prevent kids from getting out of loosened up seat belts, and to help increase safety when kid is seated in a thicket jacket.

Boost Me If you appreciate my time and idea of this unique model remix here, feel free to follow, boost and share picture of your print.

This will help me create more and better, which ultimately may benefit YOU. Boost doesn't cost you anything. Thank you!

Руководства и профили печати

Профили печати и шаги

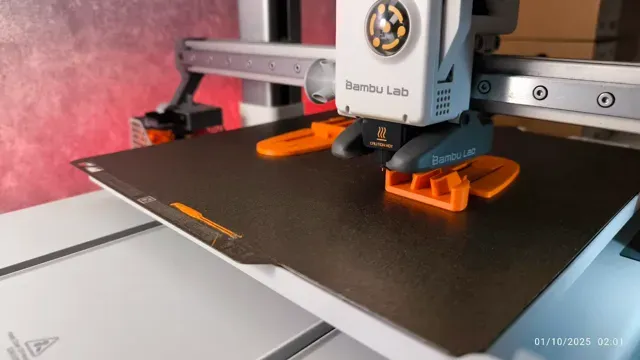

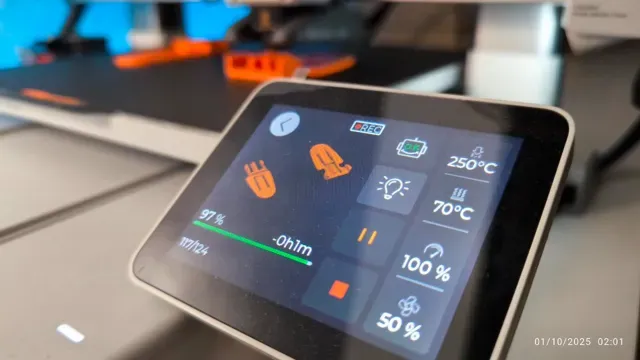

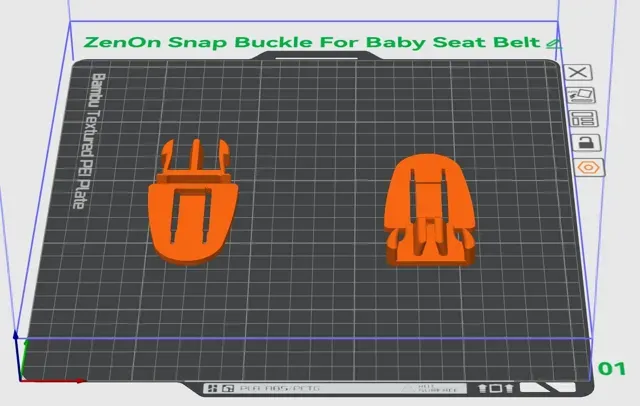

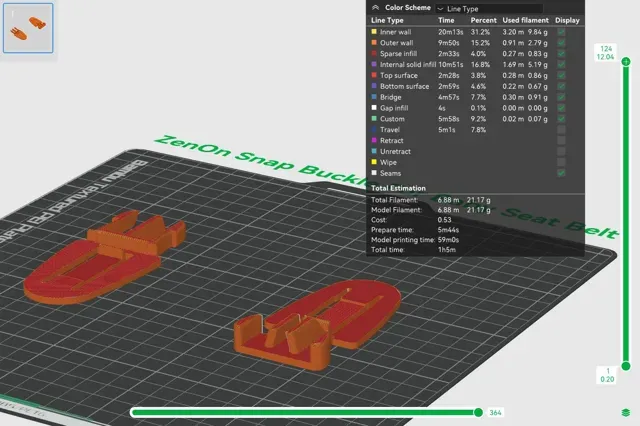

0.16mm layer, 5 walls, 15% infill - 0.16mm height - 5 walls - 15% infill gyroid - 250 degrees Celsius (PETG-HF) - speed 160mm outer and 200mm other elements for better layer adhesion and quality - print by object - fits A1 mini plate (leaves 1cm margin on sides) - this 1h and 20g model could save your kid!

All printers

P2S by object - 0.16mm layer, 5 walls, 15% infill

All printers - by layer - 0.16mm layer, 5 walls, 15% infill
