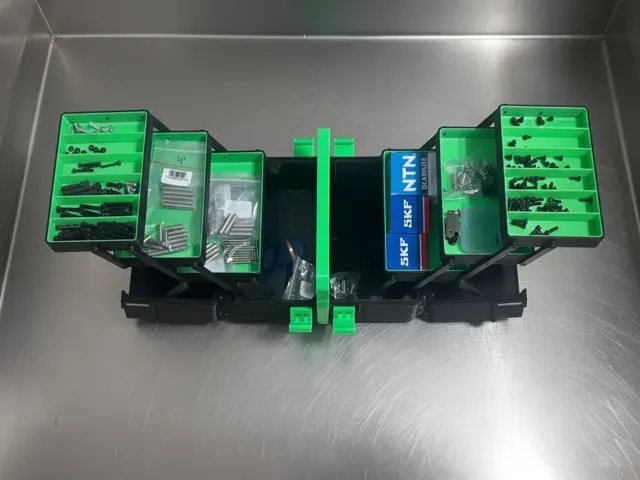

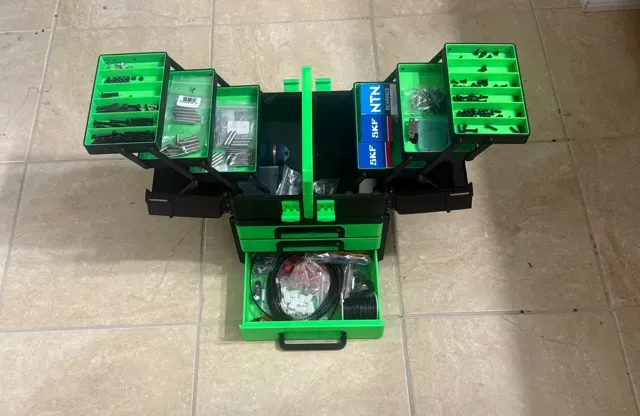

Bambu Double Cantilever Toolbox (SBox)

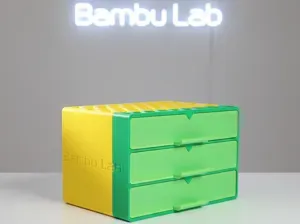

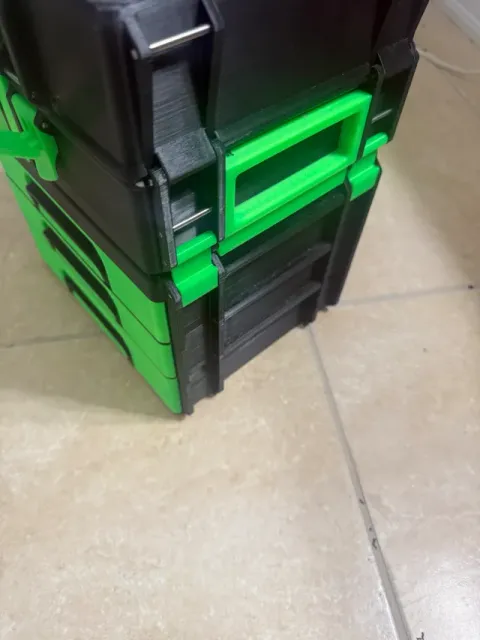

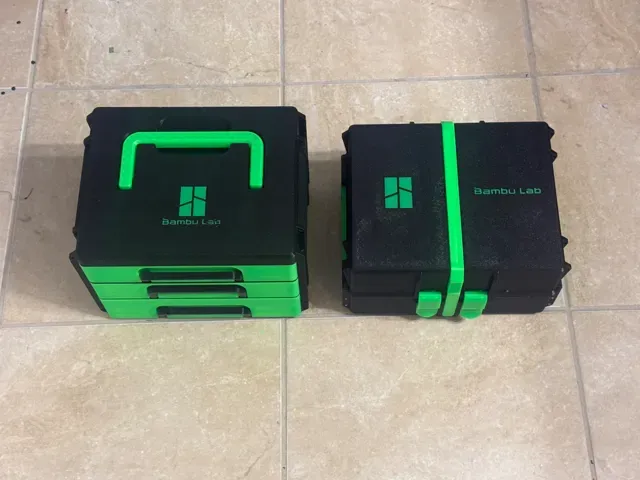

This is a double-cantilever Bambu Lab toolbox for all your DIY items. Its super sturdy and one part of a two part system, the other being toolbox chest of drawers. It has a retractable handle and the two units lock together for carry. Click here for the second part chest of drawers toolbox.

The profile is “0.2mm strength” but you can change it if you dont plan to carry anything heavy in it. The rods are printed from Nylon for best long term durability, but you could print them from another filament if you dont have any Nylon on hand. I suggest you turn off the AUX fan to prevent warping as the toolbox uses most of the build plate. I added a Bambu Logo to the lid and optimized everything into one easy to print profile. There is a BOM at the bottom for all the items needed for assembly. Make sure to use the 3mf file to get all the features.

list of non-printed parts

- 16 pcs - metal axis 35mm x 3mm - 8 pcs - metal axis 40mm x 3mm - 2 pcs - metal axis 25mm x 3mm(for top with handle) - 40 pcs - M3 x 6mm - 4 pcs - M3 x 10mm You can use cylindrical pins, stainless steel shafts in M3 diameter or M3 screws for the pins listed above.

All the items needed are at the BOM at the bottom.

These take some time to assemble but you get great satisfaction when they are done!

Click here for the single cantilever toolbox.

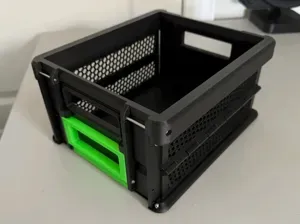

Click here for sturdy folding crate.

This remix is based on the awesome SBox toolbox by Michal Fanta, all the credit goes to him for the original design. Click here to see his other designs.
