Ford FlatHead V8 (10/14) / Intake Manifold remix

This is an Intake Manifold remix for the Ford FlatHead V8 engine. This design is planned to receive a supercharger soon.

Original engine : https://www.myminifactory.com/object/3d-print-106731

My final project :

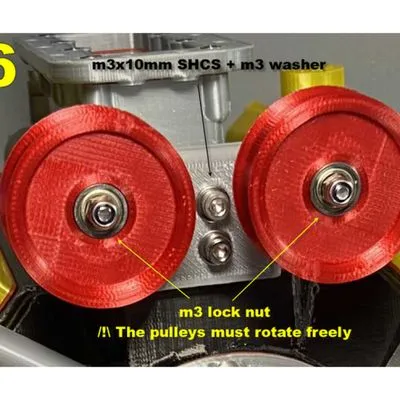

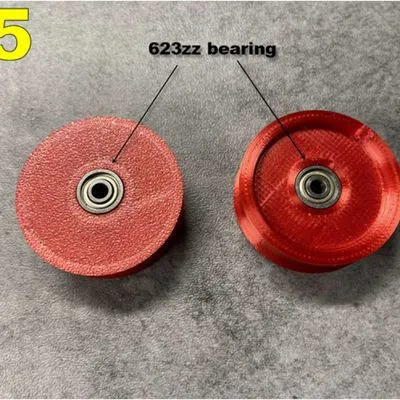

Release 24/03/2020 : New IntakeManifoldPulleyV2 (it replace IntakeManifoldPulley) with deeper groove to prevent the belt from jumping. 30/03/2020 : New IntakeManifoldPulleyHolderV2 (it replace IntakeManifoldPulleyHolder) for the correct position of the Supercharger.

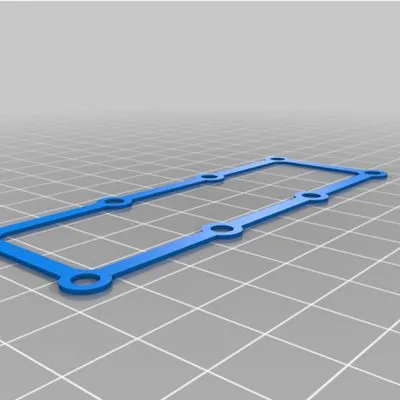

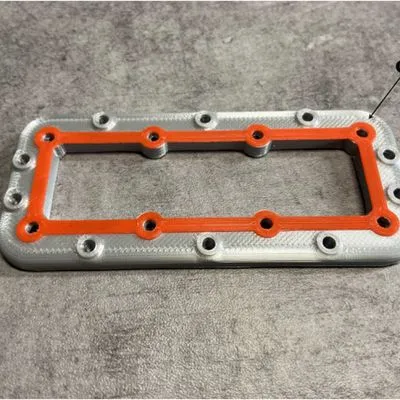

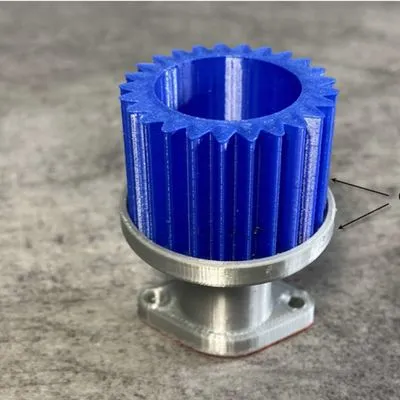

Print Settings 1 x IntakeManifold : Layer:0.15mm Raft:no Brim:no Support:yes Infill:15% 1 x IntakeManifoldGasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 2 x IntakeManifoldPulleyV2 : Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x IntakeManifoldPulleyHolder : Layer:0.15mm Raft:no Brim:no Support:yes Infill:80% 1 x IntakeManifoldTop : Layer:0.15mm Raft:no Brim:no Support:yes Infill:30% 1 x OilBreatherBottom : Layer:0.15mm Raft:no Brim:no Support:yes Infill:100% 1 x OilBreatherFilter : Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x OilBreatherGasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilBreatherTop : Layer:0.15mm Raft:no Brim:no Support:yes Infill:20% 1 x OilBreatherPipe : Layer:0.15mm Raft:no Brim:no Support:yes Infill:20%

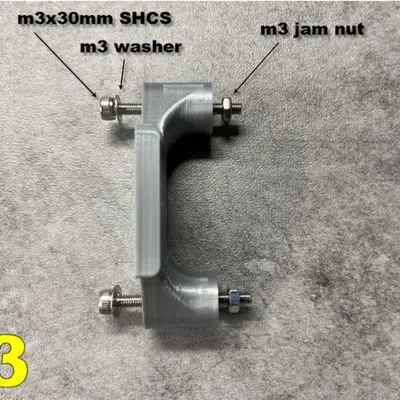

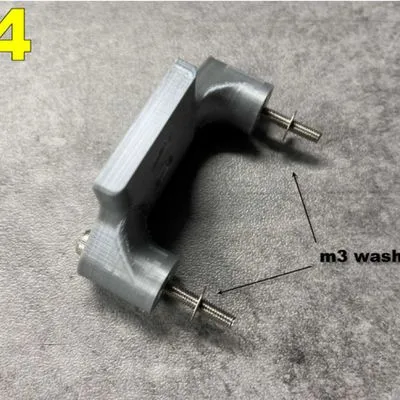

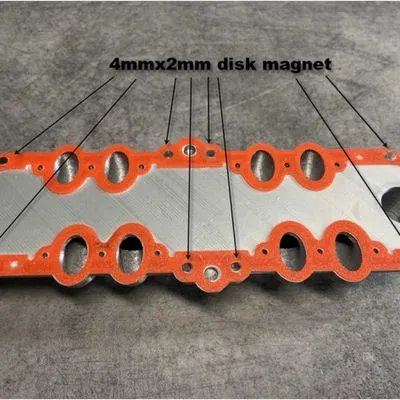

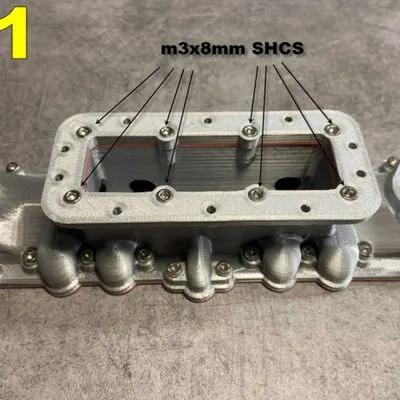

Accessories 8 x 4mmx2mm disk magnet 10 x m3 threaded insert 20 x m3x3mm SHCS 10 x m3x8mm SHCS 2 x m3x10mm SHCS 2 x m3x30mm SHCS 6 x m3 washer 2 x m3 jam nut 4 x 623zz bearing

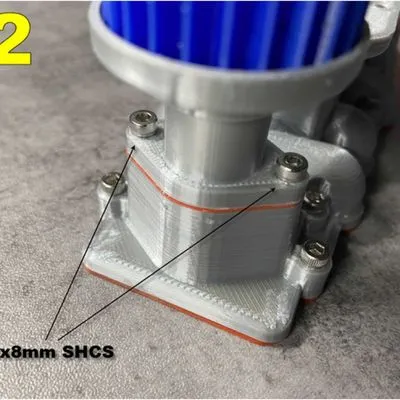

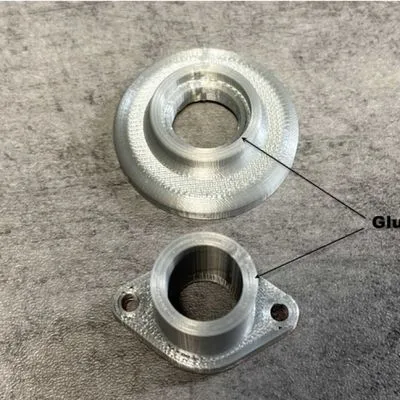

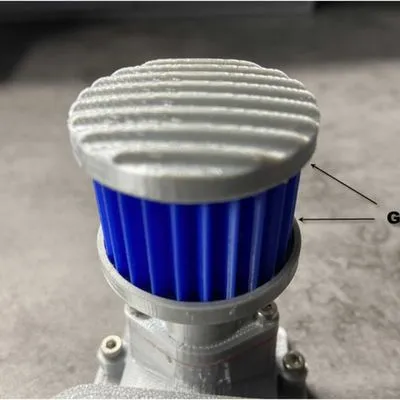

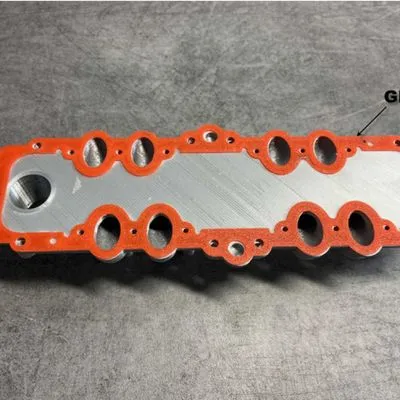

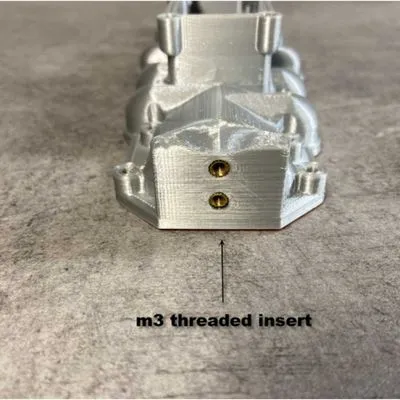

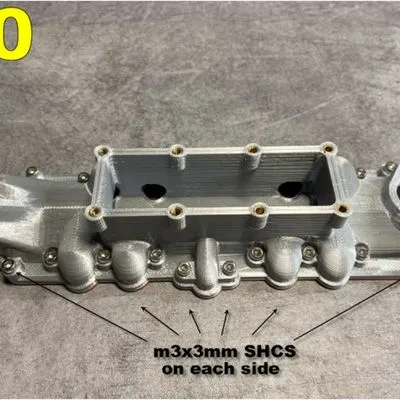

Assembly Look at pictures.

More add-ons

https://cults3d.com/en/design-collections/dancan13f/ford-flathead-v8-engine-add-ons
