Kindle Basic (11th Generation) - 2022 Protective Case

Kindle Basic (11th Generation) - 2022 Release Protective Case

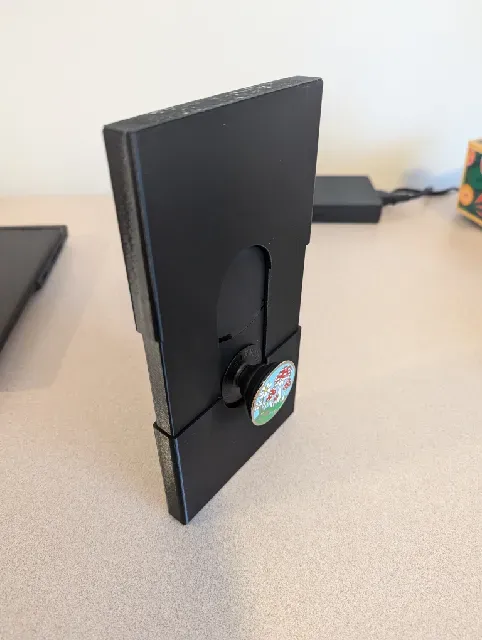

This model is a case that you can put your kindle in before throwing in a bag or pocket. It can't be used while in the case, but it will keep it protected during transport.

I suppose it has a really specific use case – a kindle basic with a Pop Socket directly in the center…

It features a cut out at the bottom where the power button is as to not accidentally press it when bouncing around.

I adjusted the tolerances to work perfectly for my printer… the lid is pretty tight at first and loud when opening/closing, but after using it it will get quieter and still stay tight enough to stay on. The inside is just loose enough for the Kindle to not bounce around but not too tight as to scratch the Kindle when putting it inside.

I've also uploaded a looser tolerance version (untested) which adds an extra 0.05mm tolerance to each inner wall incase the original is too tight to function. If you need additional adjustments, message me and I may be able to fix it for you or send you a link for the Onshape document.

----------------------------------------------------------------------------------------------------------------

Printed on MK3s+, printed vertically (open sides up) as to not require support.

Used a brim and glue stick on plate to ensure it wouldn't fall over (maybe not required).

Used 0.2 (Quality) preset in PrusaSlicer with the only change being to add a brim.

Infill doesn't really matter, I went with 15% and 2 outside perimeters.
