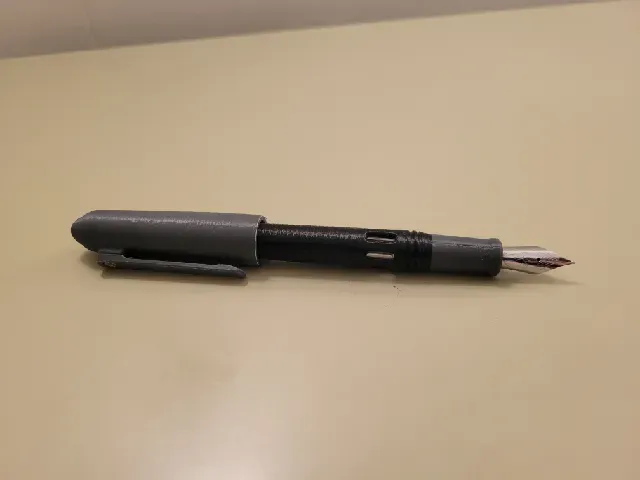

Jowo #6 fountain pen with cap liner

Based on my previous model https://www.printables.com/model/747037-jowo-6-fountain-pen

This is a fountain pen that uses a Jowo #6 nib unit & Standard International Cartridge/converter. You will have to purchase those separately. I recommend the Opus 88 units available from JetPens, but any Jowo #6 housing should work.

The clip is installed with one M2.5 flat head screw 6mm long such as McMaster-Carr part 92010A016

I like to chase the threads with a M7.5x0.5 tap. It helps if you're printing with an Ender 3. With a printer like the Bambu, when I tested it, no tap was needed.

Tough PLA works best as regular PLA can be brittle.

Print with a 0.4mm nozzle max. Adaptive layer height down to 0.1mm because there's fine detail on all of the parts. Your printer needs to be well-calibrated to print this accurately.

I like to run the calibration cube here before I run a set of pens to check my flow. https://www.printables.com/model/81314-flow-calibration-cube

Print all parts with the largest flat face down and use a brim on all except the clip. No support should be necessary. Print them one at a time for the best result to reduce stringing. You will need to deburr/chamfer the bottom edge with a sharp knife or sandpaper just to ensure a proper fit and removal of the brim.

Because the print will still be somewhat porous and not seal as well as a traditional resin, I've found that Private Reserve Infinity Inks work best. Dipping the section to fill is not recommended since the section will absorb and stain. I prefer to syringe-fill converters or use cartridges.

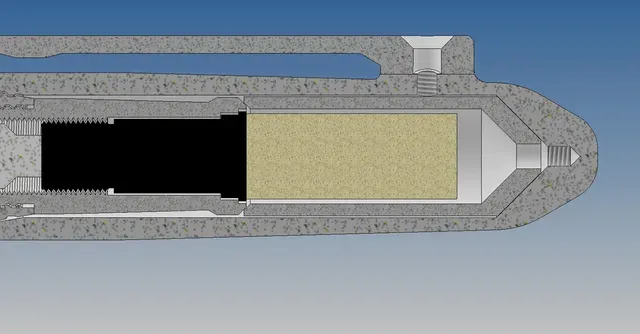

This model includes a new cap liner which can be printed in a softer material such as TPU in 90-95 Shore A. After printing, secure it with a M2.5 screw inside the cap.

Nib https://www.jetpens.com/Opus-88-Fountain-Pen-Nib-JOWO-6-Medium/pd/31472

Converter https://www.jetpens.com/Schmidt-K5-Fountain-Pen-Converter/pd/14478

Screw https://www.mcmaster.com/92010A016/

Optional Tap https://a.co/d/gLraTUo or https://a.co/d/6wNBDB9

My preferred material: https://a.co/d/eajXGC3

Alternate material which holds up better to abuse https://a.co/d/1mE55Dd
