Hinge Lock mod for Bambu Lab P1S/X1 front door 270° hinge upgrade

Minor add-on mod for @jakadel's Bambu Lab X1/P1s 270° hinge

This add-on mod if for the original model (required):

https://www.printables.com/model/1002569-bambu-lab-p1sx1-front-door-270deg-hinge-upgrade

by: @KarlisJakade_1964934

A link to a video of @jakadel's hinge (in black) with my mods (in yellow) that prevents the factory hinges from shifting:

https://www.instagram.com/reel/DACmmOXt9LS/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==

I really liked @jakadel's 270 hinge, beautiful design, but it really bothered me that on occasion I had to adjust the hinges to get the doors to close.

If you don't have this problem you can skip this mod.

These are two extra parts that prevent the hinge from shifting while you open and close the door. This does not require dissembling @jakdael's hinge and can be installed in less than five minutes. This is an easy mod, two prints that will print in under an hour and install in less than five minutes. BUT this will require that you replace the four M3x5mm (I originally used M3x8mm) screws. For this mod you will need four M3x12 (maybe M3x10mm) screws.

Installation:

IMPORTANT - Download, print and install the @jakdal's 270 Deg Hinge (link above) first. After it is fully installed and functional proceed to the steps below.

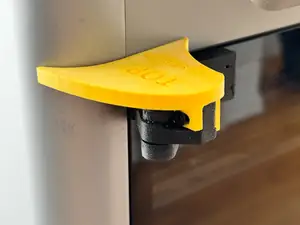

Download this Mod and print the two parts The two parts are clearly labeled TOP and BOT and which side is up.

1. Close the door completely, this will expose the screws on the side that hold @jakdal's 270 hinges to the original hinge plates.

2. Start with the top hinge. Remove the two screws and slide on the top mode. Now use the two M3x12 screws to secure.

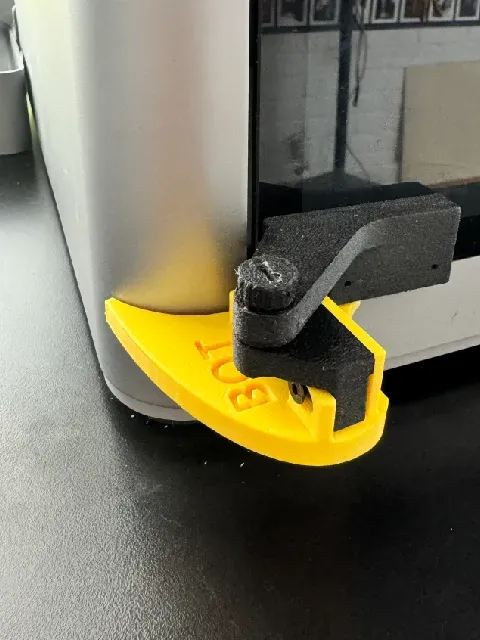

3. Repeat step 2 for the bottom hinge. Please note proper orientation as shown in the photos.

*NOTE* Don't over tighten the screws to get this retrofit to work. The plastic is pretty thin under the screws, there was not much clearance. This is not perfect but it works great for me, maybe it will give @jakadel some ideas for his next version. Any feedback on how well this does or does not work for you would be appreciated.
