Ring Camera Doorbell Mobile Home Trailer Siding Mounting Kit

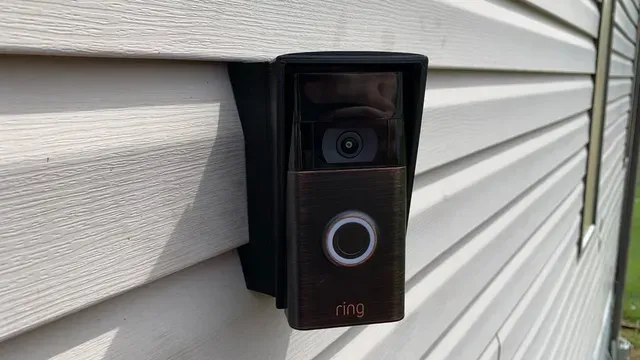

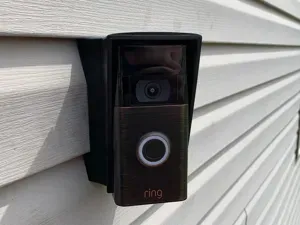

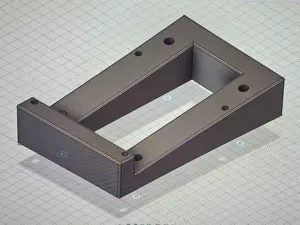

This is an easy to print mounting kit for a Ring Doorbell. Works with Ring Doorbell models 1 and 2. I designed the mount myself to custom fit my siding on my mobile home. The angled mounts and rain cover are altered versions (original links below) that fit together nicely. Pictured is the mount, 45 degree angle, and rain cover. I have also included a CADD profile of my siding. Please ensure that your siding measurements match prior to printing. The files have been exported in MM. I used some small wood/cabinet screws to assemble everything.

Angled Mounts: https://www.thingiverse.com/thing:3500665

Rain Cover: https://www.thingiverse.com/thing:5240779/files

Post-Printing

Assembly

You will need to assemble everything in layers. I recommend assembling everything at least once before mounting.

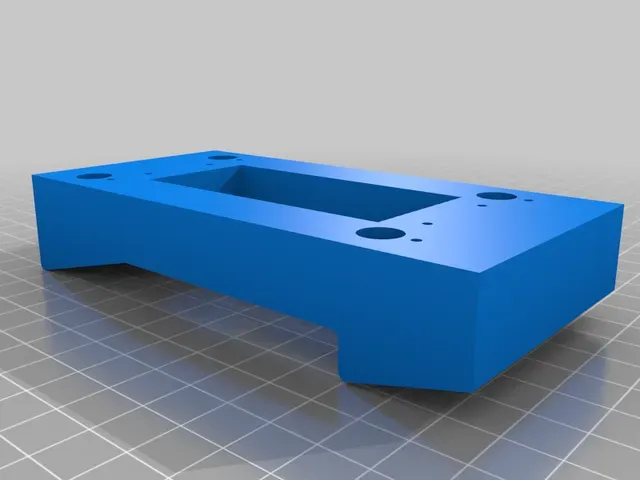

- Start with the mount. Ensure that it fits your siding and then attach it using wood screws. Use the recessed holes for mounting to your siding.

- Then attach the desired angle to the mount. If you do not want an angle, skip this step.

- Then attach the rain cover. . If you do not want a rain cover, skip this step.

- Then attach the Ring mounting plate. Ensure the the doorbell has enough room to be removed from the mounting plate for charging before final mounting.
