Creality K1 / K1 Max Side Fan Visualizer and Sound Reducer

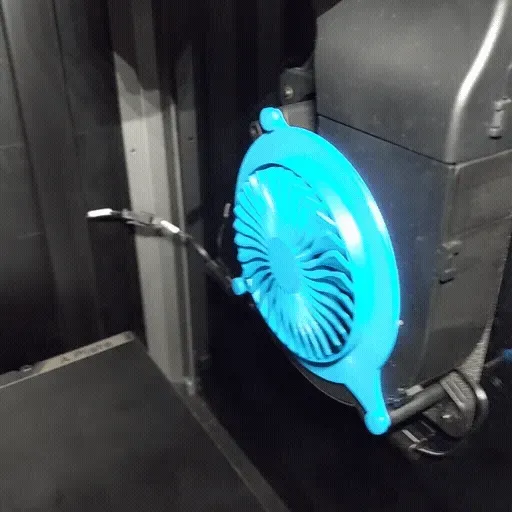

Description : This 3D printable model is designed to enhance both the look and functionality of the Creality K1 and K1 Max printers. Mounted on the side fan intake, this fan visualizer spins as the fan operates, offering a visually pleasing effect while also reducing fan noise for a quieter printing experience. The design requires no supports, is easy to print, and includes 4 parts: • Fan • Base • 3 x 3D printable screws • 608 bearing (commonly used in fidget spinners)

- Pros : • Sleek and aesthetic visual design • Fun fan visualizer • Reduces noise during fan operation

- Cons : • Slight impact on airflow (minimal)

- Recommended Print Settings (Creality Print) : • Layer height: 0.2mm • Supports: None needed • Infill: 15-30% • Nozzle temperature: 220°C • Bed temperature: 50°C Using these settings will ensure a good balance between detail, print speed, and part strength. Assembly Instructions : 1. Print all parts as recommended. 2. Insert the 608 bearing into the printed fan piece. 3. Place the fan into the base, ensuring the bearing fits snugly into the base. The fan should now spin freely. 4. Mount the base onto the side fan intake of the K1 or K1 Max and secure it in place using the provided 3D printable screws.
