Ford Fiesta Phone Mount

This is a phone mount specifically designed for the Ford Fiesta MK7/JA8 models produced from 2008 to 2017. Unfortunately, the interior console design makes it challenging to fit any standard phone holder without obstructing the view or interfering with essential controls. Therefore, I created this phone holder mounting piece to fit in a location where the phone won't be a distraction. I have been using this mount for over a year now and am very happy with its performance.

It should accommodate nearly all phone holders that feature a ball joint on the back, as it appears to be standard for the ball to have a diameter of approximately 17 mm. If you have any other specific requirements, please leave a comment.

Here is a link to the phone holder I am using with this mount: Link to Product

Model Details:

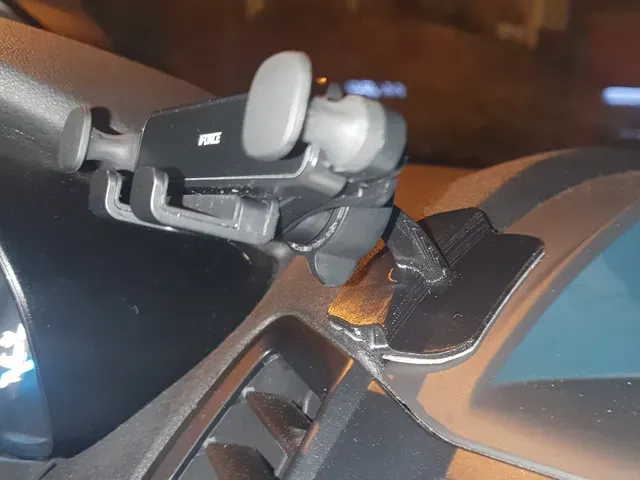

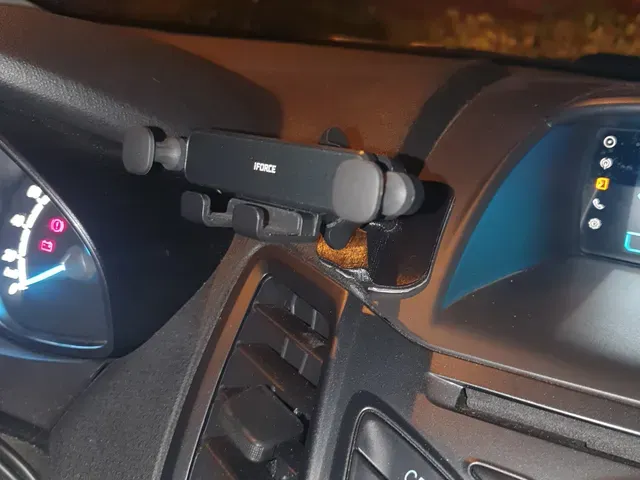

This phone mount only fits perfectly atop the left air vent . I have also uploaded a .STEP file in case you want to modify the design yourself.

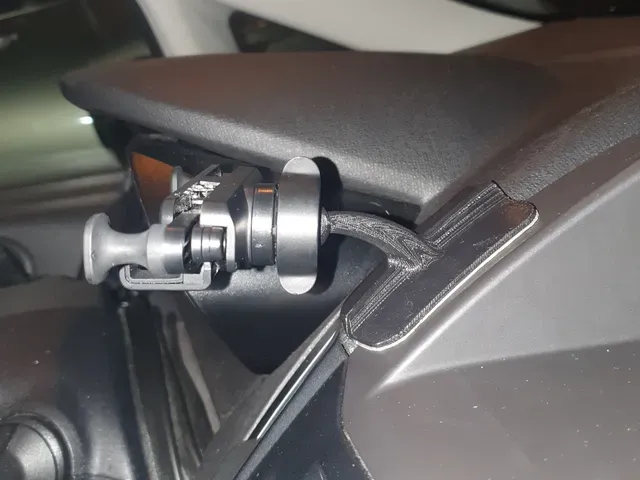

The phone mount can be secured using double-sided tape on the bottom (as seen in the pictures). Additionally, both sides can be fastened together with an M3x10 mm screw, though this is optional!

Printing Advice:

- Print with a layer height of 0.2 mm. - Mirror the design for use in left-hand traffic vehicles. - Print with heat-resistant materials if you want to use it in hot environments. PETG should do the job quite well especially if you print it solid. I have used some leftover nylon and it performed excellent even in italian summer heat!
