How to print the Mandalorian helmet -> size S, M, L and 3D print settings

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-ND
Только некоммерческое использование с указанием автора и без изменений модели.
Форматы
STL
  • 4 168 Лайки
  • 23 048 Загрузки
  • 95 Напечатали
  • 128 Комментарии
  • 102 995 Просмотры

Автор:stevenmarx

Опубликована

Описание

Using TheBrokenNerd83's design ( https://www.thingiverse.com/thing:3578797 ), I printed the helmet in different sizes and tried to use as little support structure as possible. I share my experience with you in the video.

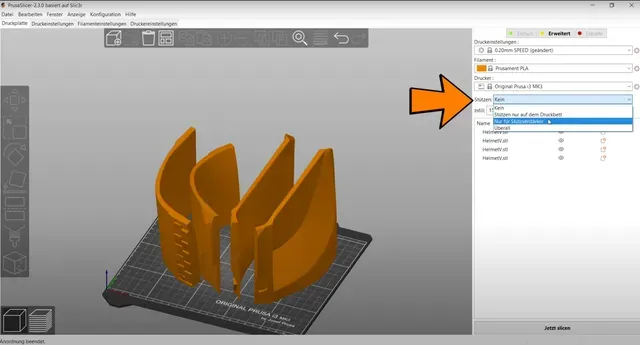

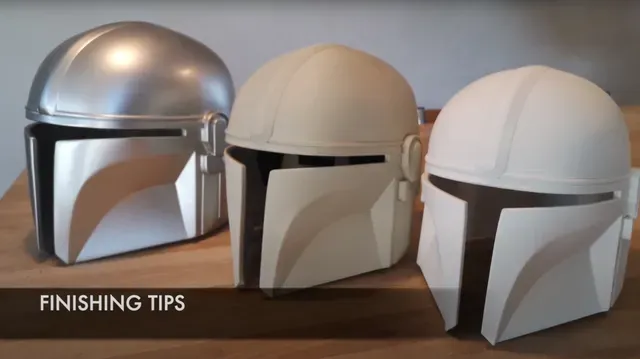

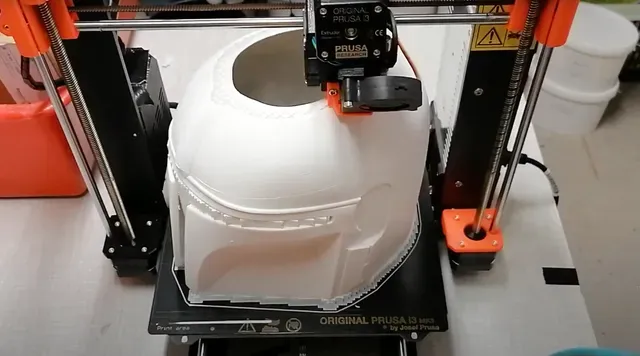

This Video shows you how and with which settings you can print with a Prusa i3 MK3 the right size of the Mandalorian helmet and how to finish it. Small, Medium and Large, fast and in good quality -with as little support structure as possible.

Mando helmet sizes

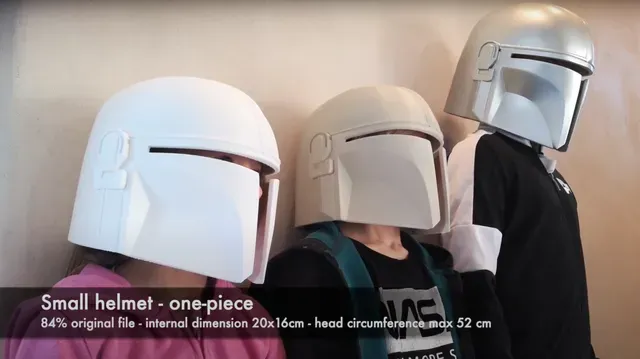

- Large: 100% original size - Inside dimensions 24x20cm - Head circumference up to max 59cm - Six-piece with sparing - Medium: 91% original size - Inner dimensions 22x18cm - Head circumference up to max 54cm - Three-piece without support structure in the middle - Small: 84% original size - inner dimensions 20x16cm - head circumference up to max 52cm - One-piece without support structure in the middle The Mandalorian Helmet Design by TheBrokenNerd83 https://www.thingiverse.com/thing:3578797
