Dual E3Dv6 40mm fanduct - Modular x carriage Taralu - TEVO Tarantula

I'm working on a second printhead for my Tarantula since I've earn a nice complete E3Dv6 head - I had taralu parts modular_X_dual_E3DV6 - so let's order the second E3DV6 and see what I can do with a dual E3DV6 head....

First issue : the noozles can't reach the bed...my X axis is on mgn12H rail - solution : cut the "tail" (aluminium taralu part) on the head bracket (see picture for cuted side) and mount it under the x-modular-carriage - and it will touch - the part works as well if you don't need to cut the bracket.

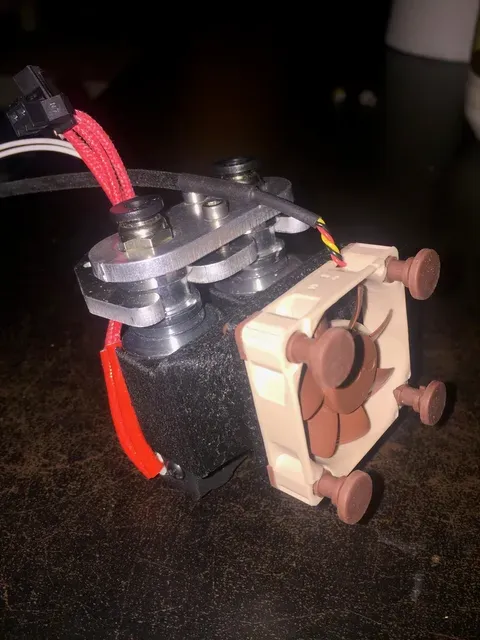

Second issue : Q) what is more noisy than a 30 mm fan? A) two 30 mm fans - so I designed this part....printed it with a glass reinforced nylon (260/280°C hummmm) strong and just a little pliant : perfect for my dual clips... and with a noctua 40 mmm single fan that's a little much more quiet.

Thanks for reading

Print Settings

Printer Brand:

TEVO

Printer: Tarantula

**Rafts:**

No

Supports: No

**Resolution:**

0.15

Infill: 20

Notes:

Model on pic is printed with nylon/glass filament
