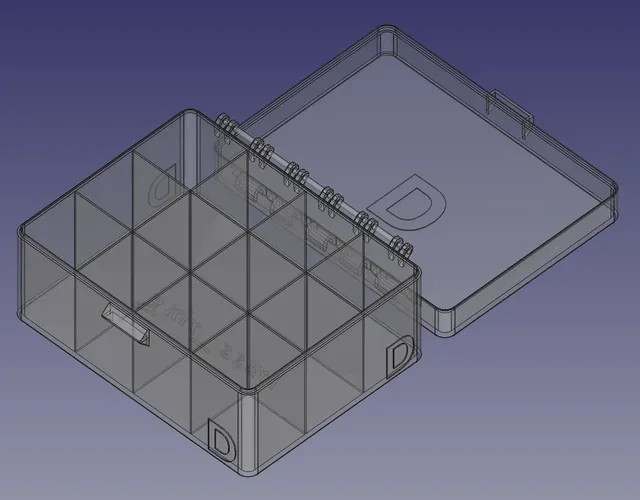

D Battery Box, Snap Hinge

This version has these improved features:

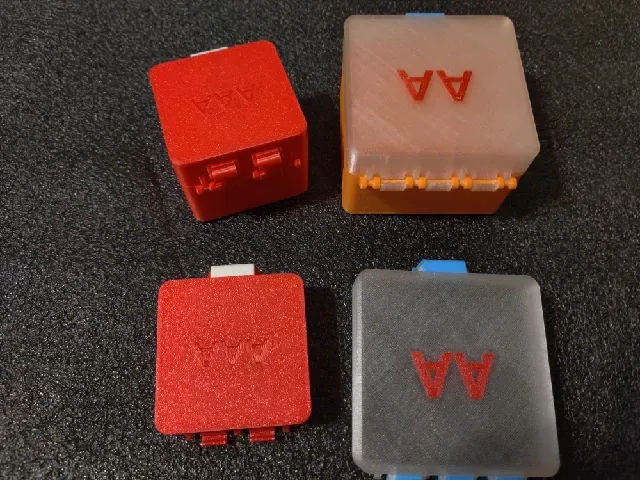

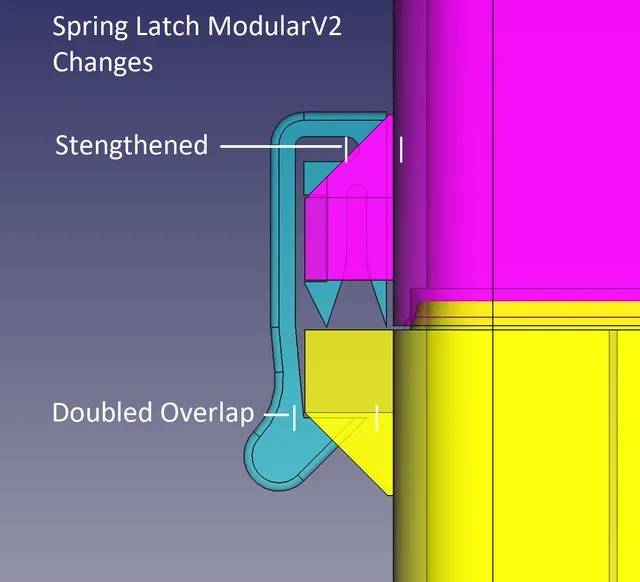

- hinge that snaps the box to and bottom together - two box tops - one that prints as a single part and one that is stronger, but requires simple assembly - ramped front catch - text for multicolor Look in https://www.printables.com/social/261776-brass_ring/collections/224415 for other sizes.

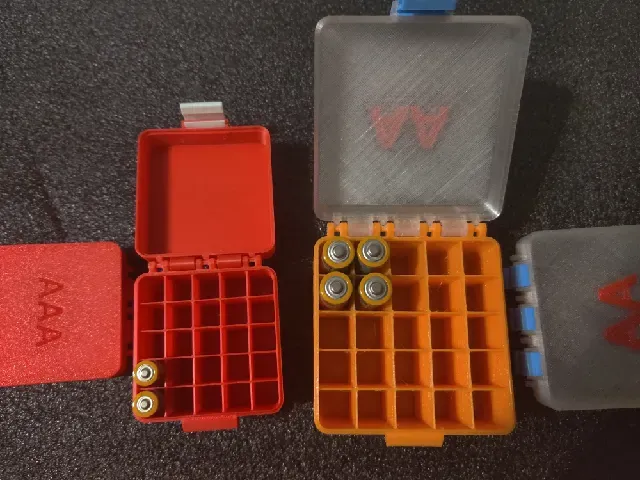

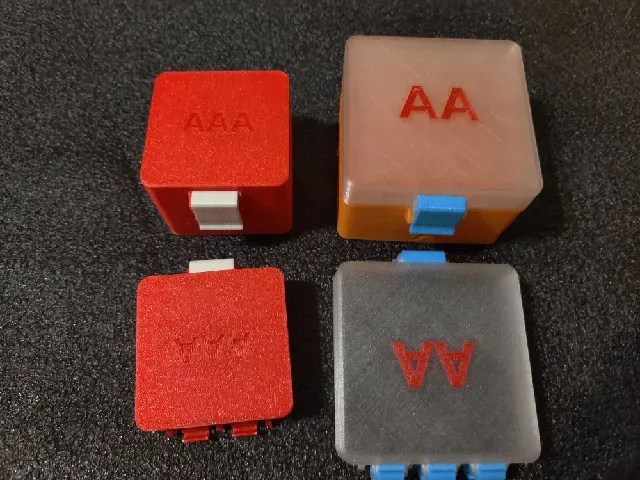

These battery boxes are printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.

The box halves require moderate infill (10%-20%) and can be printed with no supports - except for the single part top. Optionally, you can paint on supports under the flat sections on the latch bracket, and the latch catch. I printed the box halves and latch with 0.2 layer height in PLA. I recommend PETG for the single part top.

Assembly instructions: See the attached PDFs
