C270 Logitech camera mounts for Prusa Mk3S(+) and Bear frames

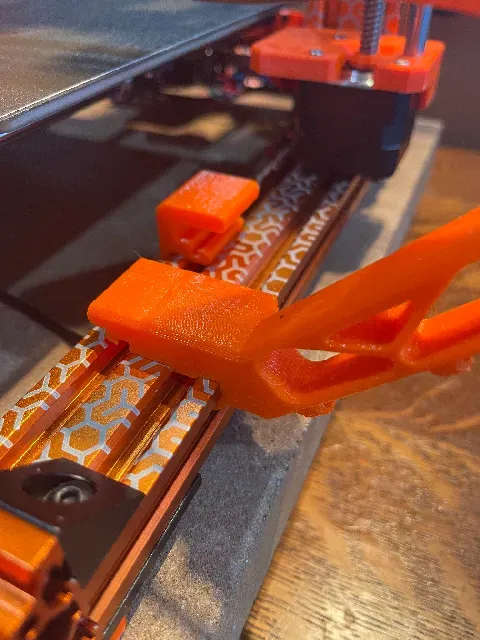

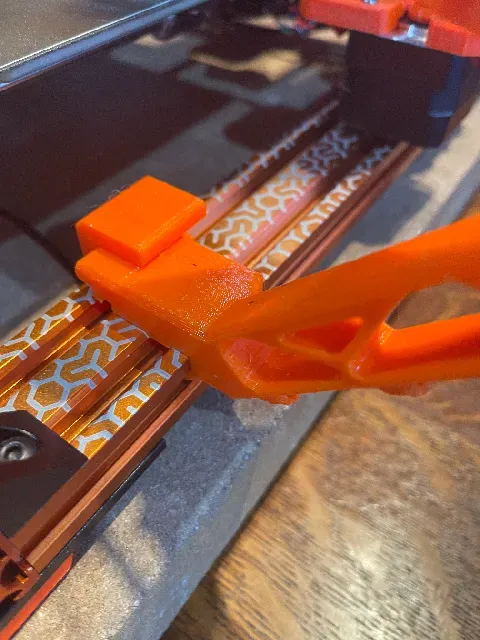

The Arm and Bracket parts slide together after clipping them onto the extrusions. See photos.

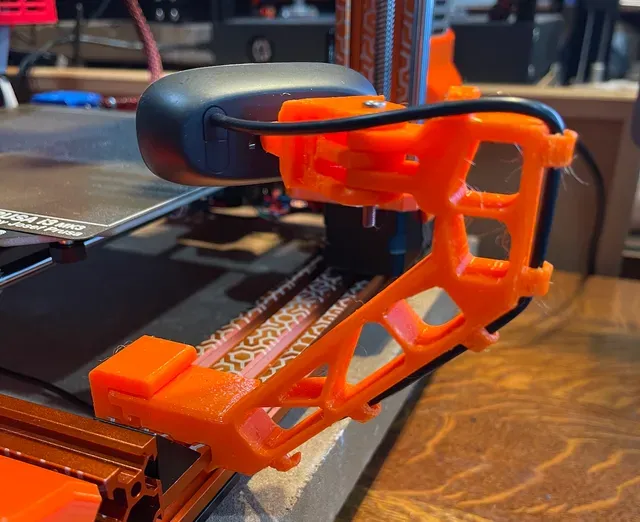

The C270 camera mount tilts and swivels to provide complete control over camera placement.

I have provided 6 different camera mount positions for the Prusa MK3(S/+) and Bear frames. There are three heights (Short, Medium, & Tall) and two lengths (Close & Far).

If you like my designs, please consider supporting me on Patreon: https://www.patreon.com/MediaMan3D

Short-Close (SC): C270 Camera - Prusa MK3 Arm-SC.stl C270 Camera - Prusa Bear Arm-SC.stl

Medum-Close (MC): C270 Camera - Prusa MK3 Arm-SC.stl C270 Camera - Prusa Bear Arm-SC.stl

Tall-Close (TC): C270 Camera - Prusa MK3 Arm-TC.stl C270 Camera - Prusa Bear Arm-TC.stl

Short-Far (SF): C270 Camera - Prusa MK3 Arm-SF.stl C270 Camera - Prusa Bear Arm-SF.stl

Medum-Far (MF): C270 Camera - Prusa MK3 Arm-MF.stl C270 Camera - Prusa Bear Arm-MF.stl

Tall-Far (TF): C270 Camera - Prusa MK3 Arm-TF.stl C270 Camera - Prusa Bear Arm-TF.stl

There are two retaining brackets, one small, one large for the camera mount parts to secure the camera to the mount and the arm to the printer frame.

The Small bracket is used with the Prusa MK3 arms. The Large bracket is used with the Prusa Bear arms.

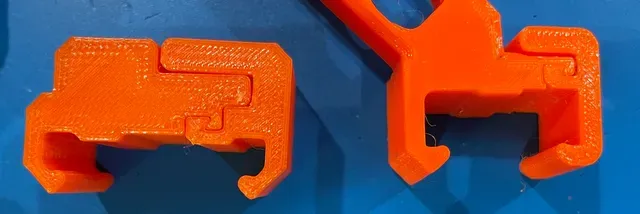

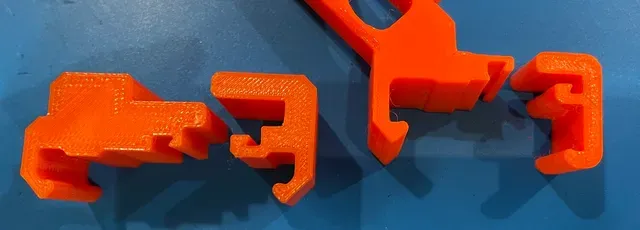

Pictures added to show how they mate together to wrap around the frames.

The Camera Mount uses one M3 x 20mm screw (no nut needed) to mount to the Arm and one M3 x 25mm screw to mount the camera (no nut needed).
