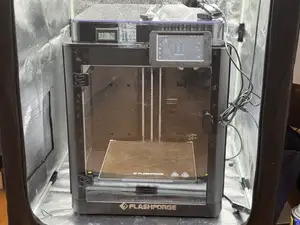

Flashforge AD5M Minimal Enclosure

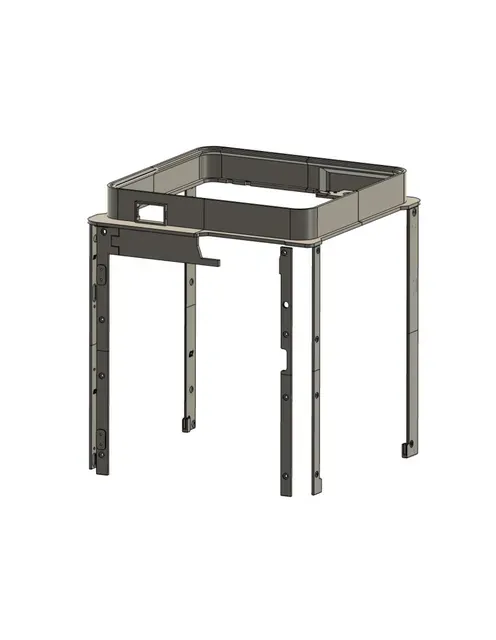

FF AD5M minimal enclousure; Compatible with OG enclosure kit, no modification required

I also added thermal insulation on two side panels. Chamber temp reaches 100F when printing PETG @ 75C / 245C

Printed parts using 0.6mm nozzle w PETG @ 2 layers (Alternate extra wall disabled) w 5% infill, approx 570g filament used and works perfectly.

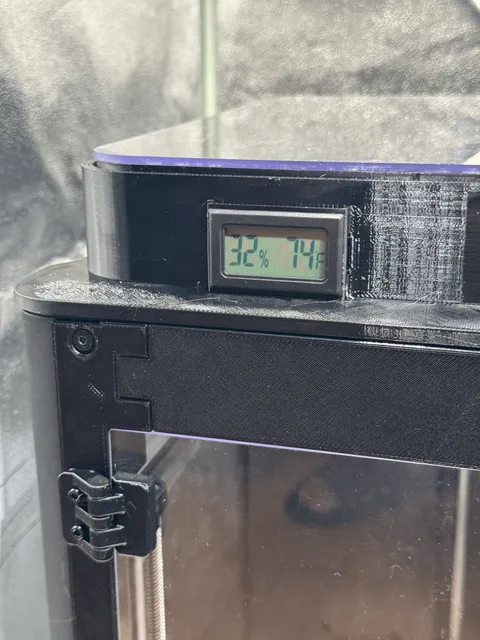

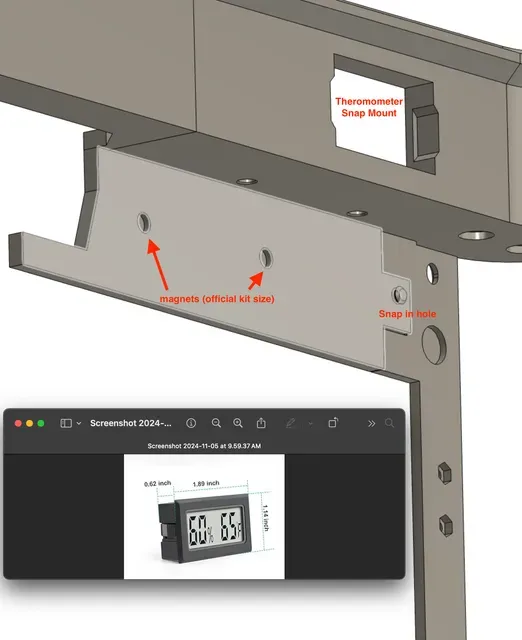

You can snap a thermometer on it, the cheapest one on Amazon fits. Files also include no-mount version.

Top parts are connected using duct tape, not elegant but very simple and effective.

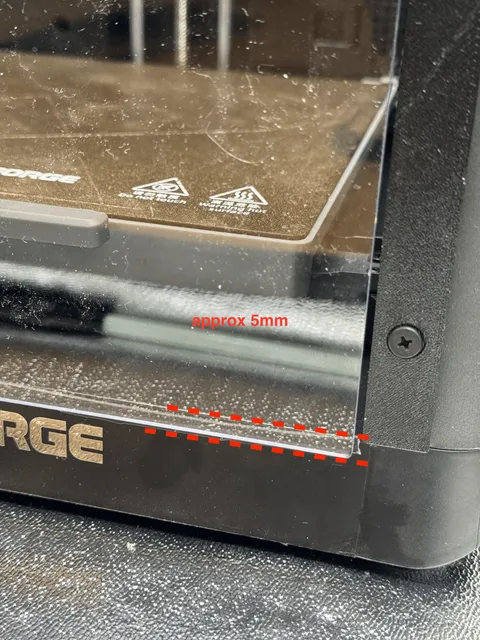

I lowered the front door 5mm so it rattles against the bottom frame (no affect on the assembly and performance); adding a small foam/rubber pad will solve the issue.

Step file only includes my mod parts, no printer frame in the step, pls download from FF website
