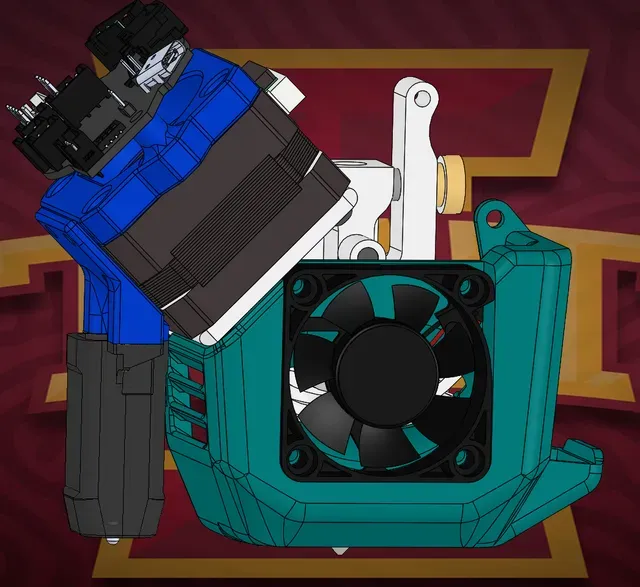

Microswiss NG CR Touch with EBB36 Mount

Parts Needed:

- M3 Heat Set Inserts x6 - Four for the probe mount - Two for the EBB36 - M3x25mm screws x4 - For attaching the EBB36 Mount to the extruder motor - M3x6mm screws x2 - For attaching the probe to the probe mount - M3x8mm screws x4 - Two for attaching the EBB36 - Two for attaching the probe mount to the EBB36 mount Print Settings:

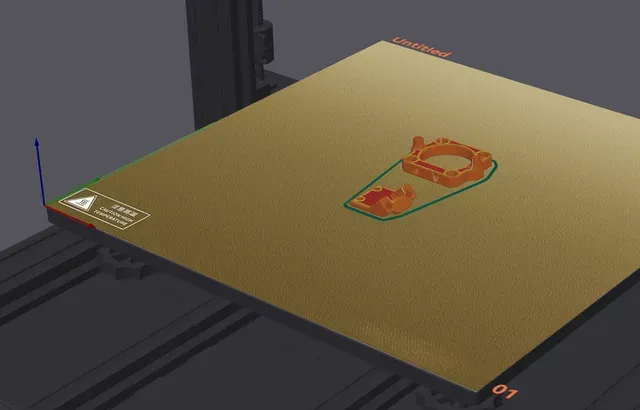

- 4 Walls - No supports - 10% Infill (or whatever you choose) - PETG, ABS, or ASA Probe offset:

- X: 47.04mm - Y: 15.6mm - Z: 3.34mm DISCLAIMER:

THE OFFSETS ARE CALCULATED FROM THE MODELS IN SOLIDWORKS. YOUR RESULTS MAY VARY.

YOUR Z OFFSET WILL BE SLIGHTLY DIFFERENT. HOWEVER, 3.34mm WILL BE A GOOD STARTING POINT.

I AM NOT LIABLE FOR ANY DAMAGE CAUSED TO YOUR PRINTER/BUILD PLATE IF MY VALUES ARE USED. USE MY VALUES AT YOUR OWN RISK.
