Drill Dust Collector V2

NEW MODEL, WITH ADDITIONAL FEATURES: https://www.printables.com/model/1193300-drill-dust-collector-v3

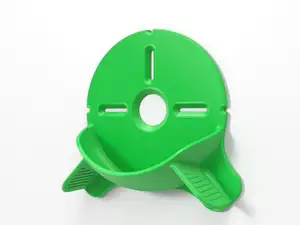

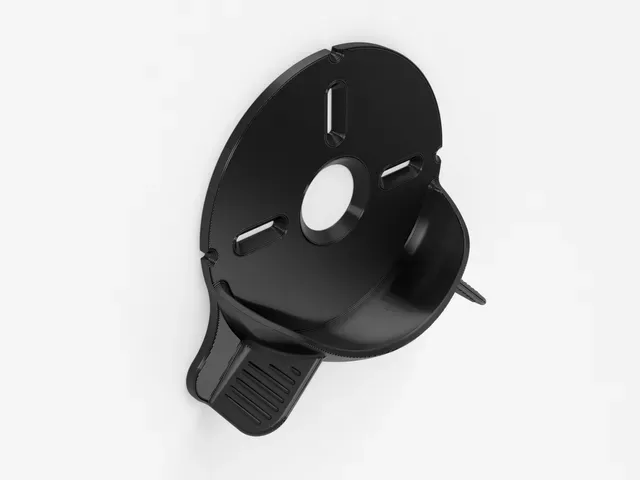

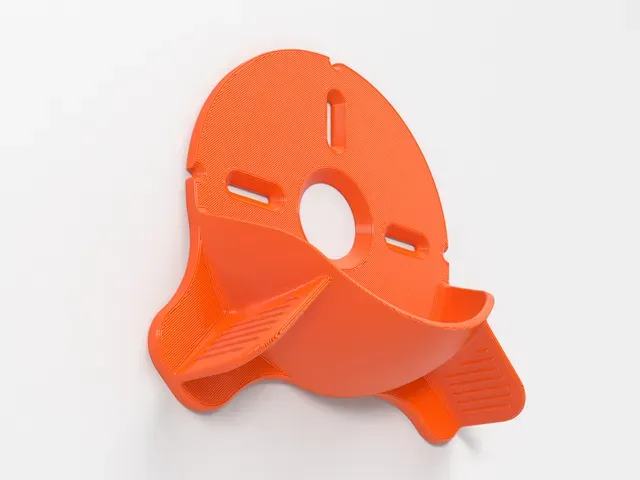

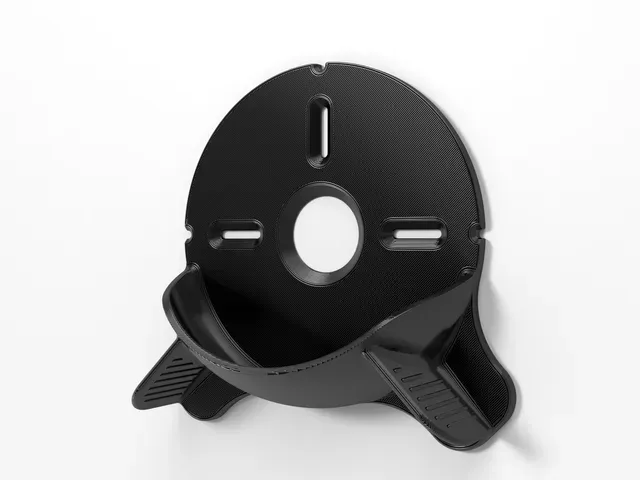

Drill Dust Collector with Centering and Marking Features V2.

The drill dust collector is an innovative accessory designed to collect dust during wall drilling with a drill. This device has several functional features:

- Centering slots : It is equipped with slots that help precisely locate the center of the marks made on the wall, ensuring accurate drilling. - Universal hole : It includes an 20 mm diameter hole, compatible with a wide range of drill bits, offering versatility. Additionally, the hole has a chamfer to allow dust to slide directly into the cavity. - Marking grooves : The perimeter of the device features grooves that allow marking with a pencil, in addition to the centering slots, further facilitating the preparation process for drilling. - Functional design : The dust collection cavity has a fitting that prevents dust accumulation and facilitates cleaning. - Ribbed wings : The new version features two wings with raised lines to ensure an optimal grip during drilling. This accessory not only keeps the work area clean but also improves the precision and efficiency of drilling work.
