BTT HDMI 5" Display (Portrait or Landscape) Sovol SV06 and SV06 Plus on Steroids

Upgrade Your Sovol SV06/SV06 Plus Displays

We're excited to announce three versatile display options to enhance your Sovol SV06 and SV06 Plus 3D printers. the design includes a front cover , back cover , and mount , all designed for a seamless fit.

Display Options

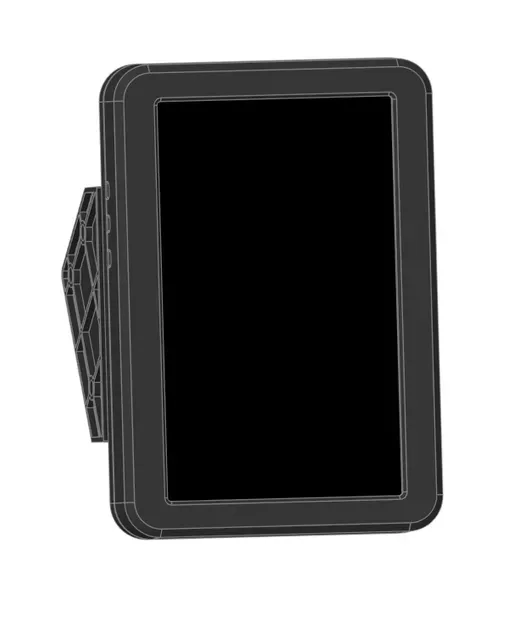

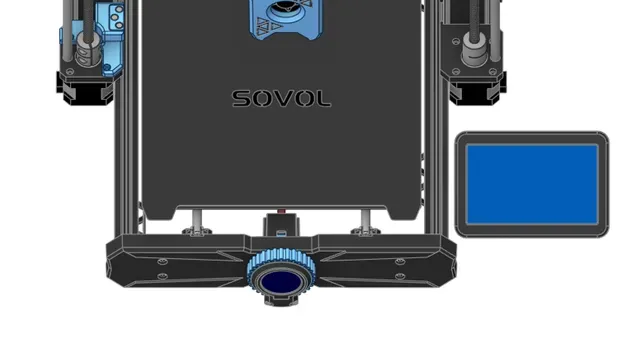

BTT HDMI 5" Display (Portrait or Landscape)

- Available in Portrait or Landscape orientation (similar to the SV06 ACE). - Purchase Link: BTT HDMI 5" Display Print Settings

- Walls : 3 - Top Layers : 5 - Bottom Layers : 5 - Layer Height : 0.2 mm Assembly Instructions

Hardware Requirements

- Use the original screws to mount the stand-display holder. - M3 Heat Set Inserts : - 3 x heat set Inserts (4.5 mm OD, 4 mm long) for the back cover to secure it to the stand. - 3 M3x10mm screws for the back cover attachment. Mounting Details

BTT HDMI 5" Display :

- Snap-fit front cover after securing the display in to the back cover for easy installation. Part of the Sovol SV06 on Steroids Build

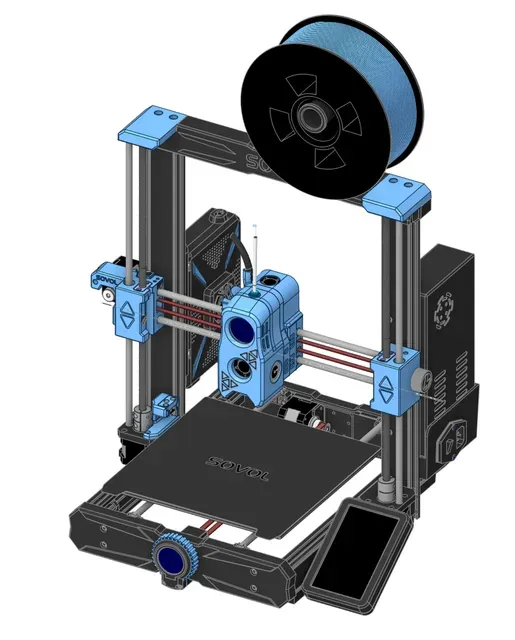

These display designs are an integral part of the Sovol SV06 on Steroids series. Explore the other components of this ultimate upgrade:

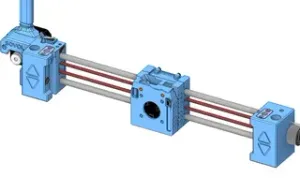

- XenoSix Toolhead for the SV06 and SV06 Plus on Steroids - Z and X Gantry for the SV06 Plus on Steroids - Z and X Gantry for the SV06 on Steroids - BTT TFT35 SPI V2.1 Display for Sovol SV06 and SV06 Plus - BTT Manta M4P https://www.printables.com/model/1086891-btt-manta-m4p-for-sovol-sv06-and-sv06-plus-on-ster Elevate your Sovol SV06 or SV06 Plus to a whole new level. Let us know if you have questions or need further support!
