Ball hinge Back Panel Camera Case for Raspberry Pi Zero 2W

This is a customized remix designed to side-mount the back panel of a camera case for use with the Raspberry Pi Zero 2W on MK4s printers. It merges the back panel from the camera case by @sh4q_872172 with the ball hinge mount by @David_84304 , providing a sturdy and adjustable mounting solution.

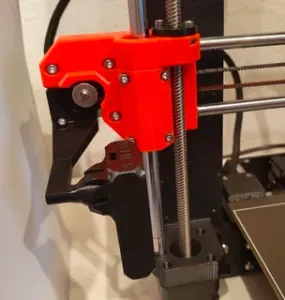

I created this model to relocate my Raspberry Pi Zero 2W to the side of my printer for better viewing angles. It’s fully compatible with the MK4s RPI/ESP32 Cam Mount from @Redstone_2399783 , making it ideal for Raspberry Pi Zero 2W setups.

Features:

- Designed specifically for the back panel of a Raspberry Pi Zero 2W camera case. - Side-mount design for improved positioning and functionality. - Integrated ball hinge for flexible adjustment. - Compatible with the MK4s RPI/ESP32 Cam Mount . Print Settings:

- layer height: 0,2mm - perimeter: 3 - infill: 15% - material: PETG - Face down with support - Support: Snugg with 0.23 Top contact Z distance - Might need to play with elephant foot compensation as it's printed face down.
