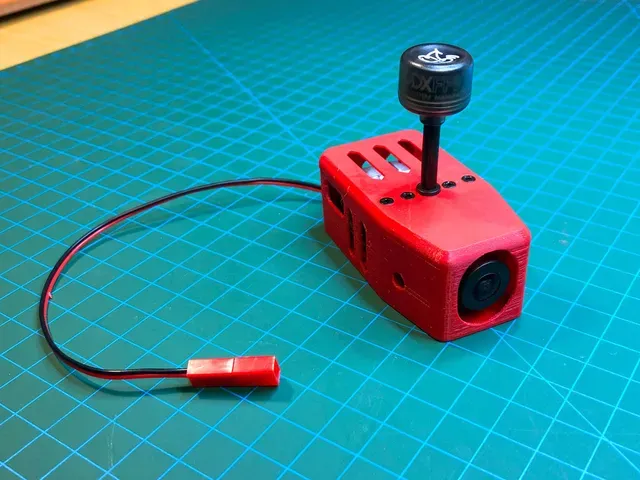

Caddx Vista Digital FPV Pod

This case turns the Caddx Vista DJI Digital FPV Air unit into a self contained FPV pod that can be attached to any RC aircraft or ground vehicle.

I use Velcro to attach mine to RC planes.This allows me to convert just about any plane to FPV in a matter of seconds.

It requires 4 M2x5mm (or M2x6mm) counter sunk screws for assembly. Printed with 15% infill the total weight is about 12g, including the screws.

This is version 2 of the design that allows access to the USB port without removing the vista air unit from the pod.

Print Settings

Printer Brand:

Prusa

Printer: i3 MK2S

Rafts:

No

Supports: No

Resolution:

0.2mm

Infill: 15%

Filament:

Generic PLA

Category: R/C Vehicles
