Ryobi Compact Router - 4" Sliding Bevel Guide

4" Sliding Bevel Guide for Ryobi Compact Fixed-Base Router. Works on most Ryobi Routers but the model I use is #PCL424B

The guide gives you an adjustable straight edge for routing the edges of wood. No more free-handing bevels and chamfers!

Requirements:

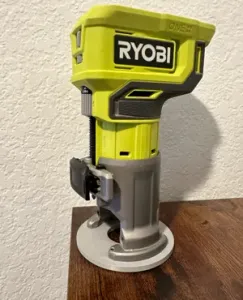

- 4" Square Base for Ryobi Compact Router - 4 10mm (Or Longer) M5 Screws and M5 Washers This attachment is screwed into the 4" Square Base linked above. It includes a 2" ruler measuring from the center of the router, allowing you to fine-tune the distance you want to route from.

Threading the M5 screws through the Square Base the first time will take a bit of force, but this ensures the Bevel Edge Guide is firmly affixed. Slightly loosen each screw to allow the guide to slide back and forth, set the distance, then re-tighten the screws when you're ready to route! For very short distances, use the center holes present on the Square Base as your Slider attachment points.

Recommend printing in PETG for durability, but it will work fine with PLA. Print with a brim and preferably in an enclosure as PETG prints of this size are prone to warping. 100% infill recommended to adequately allow screw tightening without deformation.
