BMW M3 E36 Coupé Kit Card (1:24 scale)

Summary

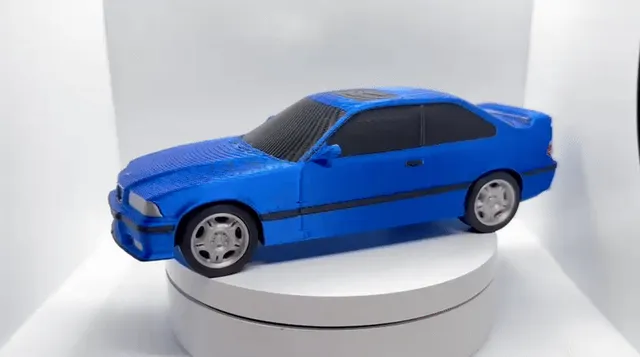

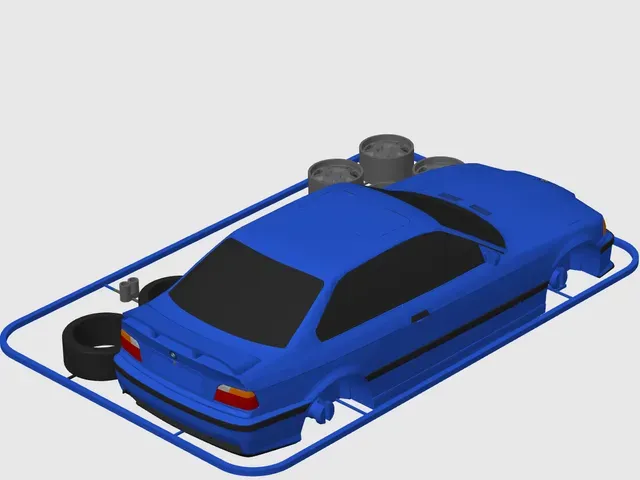

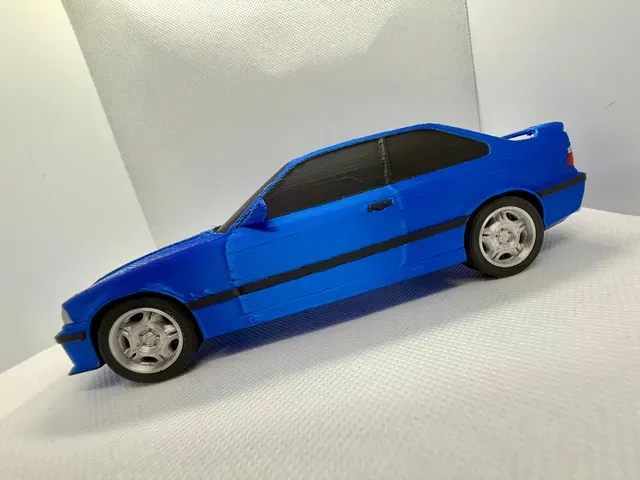

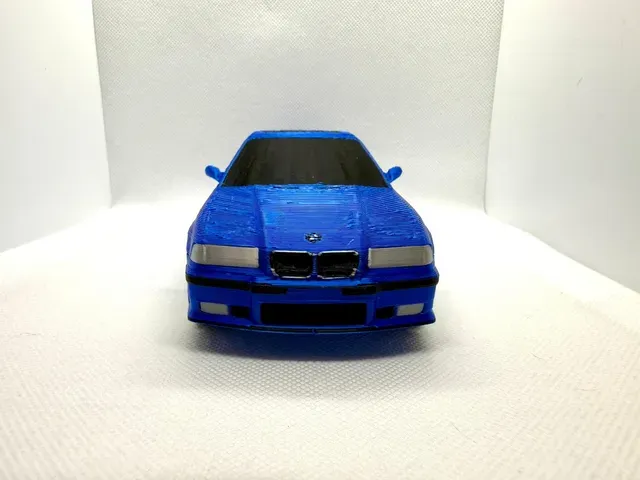

This is a model of a BMW M3 Coupé (E36) in a kit card style. Some characteristic details can be discovered. Equipped with separate exhaust ;-) After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll.

Versions

The complete set is available in a 3MF file for a one-color print. There is a 3MF-file with predefined colors intended for users of AMS or MMU. Otherwise, the chassis, rims & exhaust and the tires must be printed separately.

Print

Print with 0.15 layer hight or lower to bring up the details. No supports are needed. Use 3 perimeters and 10% infill.

Post processing

The small struts can be removed really quickly and cleanly using a side cutter. Please remove the predesigned supports under the front axle and under the spoiler.

Assembly

The kit is easy to assemble. All parts fit together very well. Use some grease for the hole in the rim so that the wheel turns more easily. If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24)

The fully assembled model has the following dimensions Height: 56.5mm Depth: 184.5mm Width: 75mm (including side mirrors)

The complete kit card has the following dimensions when printed Height: 46.5mm Depth: 191.3mm Width: 127.5mm

Scaling will work in a low range due to the tolerances.
