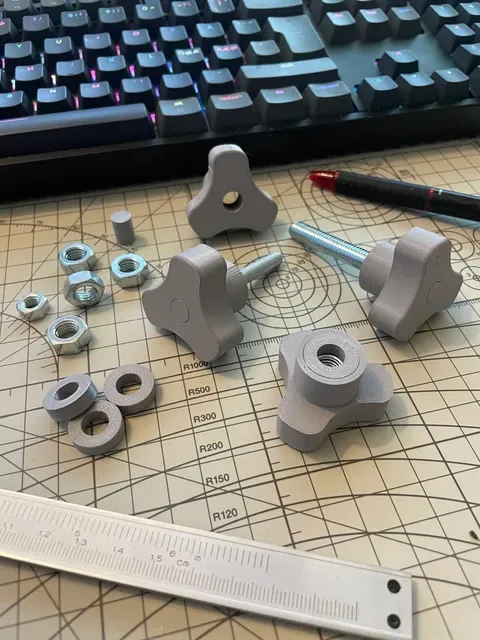

All-in-One – Triangle Knob / Star Knob for M6 & M8 bolt or nut

All-in-One – Triangle Knob / Star Knob for M6 & M8 bolt or nut.

Choose if you want to use an M6 or M8 bolt or nut. It comes with a cover cap if you don't need the through-hole. This knob is super convenient since you don’t need to print different knobs for different uses

You can easily reuse this knob, whether you want a threaded bolt or a nut.

PETG is the best material for this, and print with a 0.2 mm layer height .

If printed correctly, the cap and adapter should click into place and stay firmly. If you want to remove a plug or adapter, use a bolt to push them out.

Choose which parts you want to print:

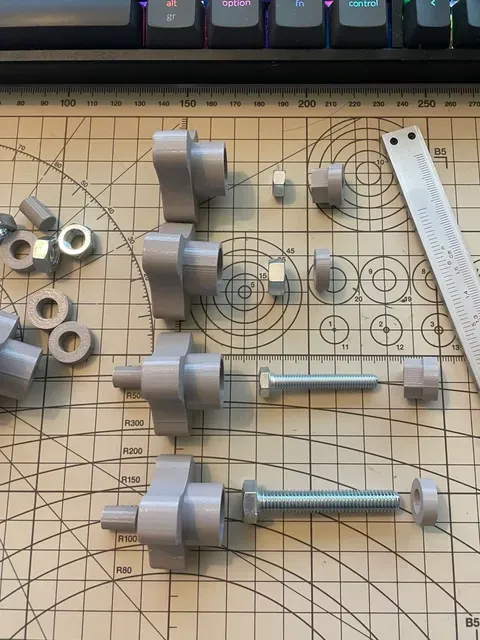

- M8_knob – The knob itself. - Holder – Used to secure a bolt or nut. - Cap – Use this to cover the hole in the knob if you don’t use a through-screw. - Cap_Short - Use this to cover the hole in the knob with a shorter version. - M6_adapter – Use this if you prefer to use an M6 bolt/nut with your knob.

Printer settings

Printer: Prusa Supports: No Layer height: 0.2mm Infill 15% Filament: Prusament PETG

Please let me know if there are any problems with this model. I will be happy to help. I would really appreciate it if you could upload a make to show what spectacular creative idea you have used it for.
