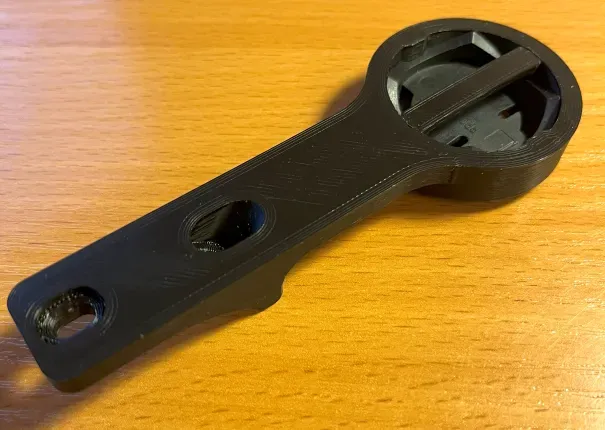

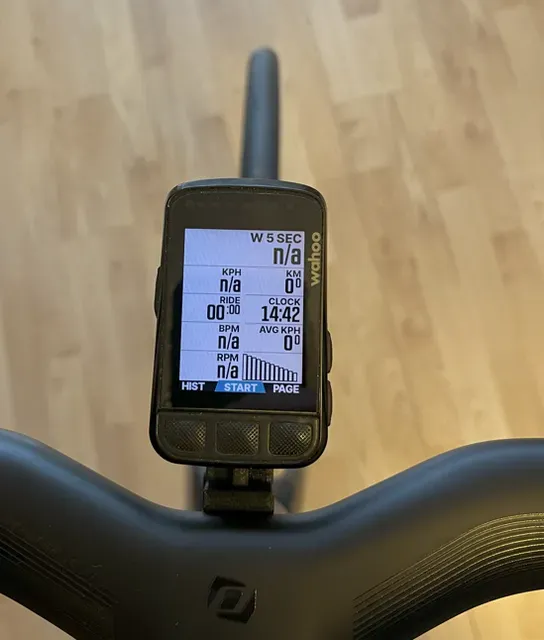

Wahoo\Garmin mount for Scott Creston IC handlebar + GoPro mount

Wahoo\Garmin mount for Scott Creston handlebar. Original Wahoo\Garmin stem mount + 2x M4x14mm bolts needed.

Versions:

- Wahoo_S - short version for Bolt - Wahoo_L - long version for Roam - Garmin_L - long version for 1040 Print the mount, insert original stem mount, lock with lock pin.

Additional STL's: holder for Lezyne front blinker and utility mount for any front light.

Select proper material, I have printed with Nylon+CF and Nylon+GF.

Fusion 360 file included. For making smaller Garmin mount you will need to adjust parameter GARMIN_Length. I don't have Edge 840, etc. for testing.

For GopPro mount you will need to pause print on before layer 131 (at 0.2mm height) to insert M5 nut. 3MF file included.
